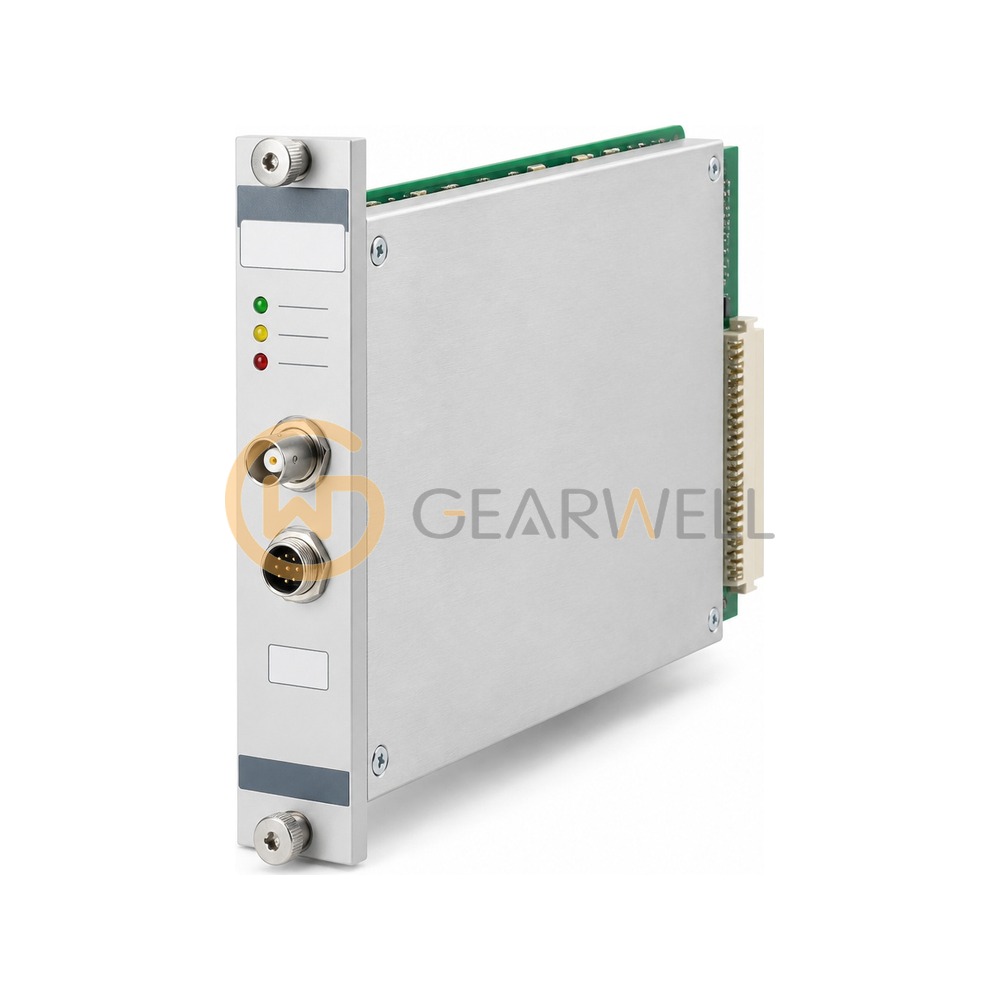

EMERSON A6120 AMS 6500 Case Seismic Vibration Monitor
- Brand
- EMERSON
- Model
- A6120
- GEARWELL SKU
- GWP-000033815
- Category
- Test & Measurement
Key specifications
- Outputs
- 0/4-20 mA and 0-10 V per channel
- Channels
- 2 (independent)
- Input type
- Electro-dynamic (electro-mechanical), differential
- Model number
- A6120
- Product line
- AMS 6500 / CSI 6500 machinery protection (Emerson, formerly epro)
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsTechnical reference
| Product name | EMERSON A6120 AMS 6500 Case Seismic Vibration Monitor |
|---|---|
| Brand | EMERSON |
| Model | A6120 |
| Category | Test & Measurement |
| Outputs | 0/4-20 mA and 0-10 V per channel |
| Channels | 2 (independent) |
| Input type | Electro-dynamic (electro-mechanical), differential |
| Model number | A6120 |
| Product line | AMS 6500 / CSI 6500 machinery protection (Emerson, formerly epro) |
| Sensor inputs | 9266, 9267, 9268 |
| Frequency range | 10 - 1000 Hz |
| Measuring range | 5 - 100 (Vrms, adjustable) mm/s |
| Power consumption | max. 6 W, 250 mA at 24 VDC |
| Input voltage range | -5 to +15 VDC |
