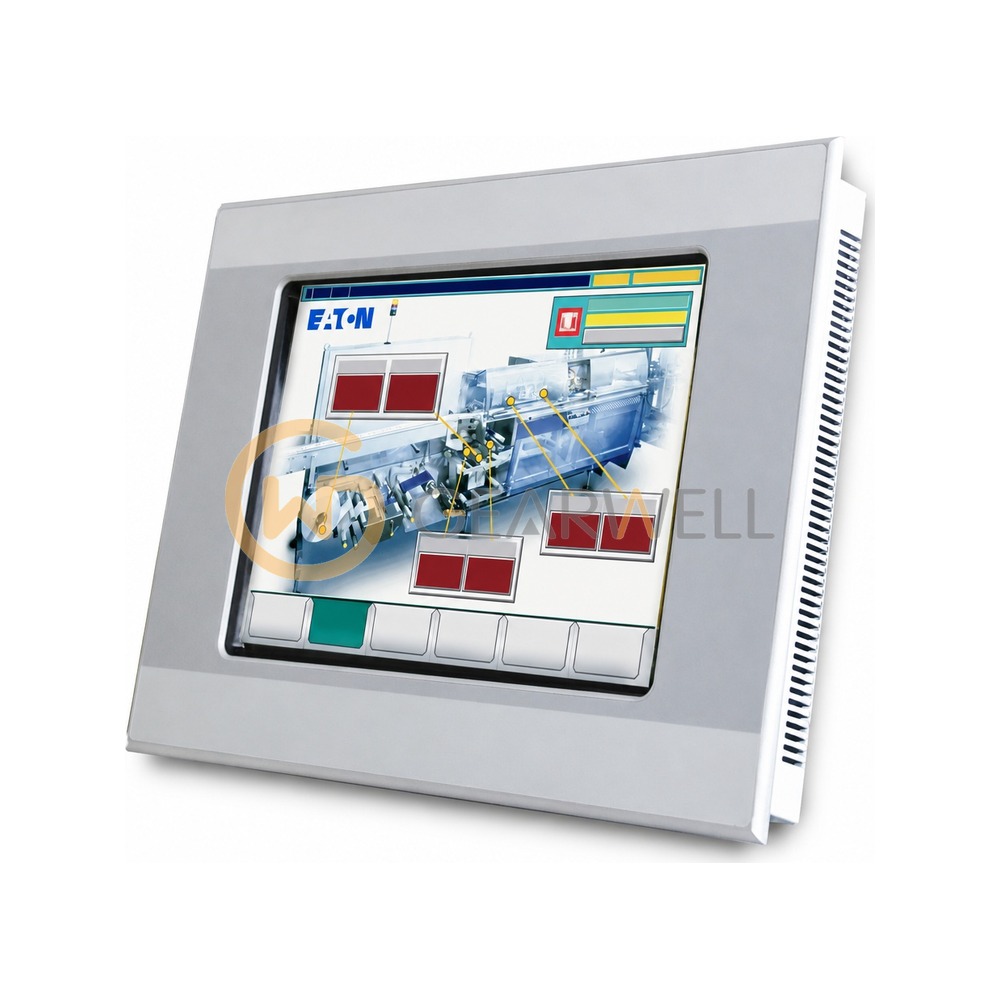

EATON XVS-440-10MPI-1-1AD XVS400 10.4in Micro Panel HMI Touch Panel
- Brand
- EATON
- Model
- XVS-440-10MPI-1-1AD
- GEARWELL SKU
- GWP-000033748
- Category
- HMIs & Industrial PCs
Key specifications
- Weight
- approx. 3.7 kg
- Display
- 10.4" TFT-LCD color, VGA 640 x 480 pixels
- Evidence
- Eaton MN04802012Z-EN (12/2014), hosted at es-assets.eaton.com
- Processor
- RISC, 32-bit, 400 MHz; DRAM 64 MByte
- Dimensions
- 260 x 345 x 67 (H x W x D) mm
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsTechnical reference
| Product name | EATON XVS-440-10MPI-1-1AD XVS400 10.4in Micro Panel HMI Touch Panel |
|---|---|
| Brand | EATON |
| Model | XVS-440-10MPI-1-1AD |
| Category | HMIs & Industrial PCs |
| Weight | approx. 3.7 kg |
| Display | 10.4" TFT-LCD color, VGA 640 x 480 pixels |
| Evidence | Eaton MN04802012Z-EN (12/2014), hosted at es-assets.eaton.com |
| Processor | RISC, 32-bit, 400 MHz; DRAM 64 MByte |
| Dimensions | 260 x 345 x 67 (H x W x D) mm |
| Interfaces | Ethernet 100Base-TX/10Base-T, RS232 system port, 2x USB 2.0 host, USB 1.1 device, PROFIBUS (isolated, max. 1.5 Mbit/s) |
| Rated voltage | 24 VDC SELV (20.4-28.8 VDC) V DC |
| Enclosure rating | front IP65 / rear IP20 |
| Type designation | XVS-440-10MPI (infra-red touch 10.4") |
| Code suffix "-1-1AD" | as collected; not listed in the official model-number table |
