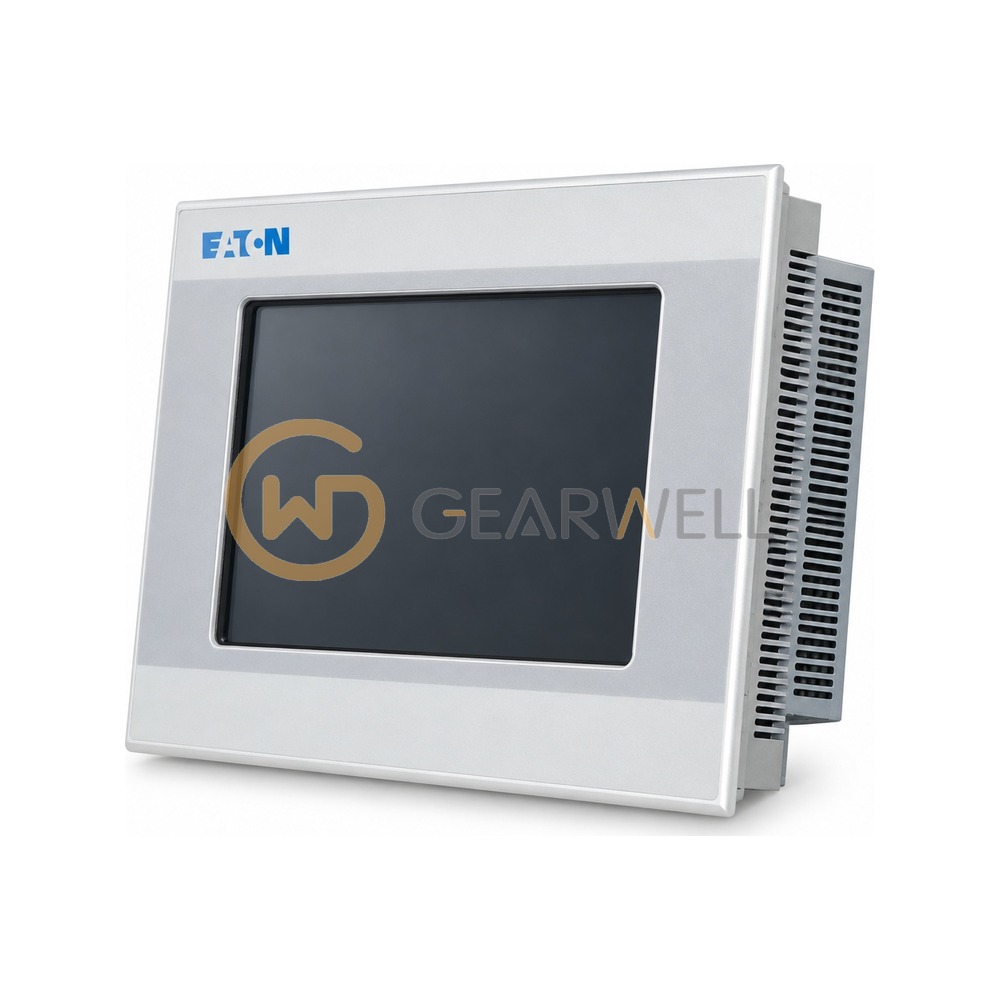

EATON XV-440-10TVB-1-20 XV400 10.4in Micro Panel HMI Touch Panel
- Brand
- EATON
- Model
- XV-440-10TVB-1-20
- GEARWELL SKU
- GWP-000033744
- Category
- HMIs & Industrial PCs
Key specifications
- Weight
- approx. 4.1 kg
- Display
- 10.4" TFT-LCD color, VGA 640 x 480 pixels
- Evidence
- Eaton MN04802010Z-EN (12/2014), hosted at es-assets.eaton.com
- Processor
- RISC, 32-bit, 400 MHz; DRAM 64 MByte
- Interfaces
- Ethernet 100Base-TX/10Base-T, RS232 system port, 2x USB 2.0 host, USB 1.1 device, CAN (electrically isolated)
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsTechnical reference
| Product name | EATON XV-440-10TVB-1-20 XV400 10.4in Micro Panel HMI Touch Panel |
|---|---|
| Brand | EATON |
| Model | XV-440-10TVB-1-20 |
| Category | HMIs & Industrial PCs |
| Weight | approx. 4.1 kg |
| Display | 10.4" TFT-LCD color, VGA 640 x 480 pixels |
| Evidence | Eaton MN04802010Z-EN (12/2014), hosted at es-assets.eaton.com |
| Processor | RISC, 32-bit, 400 MHz; DRAM 64 MByte |
| Interfaces | Ethernet 100Base-TX/10Base-T, RS232 system port, 2x USB 2.0 host, USB 1.1 device, CAN (electrically isolated) |
| Rated voltage | 24 VDC SELV (20.4-28.8 VDC) V DC |
| Type designation | XV-440-10TVB-1-2x (infra-red touch 10.4", 4-hole front) |
| Operating temperature | 0 ... 50 °C |
| Front enclosure rating | IP65 |
| Dimensions (4-hole front) | 270 x 342 x 93 (H x W x D) mm |
| Code suffix "0" (last digit) | as collected; not listed in the official model-number table (shown as x) |
