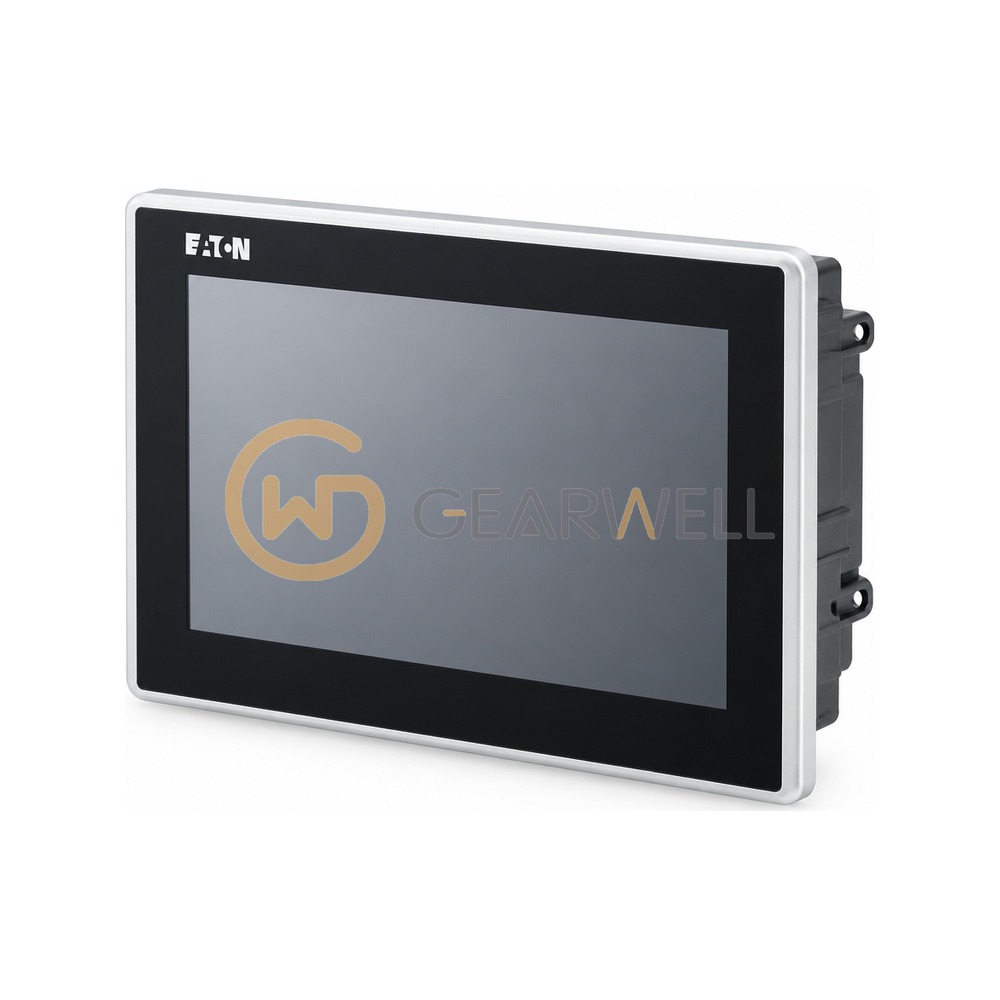

EATON XV-303-10-C00-A00-1B XV300 10.1" Multi-Touch HMI Panel
- Brand
- EATON
- Model
- XV-303-10-C00-A00-1B
- GEARWELL SKU
- GWP-000033743
- Category
- HMIs & Industrial PCs
Key specifications
- Touch
- Projected Capacitive Touch (PCT), multi-touch
- Display
- 10.1" widescreen TFT color, WSVGA 1024 x 600 pixels
- Evidence
- Eaton manual MN048017EN XV300 (07/23), part-number key Tab. 4-9 and technical data
- Type (XV-303)
- front mounting, plastic enclosure, glass panel in plastic frame
- Version (A00)
- standard version
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsTechnical reference
| Product name | EATON XV-303-10-C00-A00-1B XV300 10.1" Multi-Touch HMI Panel |
|---|---|
| Brand | EATON |
| Model | XV-303-10-C00-A00-1B |
| Category | HMIs & Industrial PCs |
| Touch | Projected Capacitive Touch (PCT), multi-touch |
| Display | 10.1" widescreen TFT color, WSVGA 1024 x 600 pixels |
| Evidence | Eaton manual MN048017EN XV300 (07/23), part-number key Tab. 4-9 and technical data |
| Type (XV-303) | front mounting, plastic enclosure, glass panel in plastic frame |
| Version (A00) | standard version |
| Interfaces (C00) | Base + 2nd Ethernet: 2 x Ethernet, 1 x RS-232, 1 x RS-485, 1 x CAN, USB host, USB device, SD card slot |
| Supply voltage | 24 V DC SELV/PELV (19.2-30.0 V DC) |
| Processor / memory | ARM Cortex-A9 800 MHz; 512 MB RAM, 1 GB SLC, 128 kB retain |
| Power consumption | max. 18 W |
| Software bundle (1B) | WEC7P, PLC function can be added later on, runtime license for GALILEO visualization software |
| Degree of protection | IP65 front, IP20 rear; NEMA 4X, NEMA 12 |
