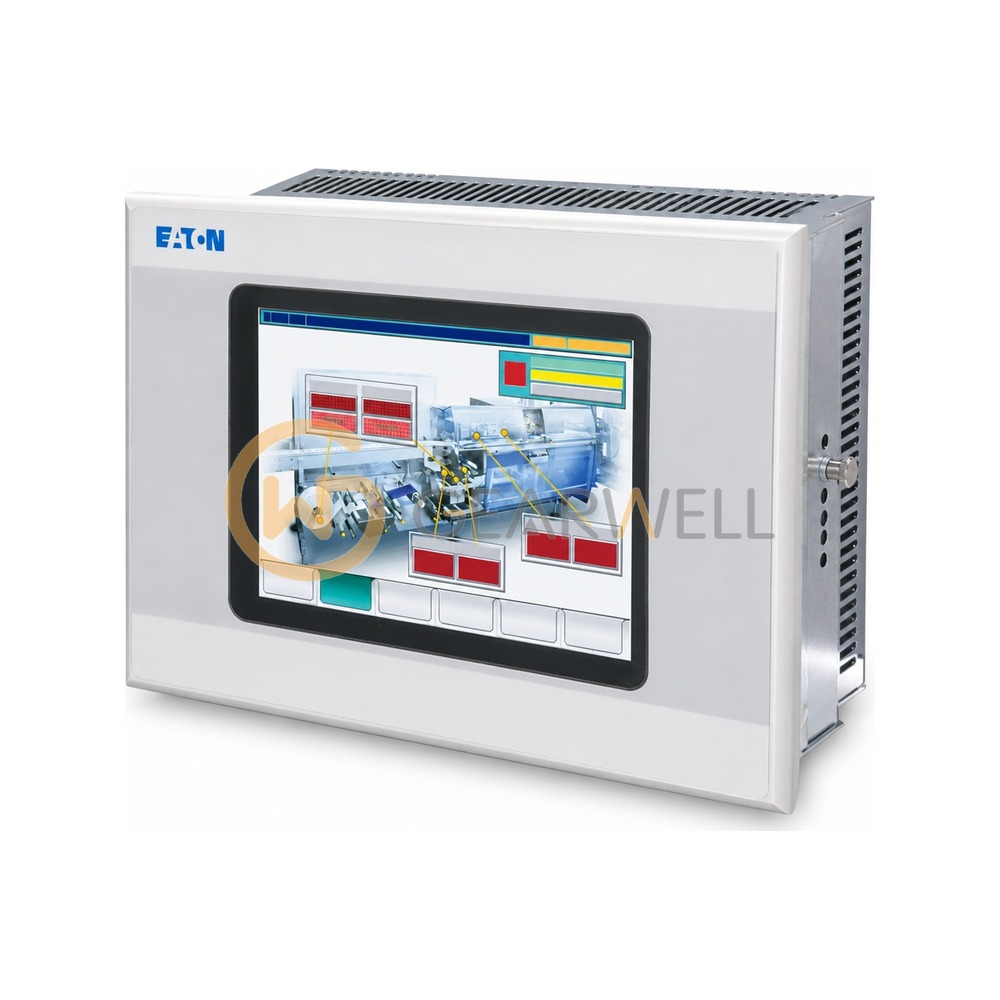

EATON XV-442-57CQB-1-10 XV400 5.7in Micro Panel HMI Touch Panel
- Brand
- EATON
- Model
- XV-442-57CQB-1-10
- GEARWELL SKU
- GWP-000033745
- Category
- HMIs & Industrial PCs
Key specifications
- Weight
- approx. 1.9 kg
- Display
- 5.7" CSTN-LCD color, QVGA 320 x 240 pixels, 256 colors
- Evidence
- Eaton MN04802009Z-EN (12/2014), hosted at es-assets.eaton.com
- Processor
- RISC, 32-bit, 400 MHz
- Interfaces
- Ethernet 100Base-TX/10Base-T, RS232 system port, USB 2.0 host, USB 1.1 device, CAN (electrically isolated)
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsTechnical reference
| Product name | EATON XV-442-57CQB-1-10 XV400 5.7in Micro Panel HMI Touch Panel |
|---|---|
| Brand | EATON |
| Model | XV-442-57CQB-1-10 |
| Category | HMIs & Industrial PCs |
| Weight | approx. 1.9 kg |
| Display | 5.7" CSTN-LCD color, QVGA 320 x 240 pixels, 256 colors |
| Evidence | Eaton MN04802009Z-EN (12/2014), hosted at es-assets.eaton.com |
| Processor | RISC, 32-bit, 400 MHz |
| Interfaces | Ethernet 100Base-TX/10Base-T, RS232 system port, USB 2.0 host, USB 1.1 device, CAN (electrically isolated) |
| Rated voltage | 24 VDC SELV (20.4-28.8 VDC) V DC |
| Type designation | XV-442-57CQB-1-1x (infra-red touch 5.7", CSTN, standard front) |
| Code suffix "0" (last digit) | as collected; not listed in the official model-number table (shown as x) |
| Dimensions (standard front) | 156 x 212 x 81 (H x W x D) mm |
