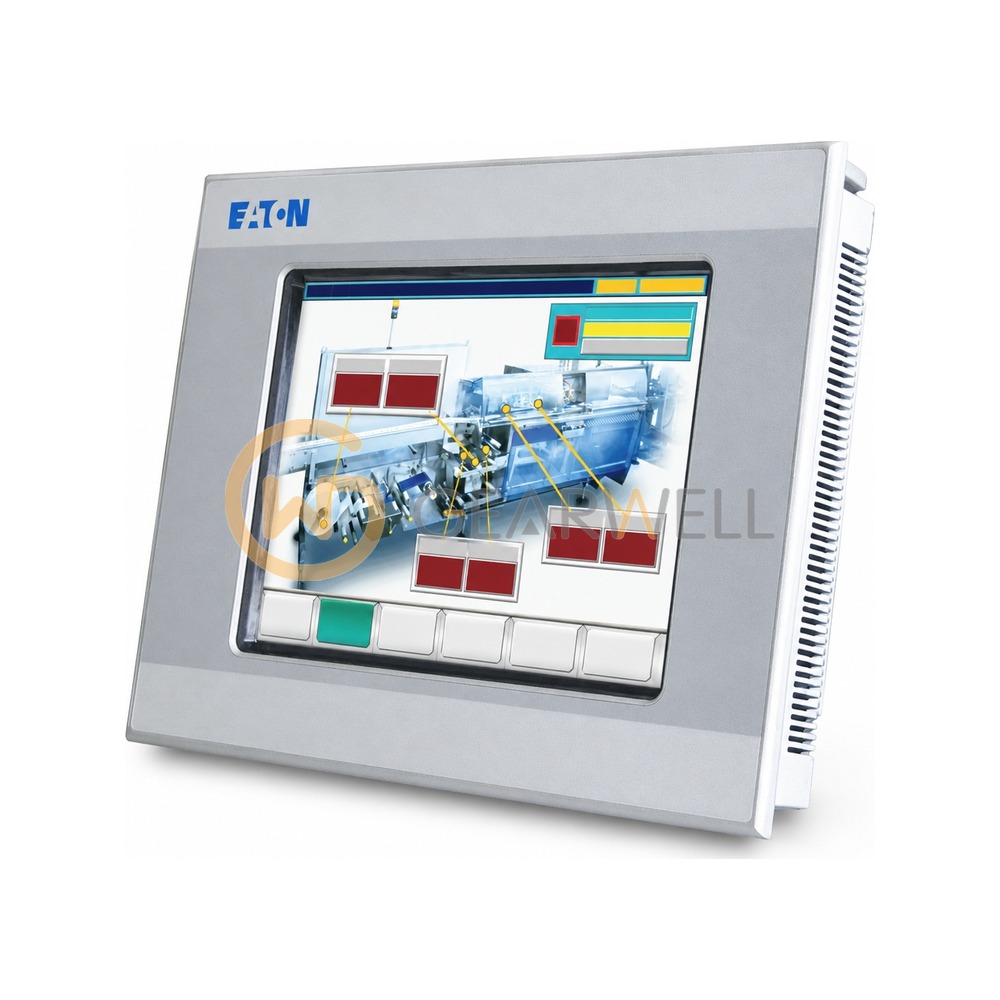

EATON XVS-440-10MPI-1-10 XVS400 10.4in Micro Panel HMI Touch Panel

Key specifications

Weight: approx. 3.7 kg
Display: 10.4" TFT-LCD color, VGA 640 x 480 pixels
Evidence: Eaton MN04802012Z-EN (12/2014), hosted at es-assets.eaton.com
Processor: RISC, 32-bit, 400 MHz; DRAM 64 MByte
Brand note: collected params_raw described an AC drive (VFD); the official Eaton manual identifies XVS-440-10MPI as a 10.4" MICRO PANEL HMI

This opens your email client. Send the email to submit your inquiry; this website does not store your message.

Product name	EATON XVS-440-10MPI-1-10 XVS400 10.4in Micro Panel HMI Touch Panel
Brand	EATON
Model	XVS-440-10MPI-1-10
Category	HMIs & Industrial PCs
Weight	approx. 3.7 kg
Display	10.4" TFT-LCD color, VGA 640 x 480 pixels
Evidence	Eaton MN04802012Z-EN (12/2014), hosted at es-assets.eaton.com
Processor	RISC, 32-bit, 400 MHz; DRAM 64 MByte
Brand note	collected params_raw described an AC drive (VFD); the official Eaton manual identifies XVS-440-10MPI as a 10.4" MICRO PANEL HMI
Dimensions	260 x 345 x 67 (H x W x D) mm
Interfaces	Ethernet 100Base-TX/10Base-T, RS232 system port, 2x USB 2.0 host, USB 1.1 device, PROFIBUS (isolated, max. 1.5 Mbit/s)
Rated voltage	24 VDC SELV (20.4-28.8 VDC) V DC
Code suffix "-1-10"	as collected; not listed in the official model-number table
Enclosure rating	front IP65 / rear IP20
Type designation	XVS-440-10MPI (infra-red touch 10.4")
