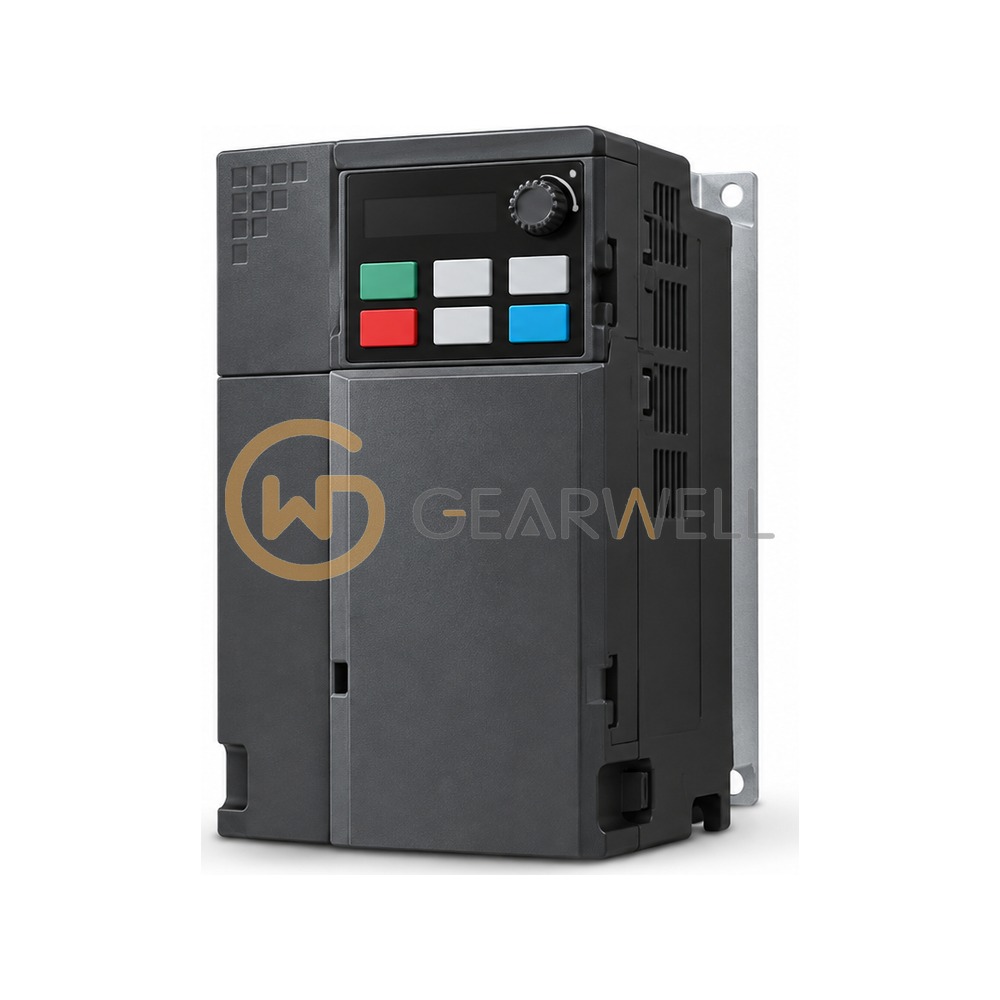

DELTA VFD9A0MS43AFSAA MS300 series AC Motor Drive
- Brand
- DELTA
- Model
- VFD9A0MS43AFSAA
- GEARWELL SKU
- GWP-000013191
- Category
- Variable Frequency Drives
Key specifications
- Frame
- C
- Size W x H (x D)
- 87 x 157 x 179 mm
- Built-in EMC filter
- Yes
- Applicable motor output
- 3.7 / 4 kW
- Rated voltage / frequency
- 3-phase AC 380 V ~ 480 V (-15% ~ +10%), 50 / 60 Hz
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsProduct overview
The Delta VFD9A0MS43AFSAA is an MS300 series compact AC motor drive for a 460 V 3-phase supply, rated 9 A output current in heavy duty for motors up to 3.7/4 kW (5 HP), built in frame size C. It accepts 380 to 480 V at 50/60 Hz (mains range 323 to 528 V) and delivers 10.5 A in normal duty. The model code marks an IP20 enclosure, built-in EMC filter and integrated Safe Torque Off (STO). Heavy-duty overload is 150% of rated current for 60 seconds and 200% for 3 seconds, and output frequency goes up to 599 Hz; it controls induction and permanent magnet motors in V/F, SVC or sensorless FOC mode. A built-in brake chopper, a 2k-step PLC and Modbus are included.
Technical reference
| Product name | DELTA VFD9A0MS43AFSAA MS300 series AC Motor Drive |
|---|---|
| Brand | DELTA |
| Model | VFD9A0MS43AFSAA |
| Category | Variable Frequency Drives |
| Frame | C |
| Size W x H (x D) | 87 x 157 x 179 mm |
| Built-in EMC filter | Yes |
| Applicable motor output | 3.7 / 4 kW |
| Rated voltage / frequency | 3-phase AC 380 V ~ 480 V (-15% ~ +10%), 50 / 60 Hz |
| Rated output current (Heavy Duty) | 9 A |
| Rated output current (Normal Duty) | 10.5 A |
