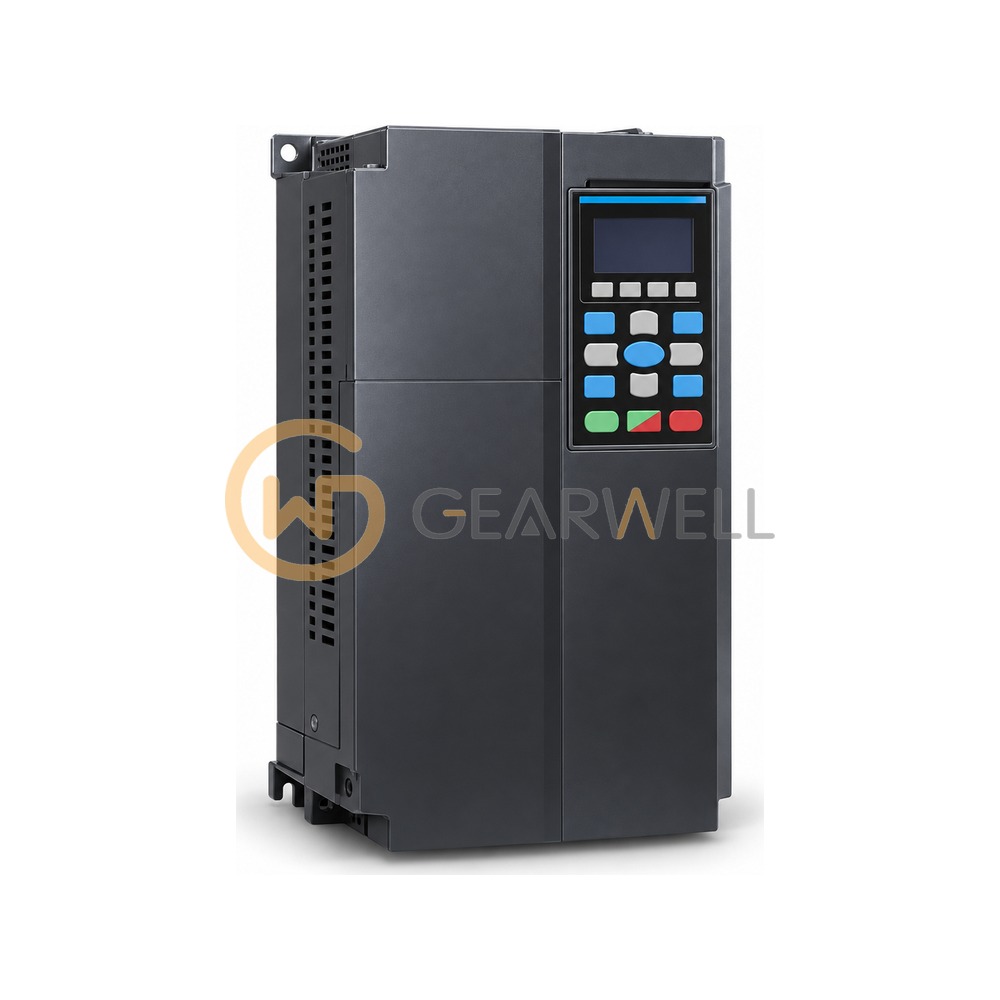

DELTA VFD900CP43A-21 CP2000 series AC Motor Drive
- Brand
- DELTA
- Model
- VFD900CP43A-21
- GEARWELL SKU
- GWP-000013190
- Category
- Variable Frequency Drives
Key specifications
- Frame
- D
- Rated voltage / frequency
- 3-phase, 380 ~ 480 VAC (-15% ~ +10%), 50/60 Hz
- Input current (Light Duty)
- 180 A
- Rated output current (Light Duty)
- 180 A
- Rated output capacity (Light Duty)
- 143 kVA
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsProduct overview
The Delta VFD900CP43A-21 is a CP2000 series fan and pump vector control AC motor drive for a 460 V 3-phase supply (380 to 480 VAC, 50/60 Hz), rated 180 A output current in light duty for motors up to 90 kW (125 HP), built in frame D. In normal duty it delivers 150 A for 75 kW (100 HP) motors; light-duty overload is 120% of rated current for 1 minute in every 5 minutes, and normal duty adds 160% for 3 seconds in every 25 seconds. A 3% DC choke is built in, while the braking chopper and EMC filter are optional. The -21 suffix marks an IP20 version with NEMA 1 protection, supplied with a conduit box. Version letter A denotes a wall-mount unit.
Technical reference
| Product name | DELTA VFD900CP43A-21 CP2000 series AC Motor Drive |
|---|---|
| Brand | DELTA |
| Model | VFD900CP43A-21 |
| Category | Variable Frequency Drives |
| Frame | D |
| Rated voltage / frequency | 3-phase, 380 ~ 480 VAC (-15% ~ +10%), 50/60 Hz |
| Input current (Light Duty) | 180 A |
| Rated output current (Light Duty) | 180 A |
| Rated output capacity (Light Duty) | 143 kVA |
| Applicable motor output (Light Duty) | 90 kW |
| Rated output current / motor output (Normal Duty) | 150 A / 75 kW |
