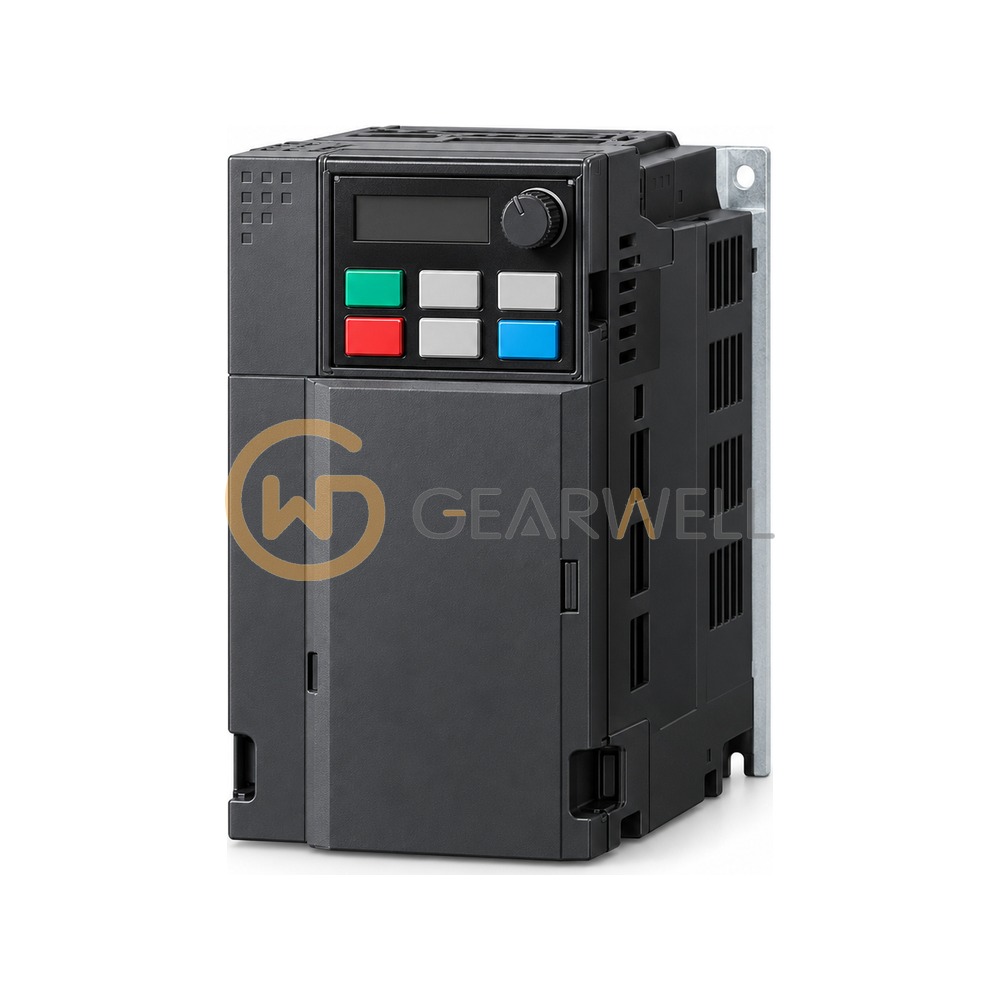

DELTA VFD9A0MS43ANSAA MS300 series AC Motor Drive
- Brand
- DELTA
- Model
- VFD9A0MS43ANSAA
- GEARWELL SKU
- GWP-000012832
- Category
- Variable Frequency Drives
Key specifications
- Frame
- C1
- EMC filter
- None (w/o EMC filter)
- Dimensions W x H x D
- 87.0 x 157.0 x 152.0 mm
- Applicable motor output
- 3.7 / 4 kW
- Rated voltage / frequency
- 3-phase AC 380 V ~ 480 V (-15% ~ +10%), 50 / 60 Hz
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsProduct overview
The Delta VFD9A0MS43ANSAA is an MS300 series compact AC motor drive for a 460 V 3-phase supply, rated 9 A output current in heavy duty for motors up to 3.7/4 kW (5 HP), built in frame size C. The model code marks an IP20 enclosure, no built-in EMC filter and integrated Safe Torque Off (STO). Heavy-duty overload is 150% of rated current for 60 seconds and 200% for 3 seconds, and output frequency goes up to 599 Hz; it controls induction and permanent magnet motors in V/F, SVC or sensorless FOC mode. A 2k-step PLC and Modbus are built in, and the keypad is removable.
Technical reference
| Product name | DELTA VFD9A0MS43ANSAA MS300 series AC Motor Drive |
|---|---|
| Brand | DELTA |
| Model | VFD9A0MS43ANSAA |
| Category | Variable Frequency Drives |
| Frame | C1 |
| EMC filter | None (w/o EMC filter) |
| Dimensions W x H x D | 87.0 x 157.0 x 152.0 mm |
| Applicable motor output | 3.7 / 4 kW |
| Rated voltage / frequency | 3-phase AC 380 V ~ 480 V (-15% ~ +10%), 50 / 60 Hz |
| Rated output current (Heavy Duty) | 9 A |
| Rated output current (Normal Duty) | 10.5 A |
