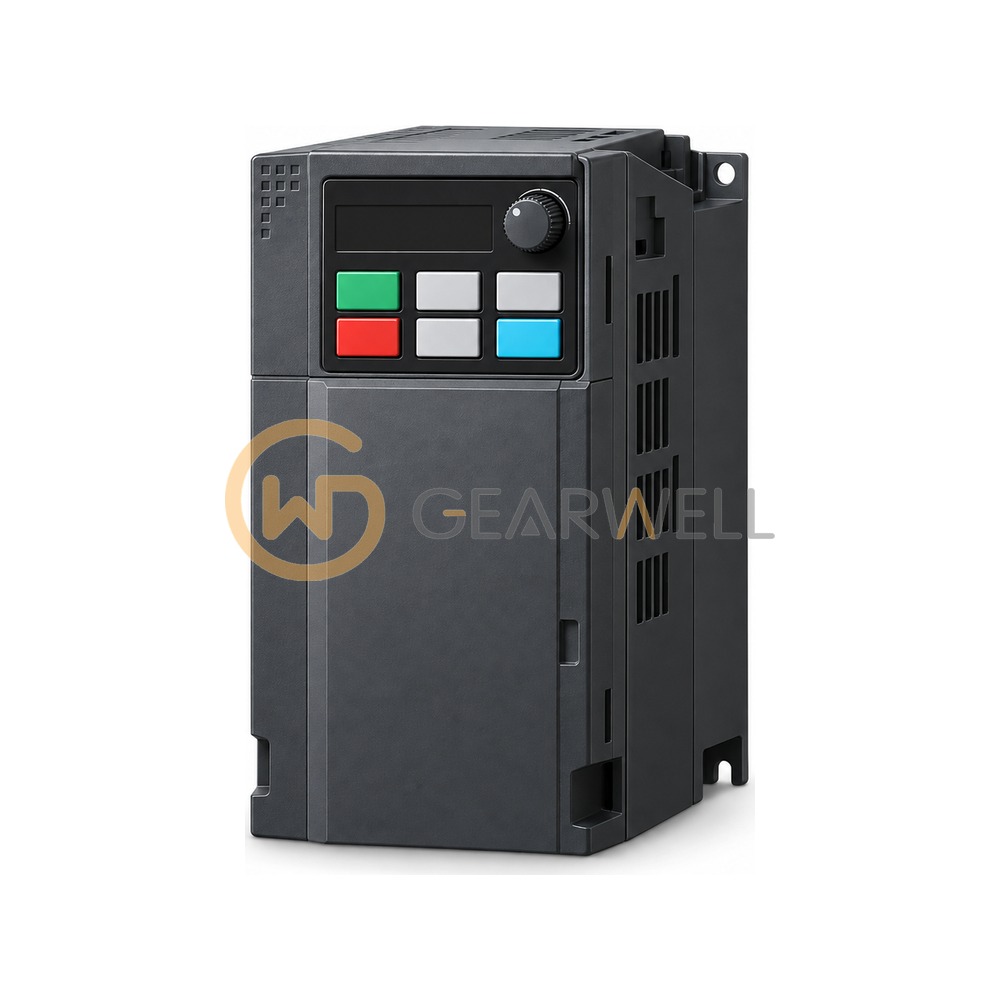

DELTA VFD7A5MS23ANSHA MS300 series AC Motor Drive
- Brand
- DELTA
- Model
- VFD7A5MS23ANSHA
- GEARWELL SKU
- GWP-000013187
- Category
- Variable Frequency Drives
Key specifications
- Frame
- B
- Size W x H (x D)
- 72 x 142 mm
- Built-in EMC filter
- No
- Applicable motor output
- 1.5 kW
- Rated voltage / frequency
- 3-phase AC 200 V ~ 240 V (-15% ~ +10%), 50 / 60 Hz
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsProduct overview
The Delta VFD7A5MS23ANSHA is a high-speed MS300 series compact AC motor drive for a 230 V 3-phase supply, rated 7.5 A output current in heavy duty for motors up to 1.5 kW (2 HP), built in frame size B. The model code marks an IP20 enclosure, no built-in EMC filter and integrated Safe Torque Off (STO). Heavy-duty overload is 150% of rated current for 60 seconds and 200% for 3 seconds, and output frequency goes up to 1500 Hz (with derating, V/F control only); it controls induction and permanent magnet motors in V/F, SVC or sensorless FOC mode. A 2k-step PLC and Modbus are built in, and the keypad is removable.
Technical reference
| Product name | DELTA VFD7A5MS23ANSHA MS300 series AC Motor Drive |
|---|---|
| Brand | DELTA |
| Model | VFD7A5MS23ANSHA |
| Category | Variable Frequency Drives |
| Frame | B |
| Size W x H (x D) | 72 x 142 mm |
| Built-in EMC filter | No |
| Applicable motor output | 1.5 kW |
| Rated voltage / frequency | 3-phase AC 200 V ~ 240 V (-15% ~ +10%), 50 / 60 Hz |
| Rated output current (Heavy Duty) | 7.5 A |
| Rated output current (Normal Duty) | 8 A |
