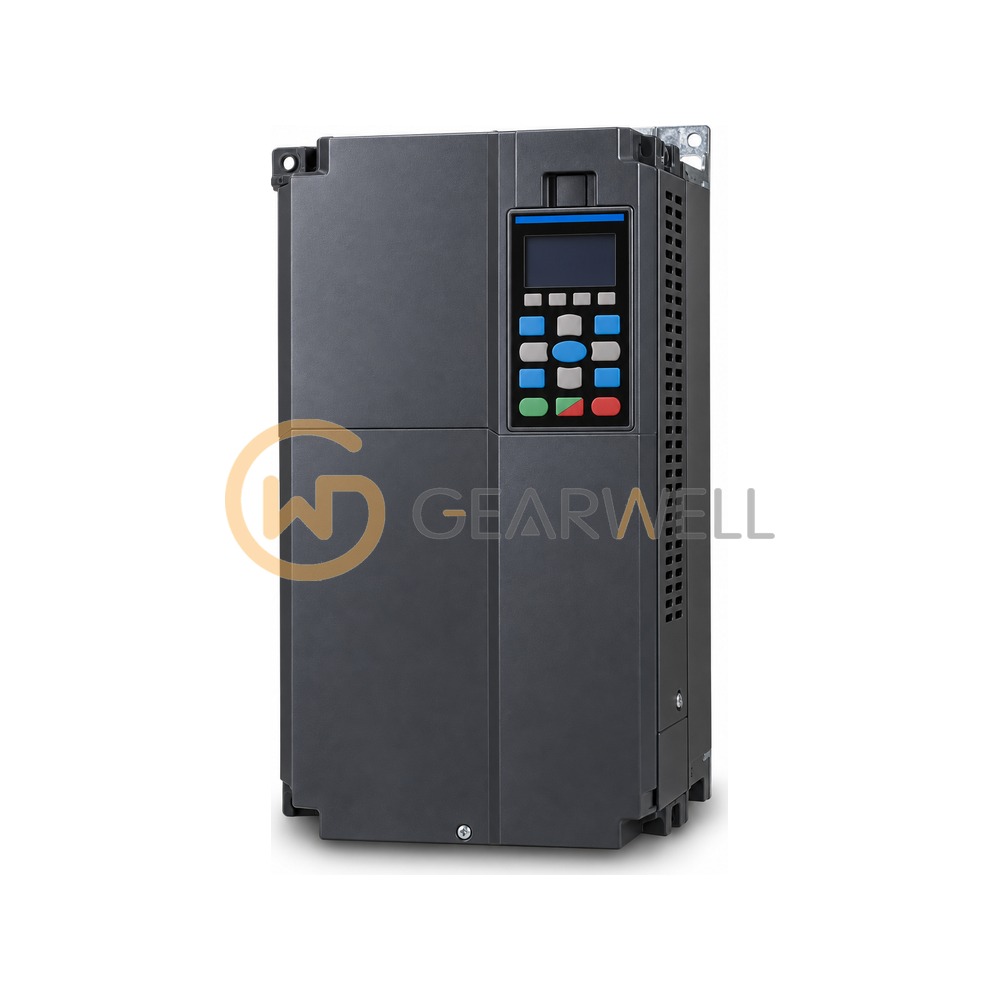

DELTA VFD300CP43B-21 CP2000 series AC Motor Drive
- Brand
- DELTA
- Model
- VFD300CP43B-21
- GEARWELL SKU
- GWP-000013137
- Category
- Variable Frequency Drives
Key specifications
- Frame size
- C
- Rated voltage / frequency
- 3-phase, 380 ~ 480 VAC (-15% ~ +10%), 50/60 Hz
- Rated output current (Light Duty)
- 60 A
- Rated output current (Normal Duty)
- 45 A
- Applicable motor output (Light Duty)
- 30 kW
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsProduct overview
The Delta VFD300CP43B-21 is a CP2000 series fan and pump vector control AC motor drive for a 460 V 3-phase supply (380 to 480 VAC, 50/60 Hz), rated 60 A output current in light duty for motors up to 30 kW (40 HP), built in frame C. In normal duty it delivers 45 A for 22 kW (30 HP) motors; light-duty overload is 120% of rated current for 1 minute in every 5 minutes, and normal duty adds 160% for 3 seconds in every 25 seconds. A braking chopper is built in and the DC choke is optional, with no built-in EMC filter. The -21 suffix marks an IP20 version with NEMA 1 protection, supplied with top cover and standard conduit plate. Version letter B denotes a wall-mount unit.
Technical reference
| Product name | DELTA VFD300CP43B-21 CP2000 series AC Motor Drive |
|---|---|
| Brand | DELTA |
| Model | VFD300CP43B-21 |
| Category | Variable Frequency Drives |
| Frame size | C |
| Rated voltage / frequency | 3-phase, 380 ~ 480 VAC (-15% ~ +10%), 50/60 Hz |
| Rated output current (Light Duty) | 60 A |
| Rated output current (Normal Duty) | 45 A |
| Applicable motor output (Light Duty) | 30 kW |
| Applicable motor output (Normal Duty) | 22 kW |
| Input current (Light Duty / Normal Duty) | 66 / 47 A |
