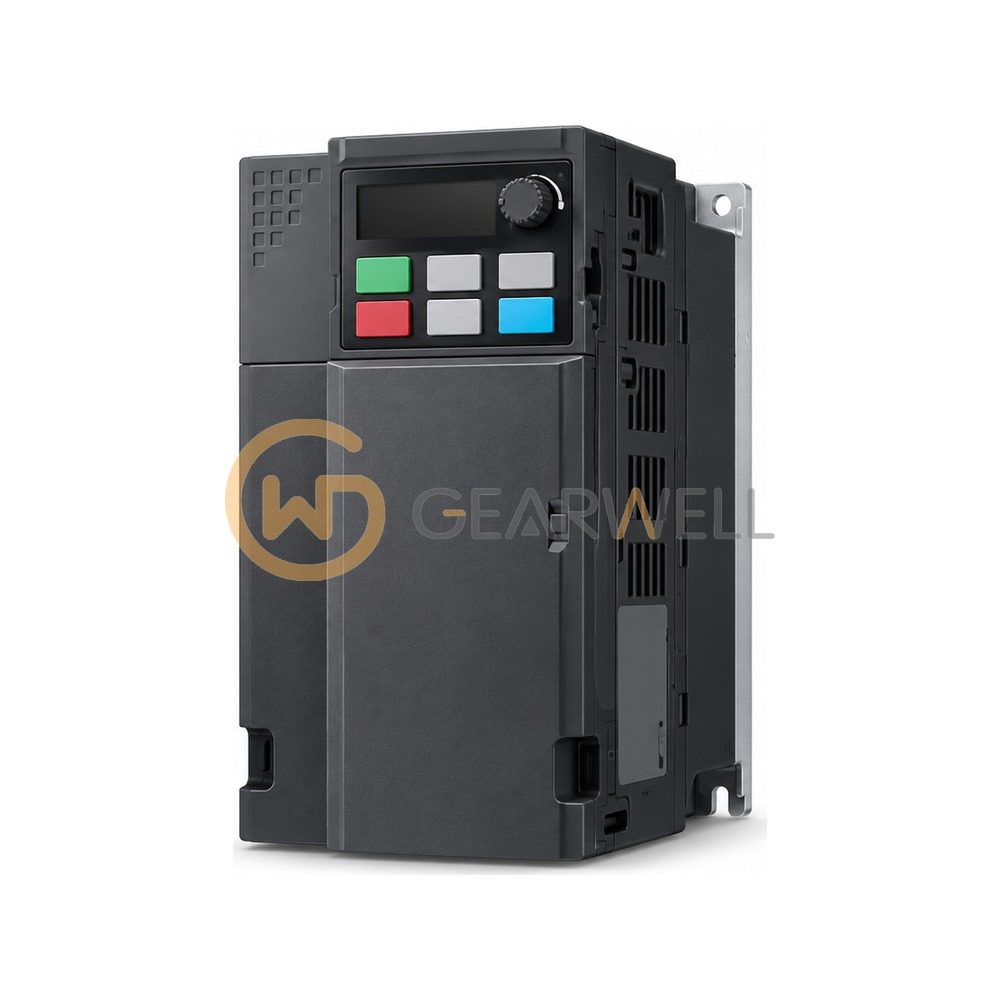

DELTA VFD33AMS23ANSAA MS300 series AC Motor Drive
- Brand
- DELTA
- Model
- VFD33AMS23ANSAA
- GEARWELL SKU
- GWP-000013140
- Category
- Variable Frequency Drives
Key specifications
- IP rating
- IP20
- Frame size
- E1
- Built-in EMC filter
- No
- Input voltage class
- 230 V / 3-phase
- Safe Torque Off (STO)
- Integrated
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsProduct overview
The Delta VFD33AMS23ANSAA is an MS300 series compact AC motor drive for a 230 V 3-phase supply, rated 33 A output current in heavy duty for motors up to 7.5 kW (10 HP), built in frame size E. It accepts 200 to 240 V at 50/60 Hz (mains range 170 to 265 V) and delivers 36 A in normal duty. The model code marks an IP20 enclosure, no built-in EMC filter and integrated Safe Torque Off (STO). Heavy-duty overload is 150% of rated current for 60 seconds and 200% for 3 seconds, and output frequency goes up to 599 Hz; it controls induction and permanent magnet motors in V/F, SVC or sensorless FOC mode. A built-in brake chopper, a 2k-step PLC and Modbus are included.
Technical reference
| Product name | DELTA VFD33AMS23ANSAA MS300 series AC Motor Drive |
|---|---|
| Brand | DELTA |
| Model | VFD33AMS23ANSAA |
| Category | Variable Frequency Drives |
| IP rating | IP20 |
| Frame size | E1 |
| Built-in EMC filter | No |
| Input voltage class | 230 V / 3-phase |
| Safe Torque Off (STO) | Integrated |
| Max. applicable motor capacity | 10 HP |
| Drive rated output current (Heavy Duty) | 33.0 A |
