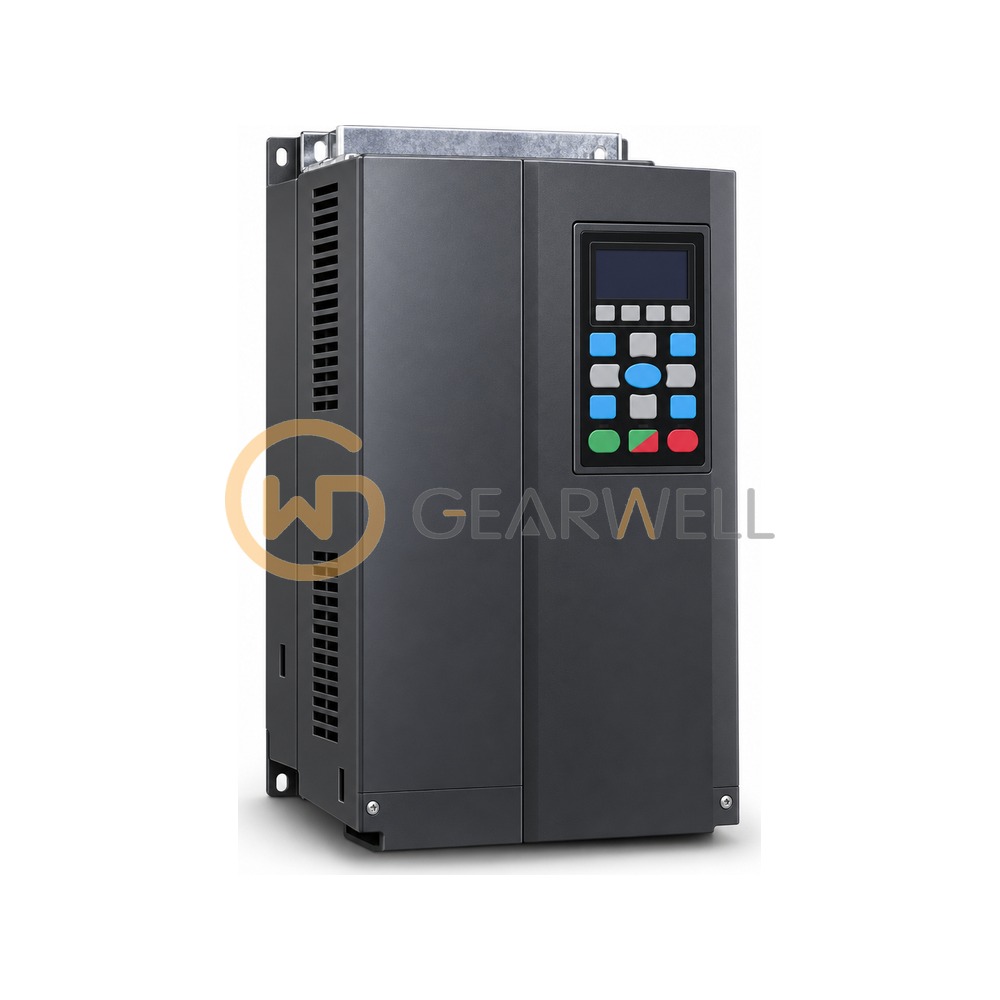

DELTA VFD300C23A-00 C2000 Plus series AC Motor Drive
- Brand
- DELTA
- Model
- VFD300C23A-00
- GEARWELL SKU
- GWP-000013136
- Category
- Variable Frequency Drives
Key specifications
- EMC filter
- Optional for all frames
- Frame size
- D
- Rated input voltage
- 3Ø, 200 ~ 240 VAC (-15% ~ +10%)
- Rated input current (HD / SHD)
- 124 / 99 A
- Motor power range (Heavy Duty)
- 30 kW
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsProduct overview
The Delta VFD300C23A-00 is a C2000 Plus series vector control AC motor drive for a 230 V 3-phase supply (200 to 240 VAC, 50/60 Hz), rated 120 A output current in heavy duty for motors up to 30 kW (40 HP), built in frame D. In super heavy duty it delivers 90 A for 22 kW (30 HP) motors, and heavy-duty overload is 150% of rated current for 1 minute in every 5 minutes and 180% for 3 seconds in every 30 seconds. A DC reactor is built in, while the braking chopper and EMC filter are optional. The -00 suffix marks the version without conduit box, IP20 overall with an IP00 terminal area (UL open type). Version letter A denotes a wall-mount unit, and the drive is forced-air cooled.
Technical reference
| Product name | DELTA VFD300C23A-00 C2000 Plus series AC Motor Drive |
|---|---|
| Brand | DELTA |
| Model | VFD300C23A-00 |
| Category | Variable Frequency Drives |
| EMC filter | Optional for all frames |
| Frame size | D |
| Rated input voltage | 3Ø, 200 ~ 240 VAC (-15% ~ +10%) |
| Rated input current (HD / SHD) | 124 / 99 A |
| Motor power range (Heavy Duty) | 30 kW |
| Rated output current (Heavy Duty) | 120 A |
| Rated output current (Super Heavy Duty) | 90 A |
