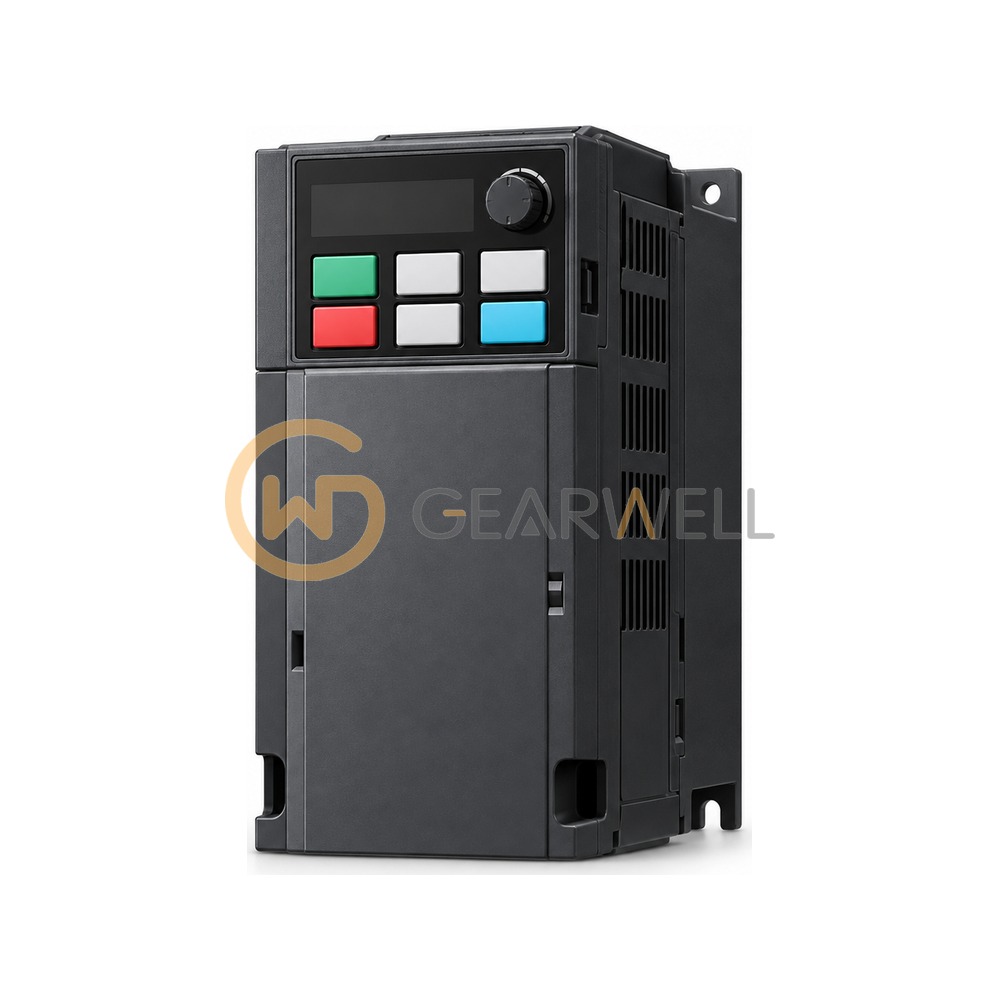

DELTA VFD2A7MS43ENSAA MS300 series AC Motor Drive
- Brand
- DELTA
- Model
- VFD2A7MS43ENSAA
- GEARWELL SKU
- GWP-000013133
- Category
- Variable Frequency Drives
Key specifications
- IP rating
- IP40
- Frame size
- A5
- Built-in EMC filter
- No
- Input voltage class
- 460 V / 3-phase
- Safe Torque Off (STO)
- Integrated
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsProduct overview
The Delta VFD2A7MS43ENSAA is an MS300 series compact AC motor drive for a 460 V 3-phase supply, rated 2.7 A output current in heavy duty for motors up to 0.75 kW (1 HP), built in frame size A. The model code marks an IP40 (anti-dust) enclosure, no built-in EMC filter and integrated Safe Torque Off (STO). Heavy-duty overload is 150% of rated current for 60 seconds and 200% for 3 seconds, and output frequency goes up to 599 Hz; it controls induction and permanent magnet motors in V/F, SVC or sensorless FOC mode. A 2k-step PLC and Modbus are built in, and the keypad is removable.
Technical reference
| Product name | DELTA VFD2A7MS43ENSAA MS300 series AC Motor Drive |
|---|---|
| Brand | DELTA |
| Model | VFD2A7MS43ENSAA |
| Category | Variable Frequency Drives |
| IP rating | IP40 |
| Frame size | A5 |
| Built-in EMC filter | No |
| Input voltage class | 460 V / 3-phase |
| Safe Torque Off (STO) | Integrated |
| Max. applicable motor capacity | 1 HP |
| Drive rated output current (Heavy Duty) | 2.7 A |
