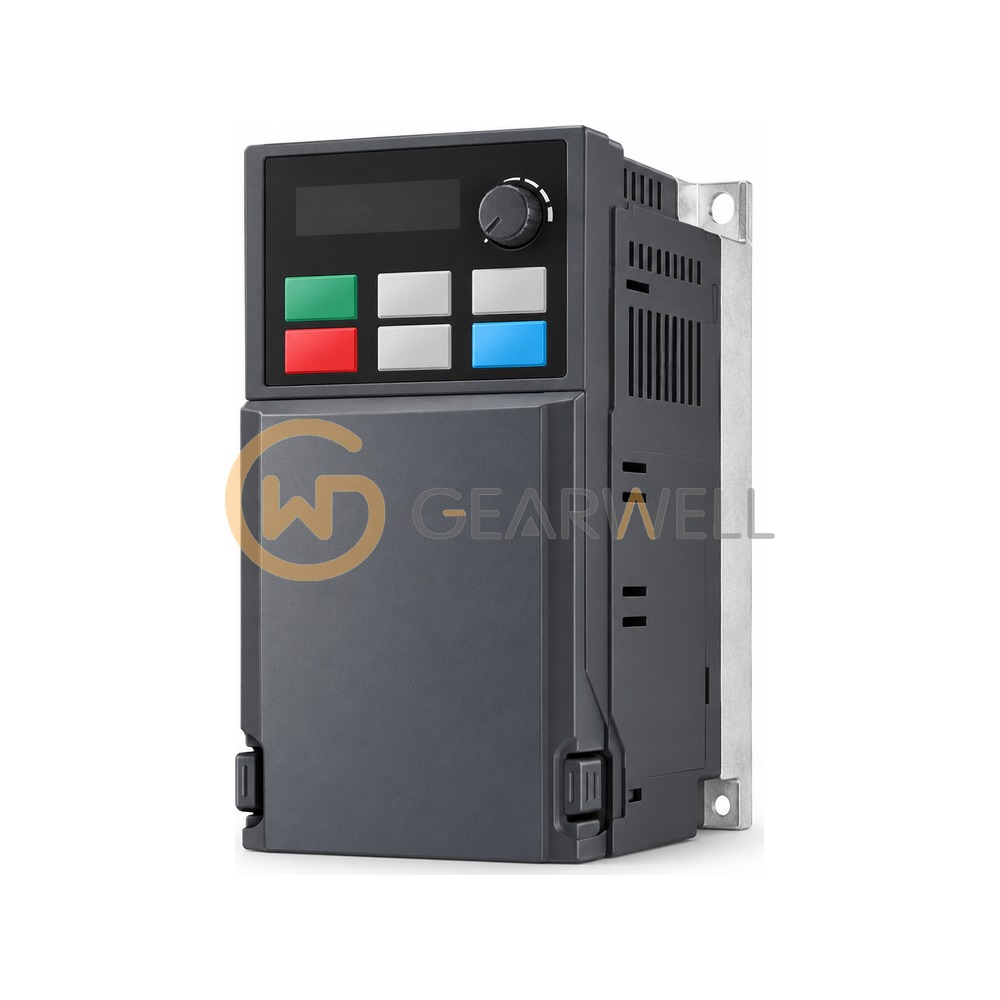

DELTA VFD13AME43ANNAA ME300 series AC Motor Drive
- Brand
- DELTA
- Model
- VFD13AME43ANNAA
- GEARWELL SKU
- GWP-000012581
- Category
- Motors & Gearboxes
Key specifications
- Frame
- D1
- Built-in STO
- No
- Built-in EMC filter
- No
- Input voltage / frequency
- Three-phase AC, 380V~480V (-15% ~ + 10%), 50 / 60Hz
- Max. applicable motor capacity
- 5.5 kW
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsProduct overview
The Delta VFD13AME43ANNAA is a Delta ME300 series basic compact AC motor drive for 460 V three-phase supply, sized for a 5.5 kW (7.5 HP) motor. The code VFD13AME43ANNAA stands for a rated output current of 13.0 A in heavy duty mode (150% for 60 seconds), an IP20 enclosure, no EMC filter, no Safe Torque Off and the standard model type. It comes in frame size D, has a built-in brake chopper and a carrier frequency of 2 to 15 kHz. ME300 drives run induction and permanent magnet motors with V/F and SVC control and provide Modbus as standard.
Technical reference
| Product name | DELTA VFD13AME43ANNAA ME300 series AC Motor Drive |
|---|---|
| Brand | DELTA |
| Model | VFD13AME43ANNAA |
| Category | Motors & Gearboxes |
| Frame | D1 |
| Built-in STO | No |
| Built-in EMC filter | No |
| Input voltage / frequency | Three-phase AC, 380V~480V (-15% ~ + 10%), 50 / 60Hz |
| Max. applicable motor capacity | 5.5 kW |
| Rated output current (Normal Duty) | 15.7 A |
| Drive rated output current (Heavy Duty) | 13.0 A |
