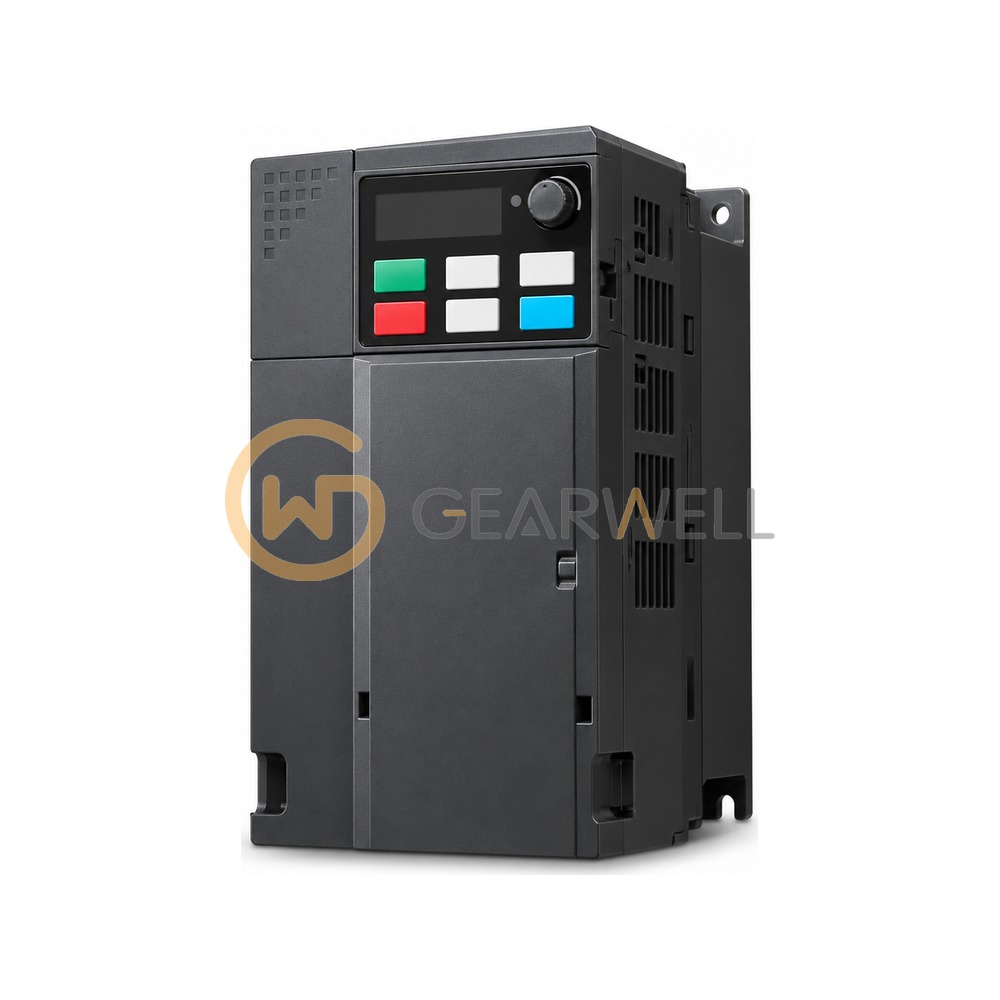

DELTA VFD11AMS23ANSAA MS300 series AC Motor Drive
- Brand
- DELTA
- Model
- VFD11AMS23ANSAA
- GEARWELL SKU
- GWP-000012580
- Category
- Motors & Gearboxes
Key specifications
- Frame
- C1
- EMC filter
- None (w/o EMC filter)
- Dimensions W x H x D
- 87.0 x 157.0 x 152.0 mm
- Applicable motor output
- 2.2 kW
- Rated voltage / frequency
- 3-phase AC 200 V ~ 240 V (-15% ~ +10%), 50 / 60 Hz
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsProduct overview
The Delta VFD11AMS23ANSAA is an MS300 series compact AC motor drive for a 230 V 3-phase supply, rated 11 A output current in heavy duty for motors up to 2.2 kW (3 HP), built in frame size C. It accepts 200 to 240 V at 50/60 Hz (mains range 170 to 265 V) and delivers 12.5 A in normal duty. The model code marks an IP20 enclosure, no built-in EMC filter and integrated Safe Torque Off (STO). Heavy-duty overload is 150% of rated current for 60 seconds and 200% for 3 seconds, and output frequency goes up to 599 Hz; it controls induction and permanent magnet motors in V/F, SVC or sensorless FOC mode. A built-in brake chopper, a 2k-step PLC and Modbus are included.
Technical reference
| Product name | DELTA VFD11AMS23ANSAA MS300 series AC Motor Drive |
|---|---|
| Brand | DELTA |
| Model | VFD11AMS23ANSAA |
| Category | Motors & Gearboxes |
| Frame | C1 |
| EMC filter | None (w/o EMC filter) |
| Dimensions W x H x D | 87.0 x 157.0 x 152.0 mm |
| Applicable motor output | 2.2 kW |
| Rated voltage / frequency | 3-phase AC 200 V ~ 240 V (-15% ~ +10%), 50 / 60 Hz |
| Rated output current (Heavy Duty) | 11 A |
| Rated output current (Normal Duty) | 12.5 A |
