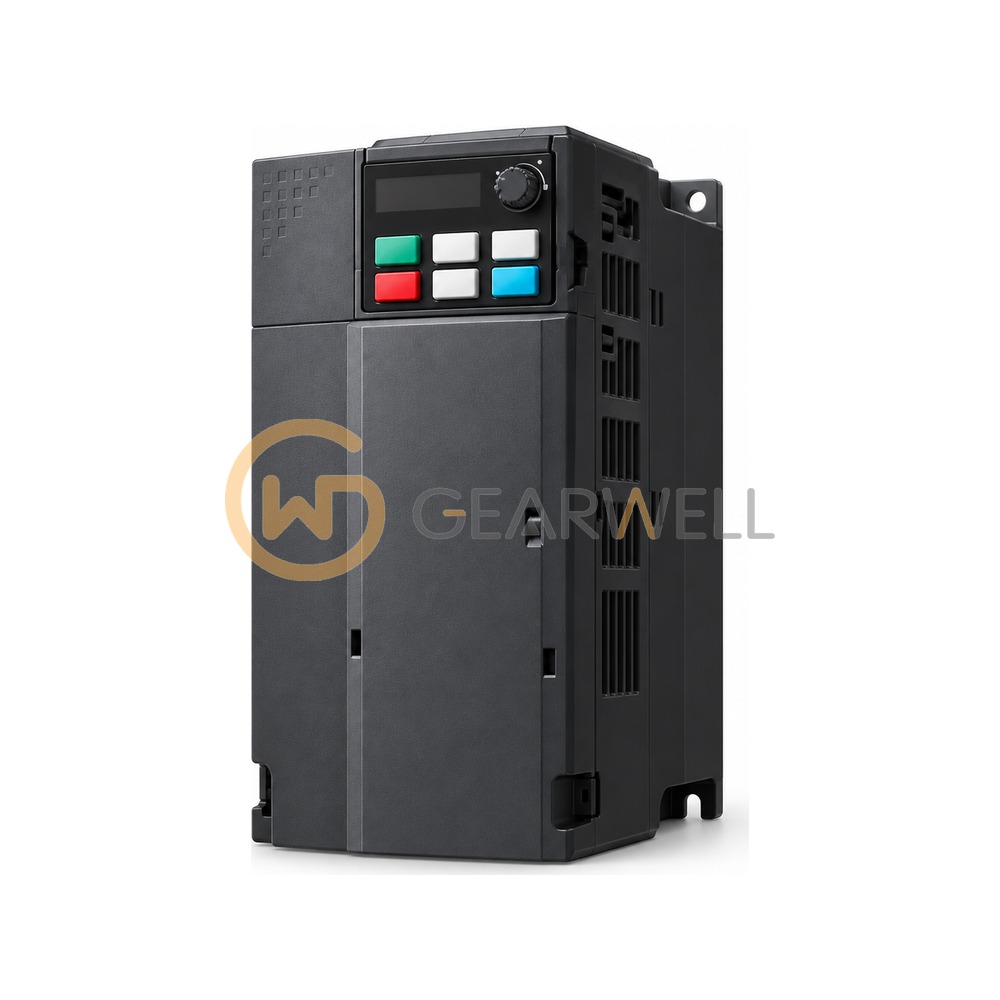

DELTA VFD13AMS43AFSAA MS300 series AC Motor Drive
- Brand
- DELTA
- Model
- VFD13AMS43AFSAA
- GEARWELL SKU
- GWP-000012582
- Category
- Motors & Gearboxes
Key specifications
- Frame
- D2
- EMC filter
- Built-in
- Dimensions W x H x D
- 109.0 x 207.0 x 187.0 mm
- Applicable motor output
- 5.5 kW
- Rated voltage / frequency
- 3-phase AC 380 V ~ 480 V (-15% ~ +10%), 50 / 60 Hz
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsProduct overview
The Delta VFD13AMS43AFSAA is an MS300 series compact AC motor drive for a 460 V 3-phase supply, rated 13 A output current in heavy duty for motors up to 5.5 kW (7.5 HP), built in frame size D. It accepts 380 to 480 V at 50/60 Hz (mains range 323 to 528 V) and delivers 15.7 A in normal duty. The model code marks an IP20 enclosure, built-in EMC filter and integrated Safe Torque Off (STO). Heavy-duty overload is 150% of rated current for 60 seconds and 200% for 3 seconds, and output frequency goes up to 599 Hz; it controls induction and permanent magnet motors in V/F, SVC or sensorless FOC mode. A built-in brake chopper, a 2k-step PLC and Modbus are included.
Technical reference
| Product name | DELTA VFD13AMS43AFSAA MS300 series AC Motor Drive |
|---|---|
| Brand | DELTA |
| Model | VFD13AMS43AFSAA |
| Category | Motors & Gearboxes |
| Frame | D2 |
| EMC filter | Built-in |
| Dimensions W x H x D | 109.0 x 207.0 x 187.0 mm |
| Applicable motor output | 5.5 kW |
| Rated voltage / frequency | 3-phase AC 380 V ~ 480 V (-15% ~ +10%), 50 / 60 Hz |
| Rated output current (Heavy Duty) | 13 A |
| Rated output current (Normal Duty) | 15.7 A |
