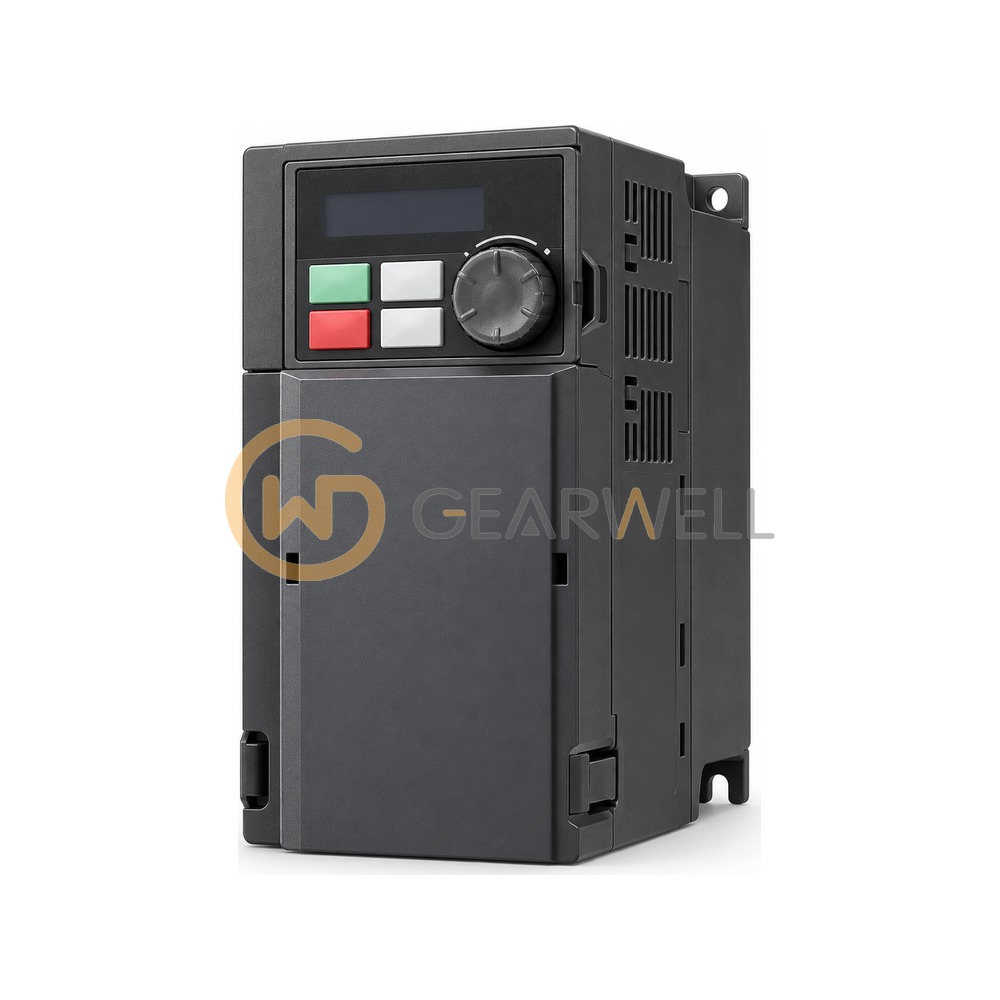

DELTA VFD11AMH21ANSAA MH300 series AC Motor Drive
- Brand
- DELTA
- Model
- VFD11AMH21ANSAA
- GEARWELL SKU
- GWP-000012577
- Category
- Motors & Gearboxes
Key specifications
- Frame
- C1
- Built-in EMC filter
- No
- Dimensions W x H x D
- 87.0 x 157.0 x 167.0 mm
- Rated voltage / frequency
- 1-Phase AC 200 V ~240 V (-15% ~ +10%), 50 / 60 Hz
- Max. applicable motor capacity
- 2.2 kW
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsProduct overview
The Delta VFD11AMH21ANSAA is a Delta MH300 series high performance compact AC motor drive for 230 V single-phase supply, sized for a 2.2 kW (3 HP) motor. The code VFD11AMH21ANSAA stands for a rated output current of 11.0 A in heavy duty mode (150% for 60 seconds), an IP20 enclosure, no built-in EMC filter, integrated Safe Torque Off and the standard model type. The drive is housed in frame size C and uses forced air cooling by fan. MH300 drives run induction and permanent magnet motors with V/F, SVC and FOC control and an output range up to 599 Hz.
Technical reference
| Product name | DELTA VFD11AMH21ANSAA MH300 series AC Motor Drive |
|---|---|
| Brand | DELTA |
| Model | VFD11AMH21ANSAA |
| Category | Motors & Gearboxes |
| Frame | C1 |
| Built-in EMC filter | No |
| Dimensions W x H x D | 87.0 x 157.0 x 167.0 mm |
| Rated voltage / frequency | 1-Phase AC 200 V ~240 V (-15% ~ +10%), 50 / 60 Hz |
| Max. applicable motor capacity | 2.2 kW |
| Rated output current (Normal Duty) | 12.5 A |
| Drive rated output current (Heavy Duty) | 11.0 A |
