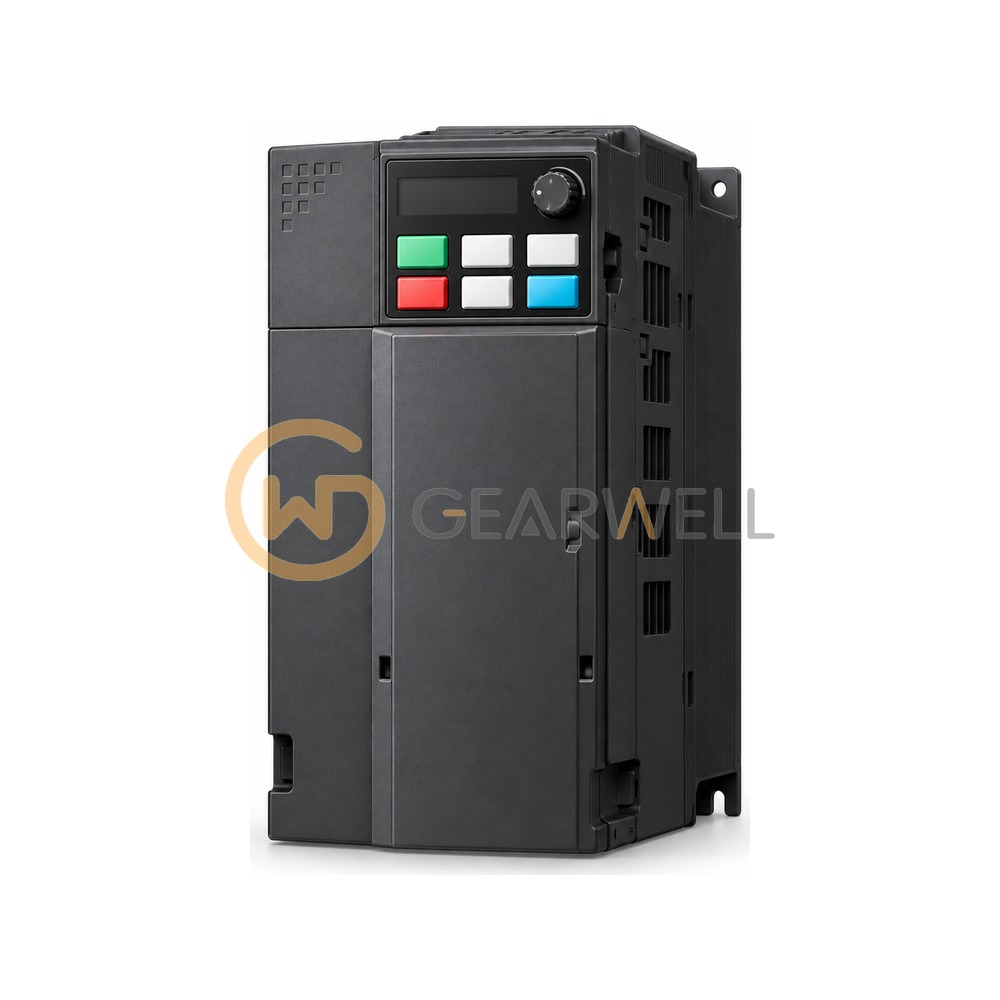

DELTA VFD11AMS21ANSHA MS300 series AC Motor Drive
- Brand
- DELTA
- Model
- VFD11AMS21ANSHA
- GEARWELL SKU
- GWP-000012579
- Category
- Motors & Gearboxes
Key specifications
- Frame
- C1
- EMC filter
- None (w/o EMC filter)
- Max. output frequency
- 1500.0 (high speed model, with derating, V/F control only) Hz
- Applicable motor output
- 2.2 kW
- Rated voltage / frequency
- 1-phase AC 200 V ~240 V (-15% ~ +10%), 50 / 60 Hz
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsProduct overview
The Delta VFD11AMS21ANSHA is a high-speed MS300 series compact AC motor drive for a 230 V single-phase supply, rated 11 A output current in heavy duty for motors up to 2.2 kW (3 HP), built in frame size C. The model code marks an IP20 enclosure, no built-in EMC filter and integrated Safe Torque Off (STO). Heavy-duty overload is 150% of rated current for 60 seconds and 200% for 3 seconds, and output frequency goes up to 1500 Hz (with derating, V/F control only); it controls induction and permanent magnet motors in V/F, SVC or sensorless FOC mode. A 2k-step PLC and Modbus are built in, and the keypad is removable.
Technical reference
| Product name | DELTA VFD11AMS21ANSHA MS300 series AC Motor Drive |
|---|---|
| Brand | DELTA |
| Model | VFD11AMS21ANSHA |
| Category | Motors & Gearboxes |
| Frame | C1 |
| EMC filter | None (w/o EMC filter) |
| Max. output frequency | 1500.0 (high speed model, with derating, V/F control only) Hz |
| Applicable motor output | 2.2 kW |
| Rated voltage / frequency | 1-phase AC 200 V ~240 V (-15% ~ +10%), 50 / 60 Hz |
| Rated output current (Heavy Duty) | 11 A |
| Rated output current (Normal Duty) | 12.5 A |
