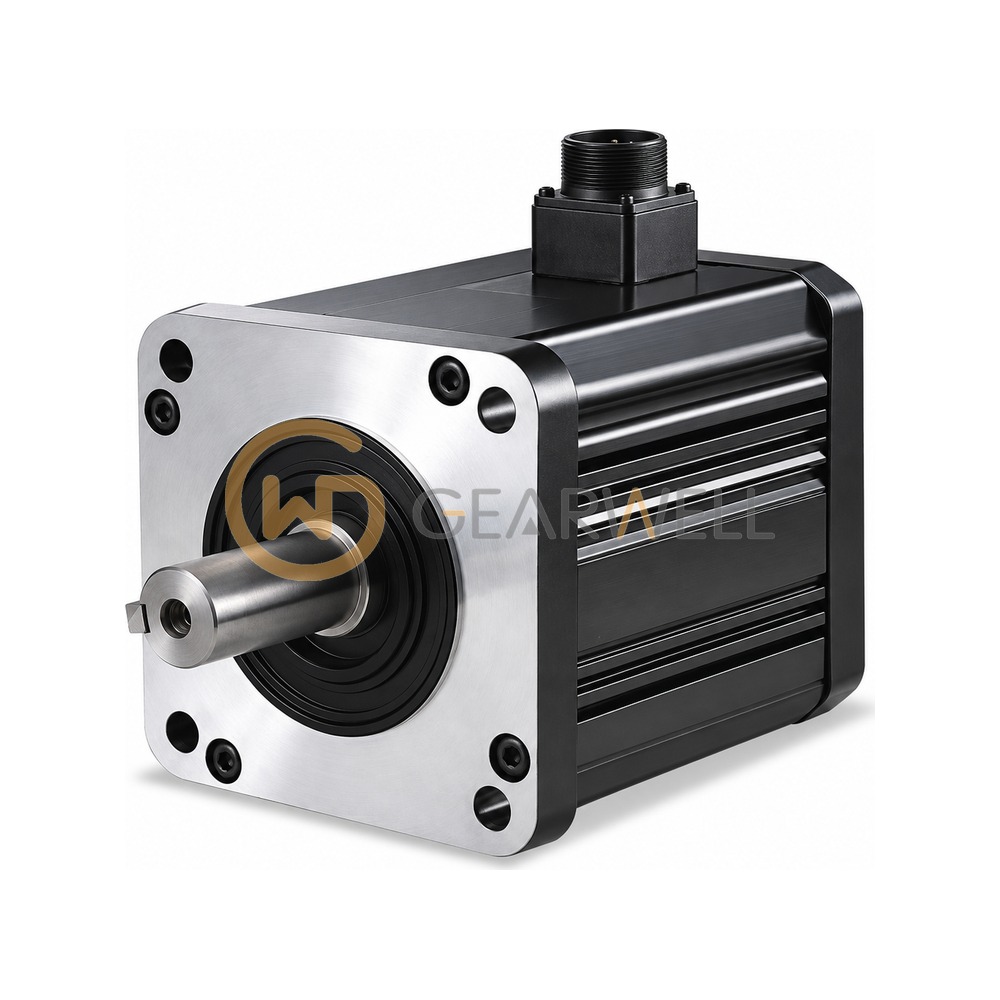

DELTA ECMA-C20807RS ECMA series (for ASDA-B2) AC Servo Motor
- Brand
- DELTA
- Model
- ECMA-C20807RS
- GEARWELL SKU
- GWP-000012559
- Category
- Servo Systems
Key specifications
- Weight
- 3.0 kg (without brake), 3.8 kg (with brake)
- Rated power
- 0.75 kW (low inertia, C△08 07, 80 mm frame)
- Rated speed
- 3000 r/min; Max. speed: 5000 r/min
- Encoder type
- Incremental encoder, 17-bit (encoder code '2')
- Rated torque
- 2.39 N-m; Max. torque: 7.16 N-m
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsProduct overview
The Delta ECMA-C20807RS is a Delta ECMA series low-inertia AC servo motor for 220 V servo drives, with an 80 mm frame and a rated output of 0.75 kW. It gives 2.39 N-m rated and 7.16 N-m maximum torque at a rated speed of 3000 r/min (5000 r/min maximum), with 5.1 A rated and 15.3 A maximum current. The motor has a 17-bit incremental encoder, and the R shaft code means a keyway with fixed screw holes, an oil seal and no holding brake. Rotor inertia is 1.13 (x10-4 kg-m2) and the weight is 3.0 kg; IP65 applies when waterproof connectors are used.
Technical reference
| Product name | DELTA ECMA-C20807RS ECMA series (for ASDA-B2) AC Servo Motor |
|---|---|
| Brand | DELTA |
| Model | ECMA-C20807RS |
| Category | Servo Systems |
| Weight | 3.0 kg (without brake), 3.8 kg (with brake) |
| Rated power | 0.75 kW (low inertia, C△08 07, 80 mm frame) |
| Rated speed | 3000 r/min; Max. speed: 5000 r/min |
| Encoder type | Incremental encoder, 17-bit (encoder code '2') |
| Rated torque | 2.39 N-m; Max. torque: 7.16 N-m |
| Rated current | 5.10 A; Max. instantaneous current: 15.3 A |
| Rotor inertia | 1.13 x10-4 kg.m2 |
| Shaft / brake / oil seal code 'R' | Keyway (with screw hole), without brake, with oil seal; 'S': Standard shaft diameter |
