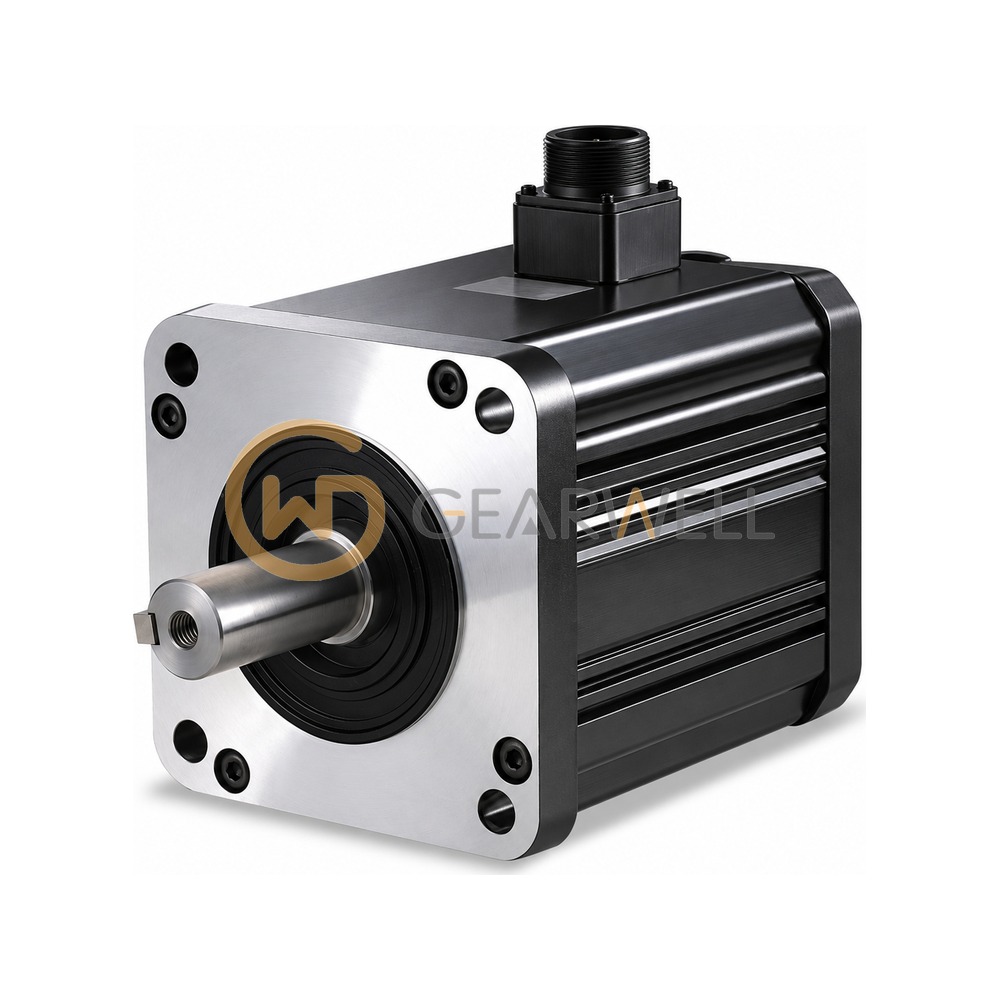

DELTA ECMA-CA0807SS ECMA series (for ASDA-A2) AC Servo Motor
- Brand
- DELTA
- Model
- ECMA-CA0807SS
- GEARWELL SKU
- GWP-000012560
- Category
- Servo Systems
Key specifications
- Weight
- 3.0 kg (without brake), 3.8 kg (with brake)
- Rated speed
- 3000 r/min; Max. speed: 5000 r/min
- Encoder type
- Absolute encoder (Single-turn: 17-bit, Multi-turn: 16-bit) (encoder code 'A')
- Rated torque
- 2.39 N-m; Max. torque: 7.16 N-m
- Rated current
- 5.1 A; Max. current: 15.3 A
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsProduct overview
The Delta ECMA-CA0807SS is a Delta ECMA series low-inertia AC servo motor for 220 V servo drives, with an 80 mm frame and a rated output of 0.75 kW. It gives 2.39 N-m rated and 7.16 N-m maximum torque at a rated speed of 3000 r/min (5000 r/min maximum), with 5.1 A rated and 15.3 A maximum current. The A encoder code means an absolute encoder with 17-bit single-turn and 16-bit multi-turn resolution, and the S shaft code means a keyway with fixed screw holes, an oil seal and a built-in holding brake rated 2.5 N-m. With the brake, rotor inertia is 1.18 (x10-4 kg-m2) and the weight is 3.8 kg.
Technical reference
| Product name | DELTA ECMA-CA0807SS ECMA series (for ASDA-A2) AC Servo Motor |
|---|---|
| Brand | DELTA |
| Model | ECMA-CA0807SS |
| Category | Servo Systems |
| Weight | 3.0 kg (without brake), 3.8 kg (with brake) |
| Rated speed | 3000 r/min; Max. speed: 5000 r/min |
| Encoder type | Absolute encoder (Single-turn: 17-bit, Multi-turn: 16-bit) (encoder code 'A') |
| Rated torque | 2.39 N-m; Max. torque: 7.16 N-m |
| Rated current | 5.1 A; Max. current: 15.3 A |
| Rated output power | 0.75 kW (220V low inertia, C 08 07, 80 mm frame) |
| Rotor moment of inertia | 1.13 x10-4 kg-m2 (without brake) |
| Shaft / brake / oil seal code 'S' | Keyway (with screw hole), with brake, with oil seal; 'S': Standard shaft diameter |
