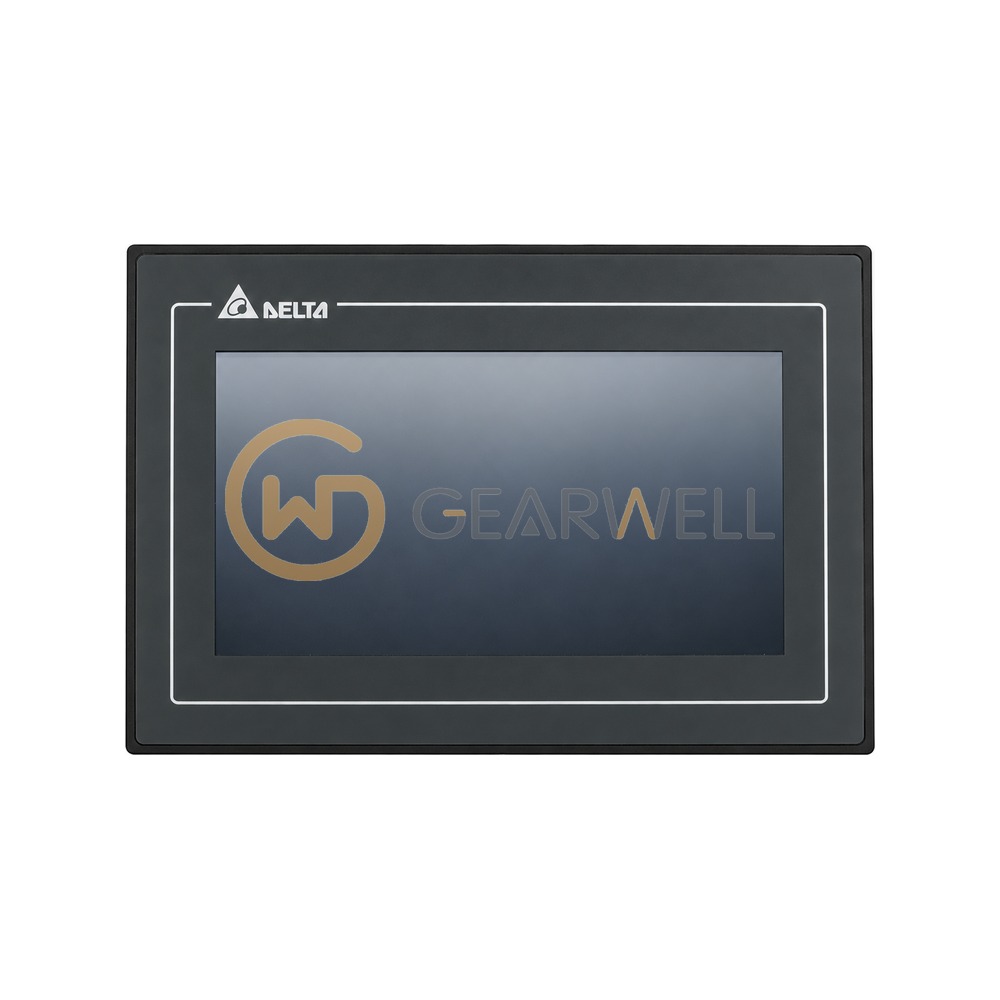

DELTA DOP-107CV DOP-100 series HMI touch panel (standard)
- Brand
- DELTA
- Model
- DOP-107CV
- GEARWELL SKU
- GWP-000014283
- Category
- HMIs & Industrial PCs
Key specifications
- CPU
- Cortex-A8 800 MHz
- RAM
- 256 MB
- ROM
- 256 MB
- USB
- 1 Slave / 1 Host
- Color
- 16-bit
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsProduct overview
The Delta DOP-107CV is a DOP 100 Series Standard General Type HMI touch panel with a 7" TFT LCD at 800 x 480 pixels (WVGA) and 65,536 colors. It uses an ARM Cortex-A8 (800MHz) processor with 256 Mbytes flash ROM and 256 Mbytes RAM. Interfaces are USB slave and USB host plus three serial ports: COM1 RS-232, COM2 RS-232/RS-485 and COM3 RS-422/RS-485. It runs on DC +24V (max. 8.5 W), has an IP65 / NEMA4 front, and measures 215 x 161 x 61.2 mm with a weight of 970 g.
Technical reference
| Product name | DELTA DOP-107CV DOP-100 series HMI touch panel (standard) |
|---|---|
| Brand | DELTA |
| Model | DOP-107CV |
| Category | HMIs & Industrial PCs |
| CPU | Cortex-A8 800 MHz |
| RAM | 256 MB |
| ROM | 256 MB |
| USB | 1 Slave / 1 Host |
| Color | 16-bit |
| Display | 7" TFT |
| COM Port | 3 Serial COM Ports |
| Resolution (Pixels) | 800 x 480 |
