Delta DOP-107EG DOP-100 HMI Touch Panel
- Brand
- DELTA
- Model
- DOP-107EG
- GEARWELL SKU
- GWP-000006934
- Category
- HMIs & Industrial PCs
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsProduct overview

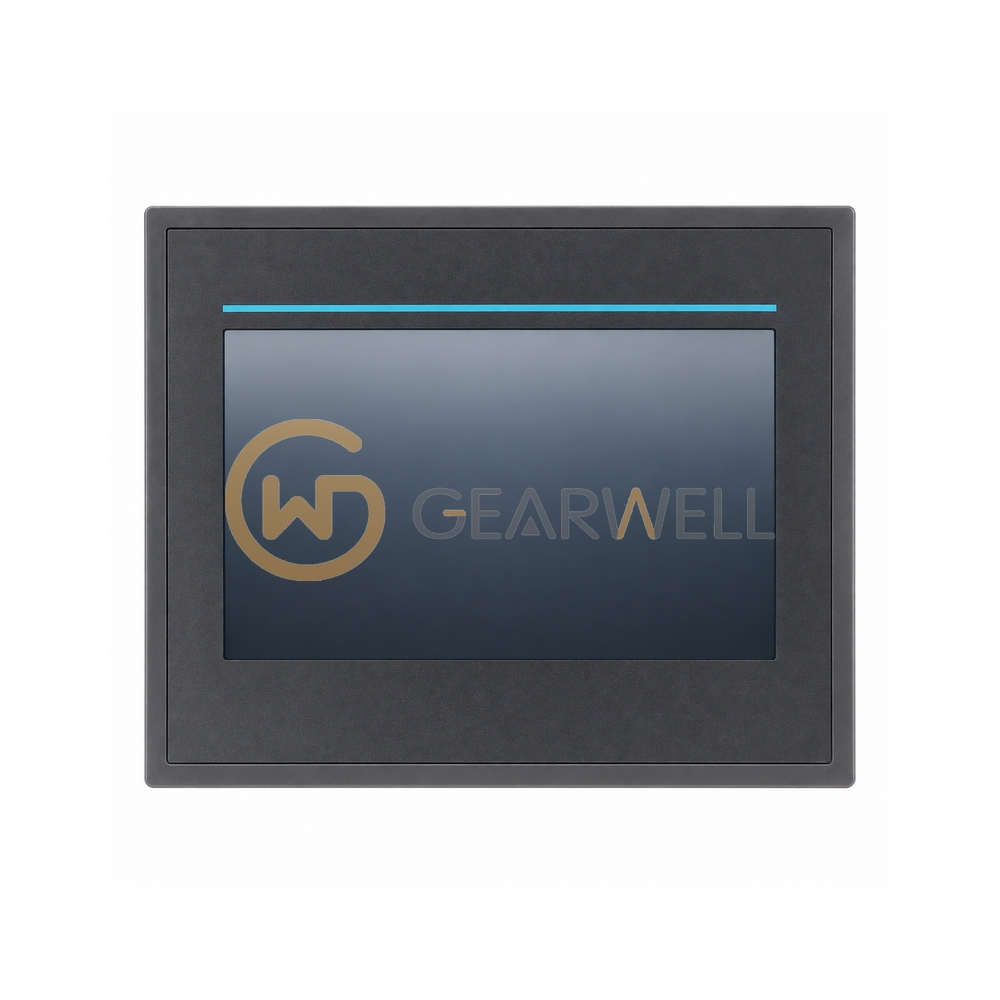

The Delta DOP-107EG is a DOP 100 Series Standard Ethernet Type HMI touch panel with a 7" TFT LCD at 800 x 600 pixels (SVGA) and 65,536 colors. It uses an ARM Cortex-A8 (800MHz) processor with 256 Mbytes flash ROM and 256 Mbytes RAM. Interfaces are one 10/100 Mbps Ethernet port, USB slave and USB host, an SD slot, a stereo audio output and serial ports for RS-232, RS-422 and RS-485. It runs on DC +24V (max. 8.4 W), has an IP65 / NEMA4 front, and measures 184 x 144 x 51.5 mm with a weight of 800 g.
Technical reference
| Product name | Delta DOP-107EG DOP-100 HMI Touch Panel |
|---|---|
| Brand | DELTA |
| Model | DOP-107EG |
| Category | HMIs & Industrial PCs |
