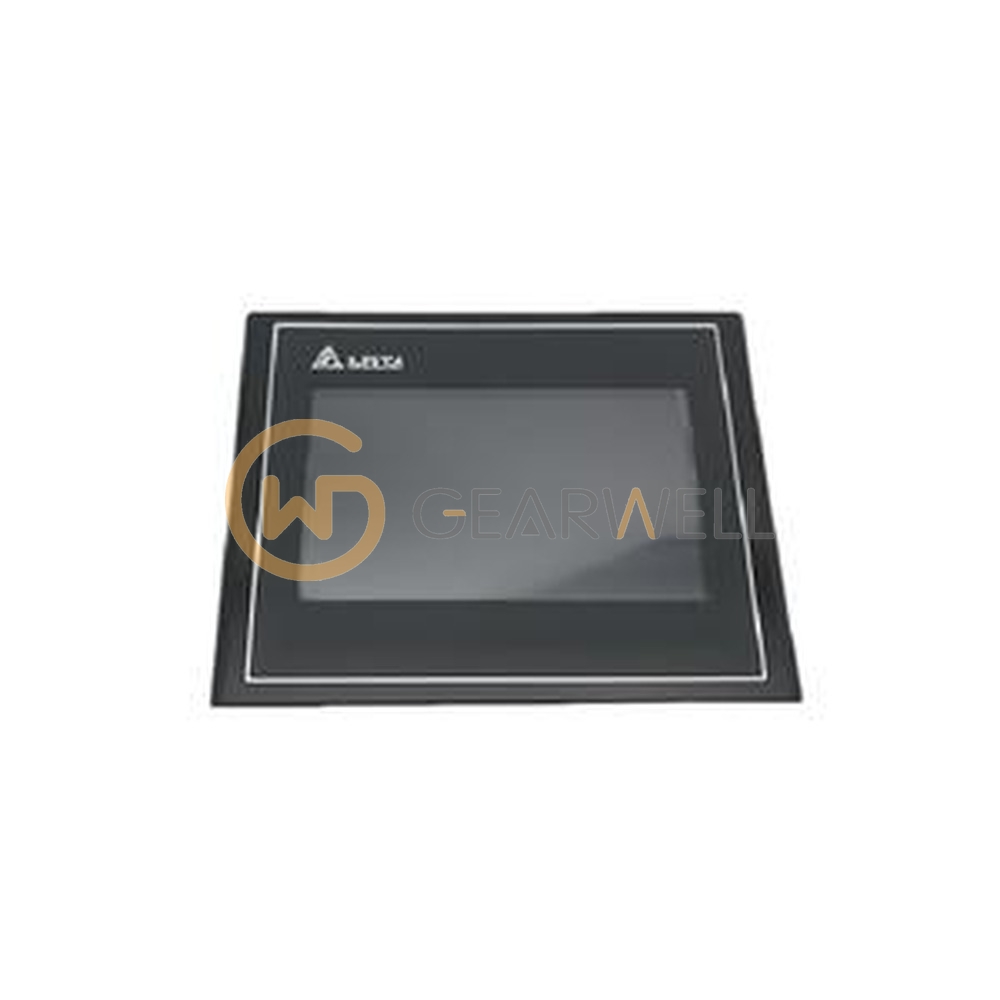

DELTA DOP-103WQ HMI Touch Panel
- Brand
- DELTA
- Model
- DOP-103WQ
- GEARWELL SKU
- GWP-000006373
- Category
- HMIs & Industrial PCs
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsProduct overview
The Delta DOP-103WQ is a DOP 100 Series Advanced Narrow Frame Type HMI touch panel with a 4.3" TFT LCD at 480 x 272 pixels (WQVGA) and 65,536 colors. It runs on an ARM Cortex-A8 (800MHz) processor with 256 MB flash ROM and 512 MB RAM, and has a four-wire resistive touch panel. Connections are one 10/100 Mbps Ethernet port, USB slave and USB host, COM1 RS-232/RS-485 and COM2 RS-422/RS-485, with built-in power isolation. It runs on DC +24V (max. 5.8 W), has an IP65 / NEMA4 front, and measures 137 x 103 x 37.1 mm with a weight of 280 g.
Technical reference
| Product name | DELTA DOP-103WQ HMI Touch Panel |
|---|---|
| Brand | DELTA |
| Model | DOP-103WQ |
| Category | HMIs & Industrial PCs |
