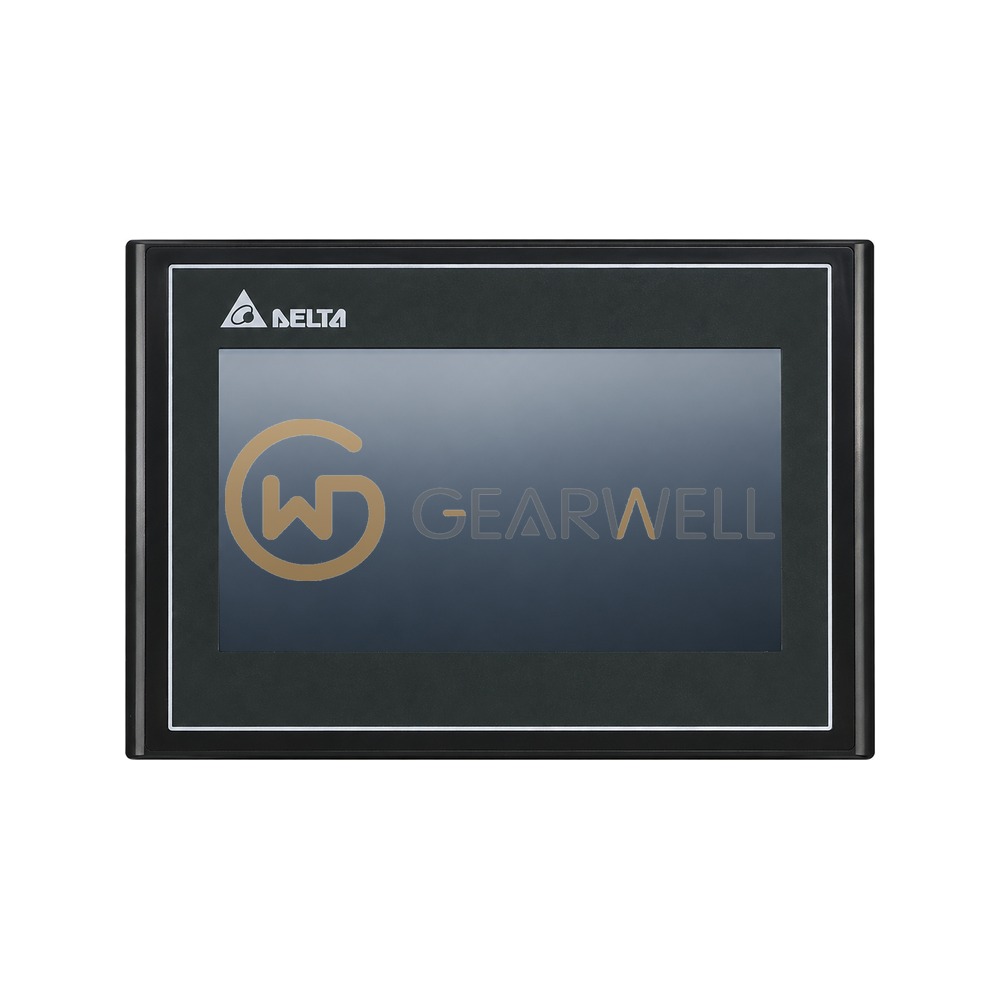

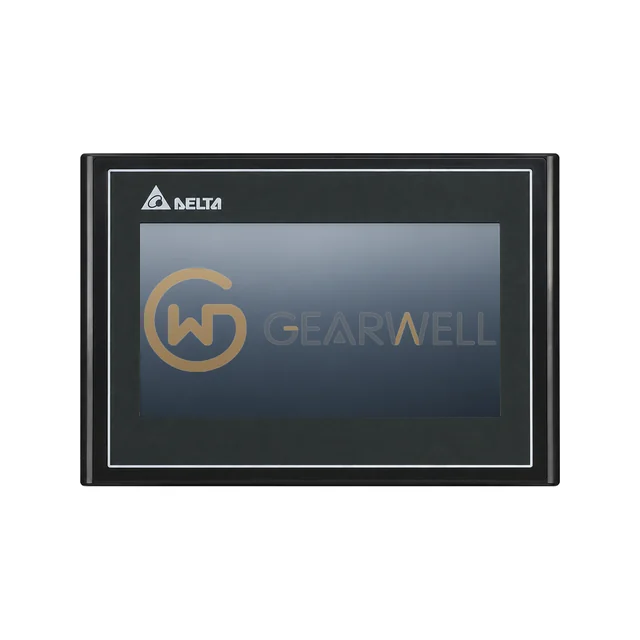

DELTA DOP-103BQ DOP-100 series HMI touch panel (basic)
- Brand
- DELTA
- Model
- DOP-103BQ
- GEARWELL SKU
- GWP-000014282
- Category
- HMIs & Industrial PCs
Key specifications
- CPU
- Cortex-A8 800 MHz
- RAM
- 256 MB
- ROM
- 256 MB
- USB
- 1 Slave / 1 Host
- Color
- 16-bit
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsProduct overview
The Delta DOP-103BQ is a DOP 100 Series Basic Type HMI touch panel with a 4.3" TFT LCD at 480 x 272 pixels (WQVGA) and 65,536 colors. It uses an ARM Cortex-A8 (800MHz) processor with 256 Mbytes flash ROM and 256 Mbytes RAM, and has no Ethernet port. Interfaces are USB slave and USB host, COM1 RS-232/RS-485 and COM2 RS-422/RS-485. It runs on DC +24V (max. 5.67W), has an IP65 / NEMA4 front, and measures 137 x 103 x 37.1 mm with a weight of 280 g.
Technical reference
| Product name | DELTA DOP-103BQ DOP-100 series HMI touch panel (basic) |
|---|---|
| Brand | DELTA |
| Model | DOP-103BQ |
| Category | HMIs & Industrial PCs |
| CPU | Cortex-A8 800 MHz |
| RAM | 256 MB |
| ROM | 256 MB |
| USB | 1 Slave / 1 Host |
| Color | 16-bit |
| Display | 4.3" TFT |
| COM Port | 2 Serial COM Ports |
| Resolution (Pixels) | 480 x 272 |
