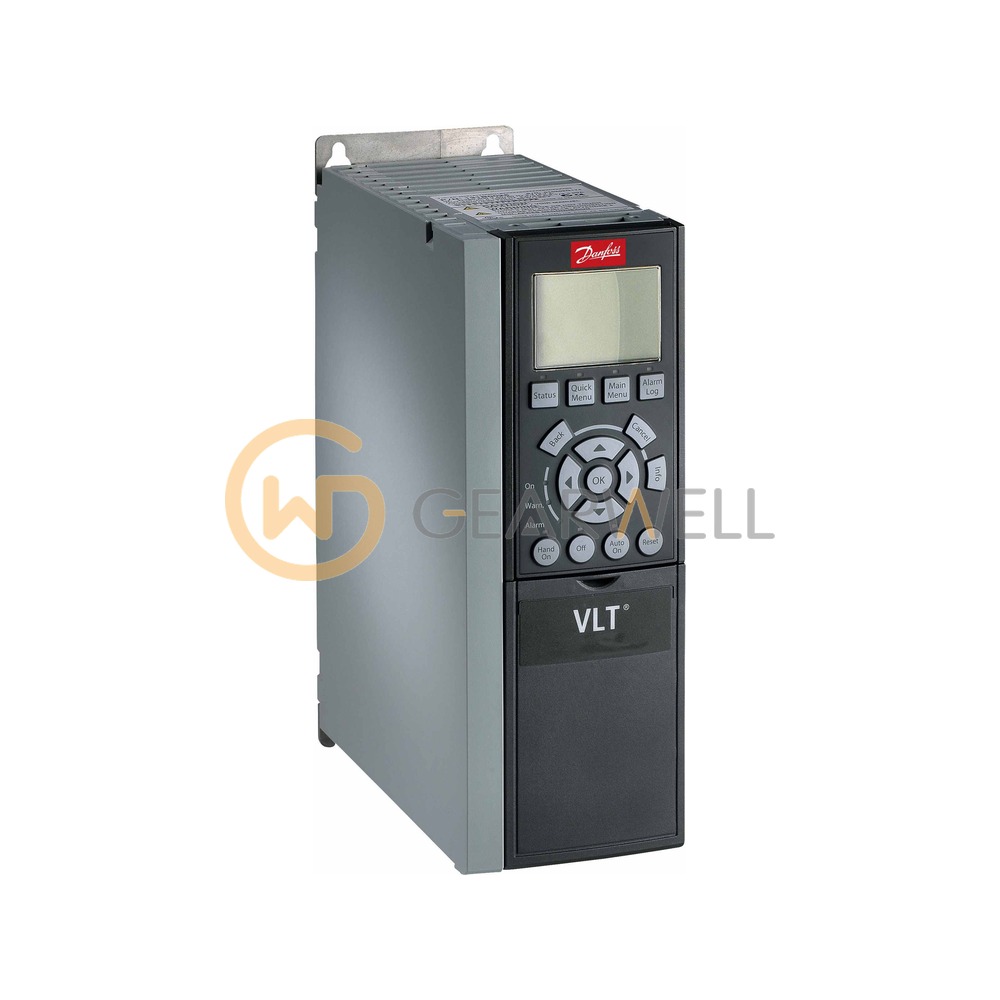

Danfoss FC-302P5K5T5E20 AutomationDrive FC 302 AC Drive
- Brand
- DANFOSS
- Model
- FC-302P5K5T5E20
- GEARWELL SKU
- GWP-000011638
- Category
- Variable Frequency Drives
Key specifications
- Frame size
- A3
- Enclosure (code E20)
- IP20 / Chassis
- Collected type code
- FC-302P5K5T5E20
- Mains supply (code T5)
- 3-phase 380-500 V AC
- Rated power (code P5K5)
- 5.5 kW / 7.5 HP
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsProduct overview
The Danfoss FC-302P5K5T5E20 is a VLT® AutomationDrive FC 302 AC drive (characters 4-6 = 302) with power size P5K5, rated 5.5 kW / 7.5 hp typical shaft output at high overload (160% 1 min/10 min), for 3-phase 380-500 V AC mains (voltage code T5). It delivers 13 A continuous and 20.8 A intermittent (60 s) output current on 380-440 V, or 11 A and 17.6 A on 441-500 V, with a continuous input current of 11.7 A at 400 V and an estimated power loss of 187 W. The code E20 selects the IP20/Chassis version, which is enclosure size A3. The RFI filter, brake, LCP, coating and option characters are not specified in this catalog number, so the full type code must be confirmed before ordering.
Technical reference
| Product name | Danfoss FC-302P5K5T5E20 AutomationDrive FC 302 AC Drive |
|---|---|
| Brand | DANFOSS |
| Model | FC-302P5K5T5E20 |
| Category | Variable Frequency Drives |
| Frame size | A3 |
| Enclosure (code E20) | IP20 / Chassis |
| Collected type code | FC-302P5K5T5E20 |
| Mains supply (code T5) | 3-phase 380-500 V AC |
| Rated power (code P5K5) | 5.5 kW / 7.5 HP |
| Remaining positions options | RFI H1 / H2 / H3 / H4, brake X / B, LCP X / N / G, coating X / C, A option AX / A0 / AL / AN ... (specify on order) |
