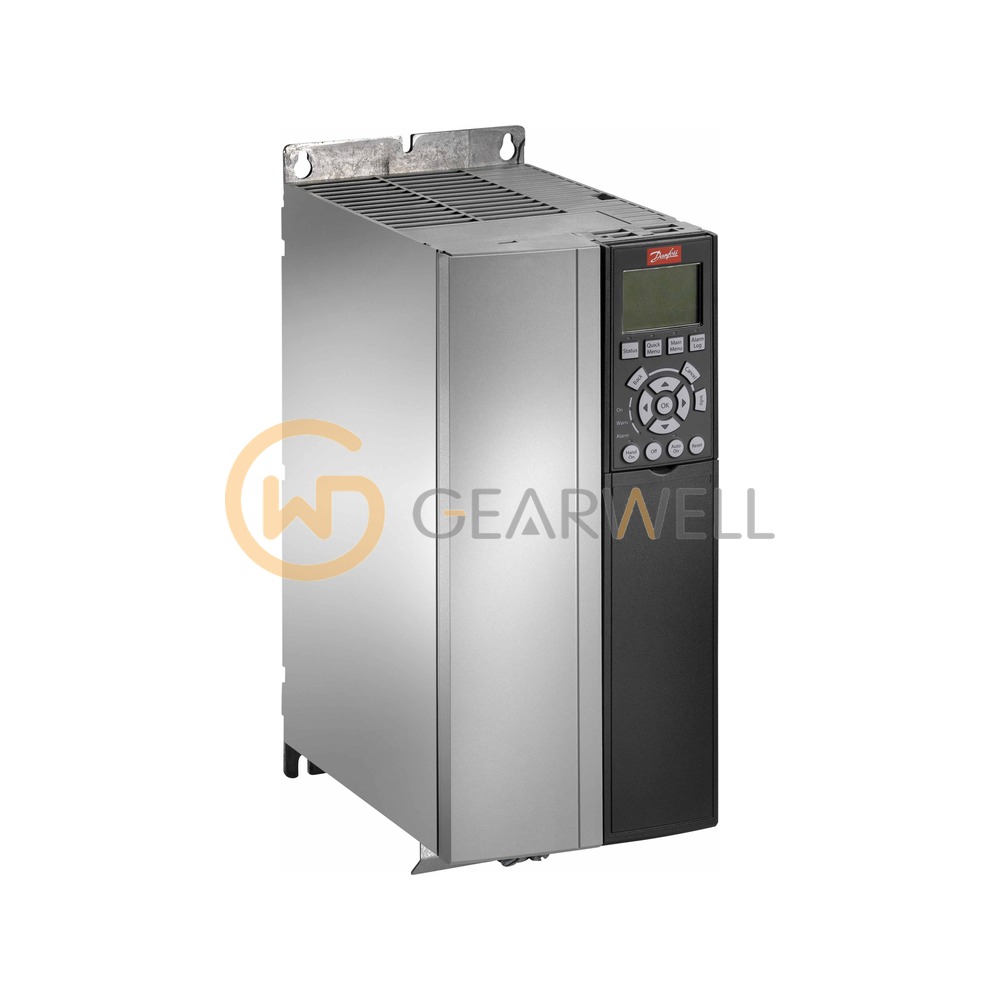

Danfoss FC-102P18KT4E20H2XGCXXXSXXXXAXBXCXXXXDX AC Drive

Product overview

The Danfoss FC-102P18KT4E20H2XGCXXXSXXXXAXBXCXXXXDX is a VLT® HVAC Drive FC 102 frequency converter for HVAC fan, pump and compressor control, given here with a complete type code. In the type code, P18K is 18.5 kW / 25 hp, T4 is 3x380-480 V AC, E20 is IP20/chassis, H2 is an RFI filter class A2 (C3), X means no brake IGBT, G is the graphical LCP 102 and C is a coated PCB class 3C3. The rest of the code specifies no mains option, standard cable entries, no adaptation, the latest released standard software (SXXX), the standard language package, no fieldbus or B, C0 and C1 options, and no DC input (DX). For normal overload (110 % for 1 min in 10 min) it is rated at 37.5 A continuous and 41.3 A intermittent output current at 3x380-440 V, 34 A and 37.4 A at 3x441-480 V, with 34.0 A continuous input current and 465 W estimated power loss, in IP20 enclosure size B3.
