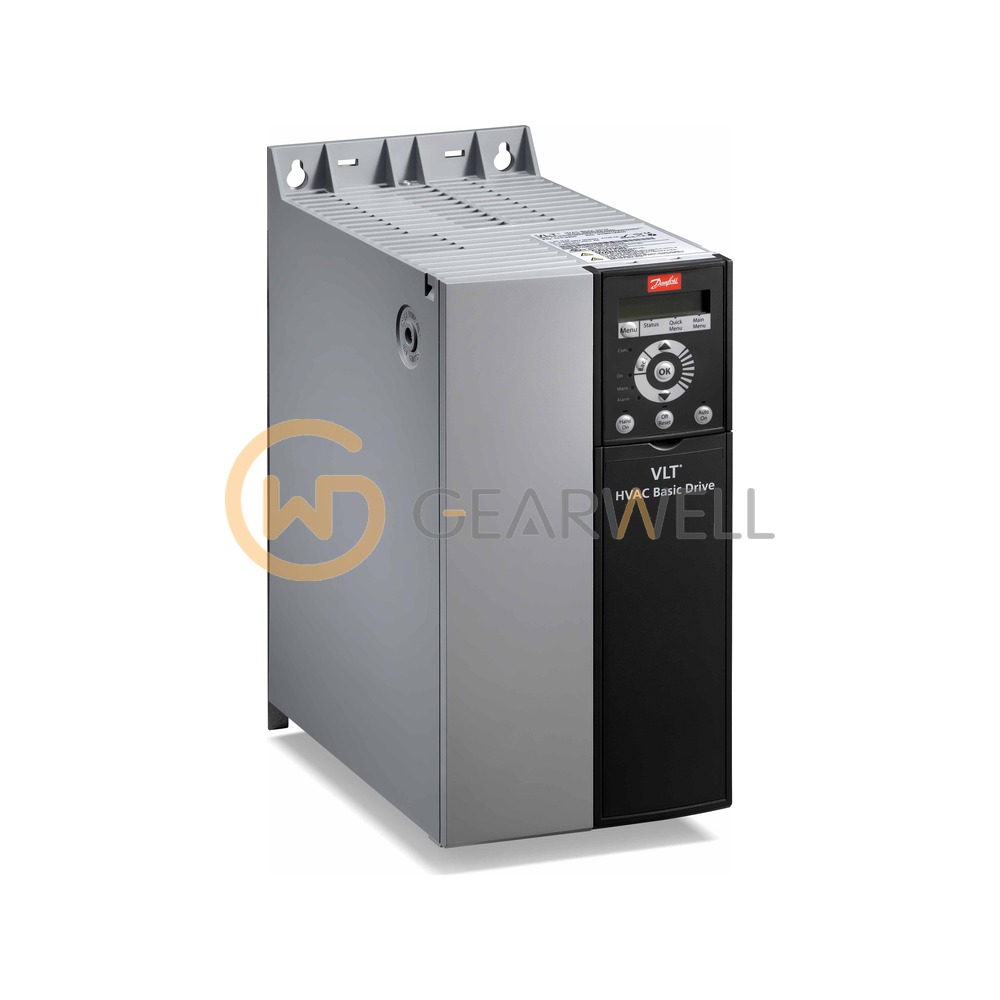

Danfoss FC-101P22KT4E20H4X HVAC Basic Drive FC 101 AC Drive
- Brand
- DANFOSS
- Model
- FC-101P22KT4E20H4X
- GEARWELL SKU
- GWP-000011629
- Category
- Variable Frequency Drives
Key specifications
- Enclosure (code E20)
- IP20 / Chassis
- RFI filter (code H4)
- RFI class A1 (C2)
- Collected type code
- FC-101P22KT4E20H4X
- Brake chopper (code X)
- No
- Mains supply (code T4)
- 3-phase 380-480 V AC
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsProduct overview
The Danfoss FC-101P22KT4E20H4X is a VLT® HVAC Basic Drive FC 101 frequency converter for basic HVAC fan and pump duty, identified by a partial type code. In the type code, P22K is the 22 kW (30 hp) power size, T4 means 3x380-480 V AC mains, E20 an IP20/chassis enclosure, H4 an RFI filter class A1, and the X at character 18 indicates no brake chopper. At 40 °C ambient it delivers 42.5 A continuous and 46.8 A intermittent output current at 3x380-440 V, and 40 A and 44 A at 3x441-480 V; the IP20 unit is enclosure size H5 and weighs 9.5 kg. Characters 19-39 (display, PCB coating, software and options) are not part of this catalog number, so confirm the complete type code before ordering.
Technical reference
| Product name | Danfoss FC-101P22KT4E20H4X HVAC Basic Drive FC 101 AC Drive |
|---|---|
| Brand | DANFOSS |
| Model | FC-101P22KT4E20H4X |
| Category | Variable Frequency Drives |
| Enclosure (code E20) | IP20 / Chassis |
| RFI filter (code H4) | RFI class A1 (C2) |
| Collected type code | FC-101P22KT4E20H4X |
| Brake chopper (code X) | No |
| Mains supply (code T4) | 3-phase 380-480 V AC |
| Rated power (code P22K) | 22 kW / 30 HP |
| Remaining positions options | LCP / PCB coating / mains option / software / A-B-C-D options, e.g. XCXXXSXXXXAXBXCXXXXDX = order no. 131L9872 (specify on order) |
