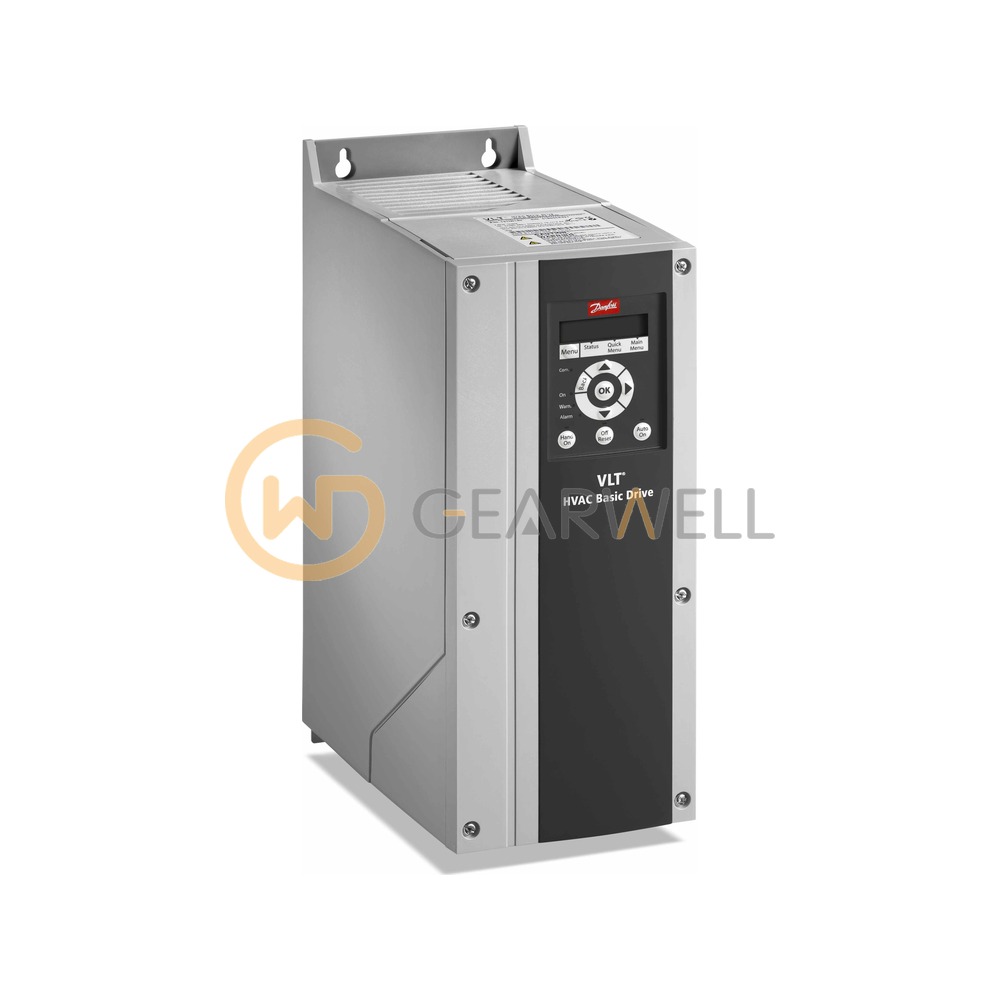

Danfoss FC-101P18KT4E5AH2X HVAC Basic Drive FC 101 AC Drive
- Brand
- DANFOSS
- Model
- FC-101P18KT4E5AH2X
- GEARWELL SKU
- GWP-000011628
- Category
- Variable Frequency Drives
Key specifications
- Enclosure (code E5A)
- IP54 (not TYPE 12)
- RFI filter (code H2)
- RFI Filter
- Collected type code
- FC-101P18KT4E5AH2X
- Brake chopper (code X)
- No
- Mains supply (code T4)
- 3-phase 380-480 V AC
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsProduct overview
The Danfoss FC-101P18KT4E5AH2X is a VLT® HVAC Basic Drive FC 101 frequency converter in the IP54 version, identified by a partial type code. In the type code, P18K is the 18.5 kW (25 hp) power size, T4 is 3x380-480 V AC mains, E5A is the IP54 enclosure, H2 is an RFI filter class A2 and X at character 18 means no brake chopper. It delivers 37 A continuous and 40.7 A intermittent output current at 3x380-440 V, or 34 A and 37.4 A at 3x441-480 V (40 °C ambient), in IP54 enclosure size I4 weighing 13.8 kg; IP54 units are supplied with the local control panel mounted. Characters 19-39 are not given in this catalog number, so the full type code must be confirmed before ordering.
Technical reference
| Product name | Danfoss FC-101P18KT4E5AH2X HVAC Basic Drive FC 101 AC Drive |
|---|---|
| Brand | DANFOSS |
| Model | FC-101P18KT4E5AH2X |
| Category | Variable Frequency Drives |
| Enclosure (code E5A) | IP54 (not TYPE 12) |
| RFI filter (code H2) | RFI Filter |
| Collected type code | FC-101P18KT4E5AH2X |
| Brake chopper (code X) | No |
| Mains supply (code T4) | 3-phase 380-480 V AC |
| Rated power (code P18K) | 18.5 kW / 25 HP |
| Remaining positions options | LCP / PCB coating / mains option / software / A-B-C-D options, e.g. AXXXXSXXXXAXBXCXXXXDX = order no. 131N0195 (specify on order) |
