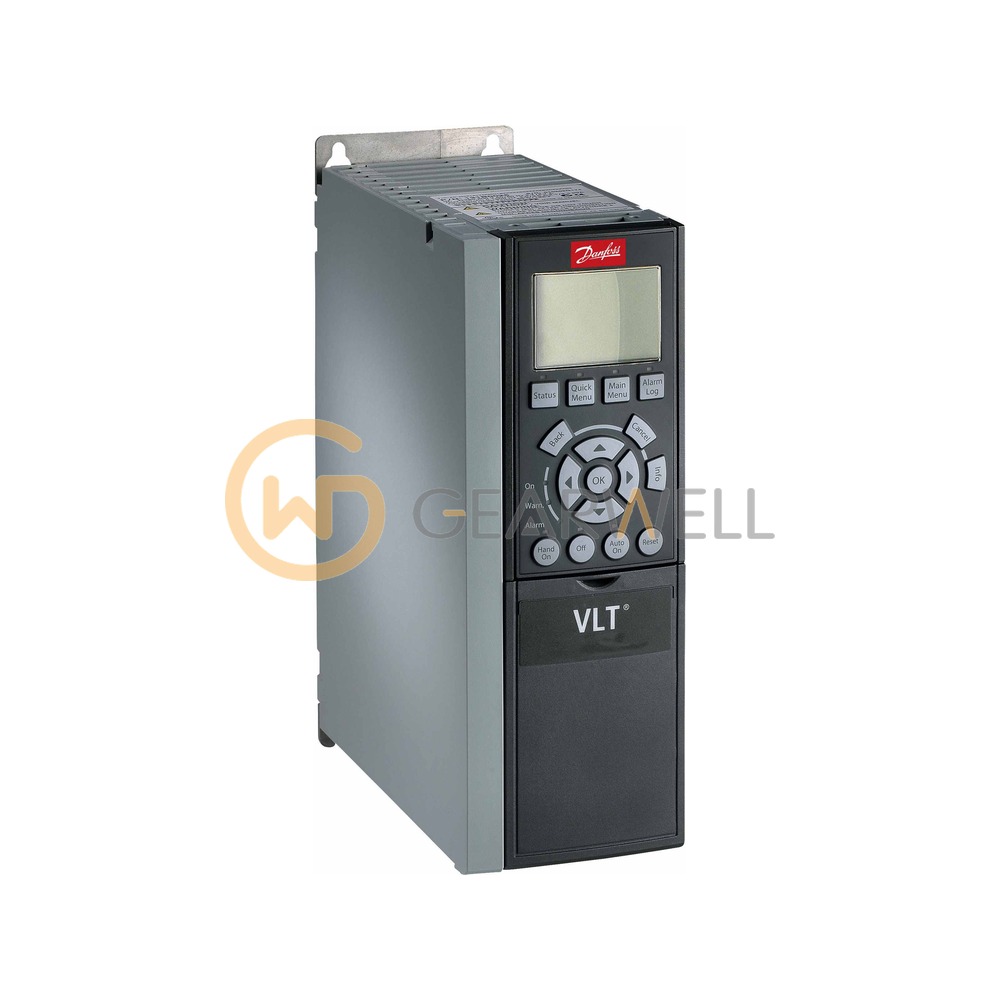

Danfoss FC-103P1K1T2E20H2X Refrigeration Drive FC 103 AC Drive
- Brand
- DANFOSS
- Model
- FC-103P1K1T2E20H2X
- GEARWELL SKU
- GWP-000011630
- Category
- Variable Frequency Drives
Key specifications
- Frame size
- A2
- LCP options
- X (none) / G (graphical) (specify on order)
- Enclosure (code E20)
- IP20 / Chassis
- RFI filter (code H2)
- RFI filter Class A2
- Collected type code
- FC-103P1K1T2E20H2X
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsProduct overview
The Danfoss FC-103P1K1T2E20H2X is a VLT® Refrigeration Drive FC 103 frequency converter for compressors, condenser fans and pumps in refrigeration systems, identified by a partial type code. In the type code, P1K1 is 1.1 kW / 1.5 HP, T2 is 3x200/240 V AC mains, E20 is IP20/chassis, H2 is an RFI filter class A2 (C3) and X at character 18 means no brake IGBT. This size delivers 6.6 A continuous and 7.3 A intermittent output current, with 5.9 A continuous input current and 63 W estimated power loss, and sits in enclosure A2 with an IP20 weight of 4.9 kg. The catalog number stops after the braking character, so the LCP, PCB coating, mains, software and option characters are not specified and the full type code must be confirmed before ordering.
Technical reference
| Product name | Danfoss FC-103P1K1T2E20H2X Refrigeration Drive FC 103 AC Drive |
|---|---|
| Brand | DANFOSS |
| Model | FC-103P1K1T2E20H2X |
| Category | Variable Frequency Drives |
| Frame size | A2 |
| LCP options | X (none) / G (graphical) (specify on order) |
| Enclosure (code E20) | IP20 / Chassis |
| RFI filter (code H2) | RFI filter Class A2 |
| Collected type code | FC-103P1K1T2E20H2X |
| PCB coating options | X (not coated) / C (coated) (specify on order) |
| Brake chopper (code X) | No |
| Mains supply (code T2) | 3-phase 200-240 V AC |
| Rated power (code P1K1) | 1.1 kW / 1.5 HP |
| A / B / D option positions | AX / AZ, BX / B0, DX / D0 (specify on order) |
