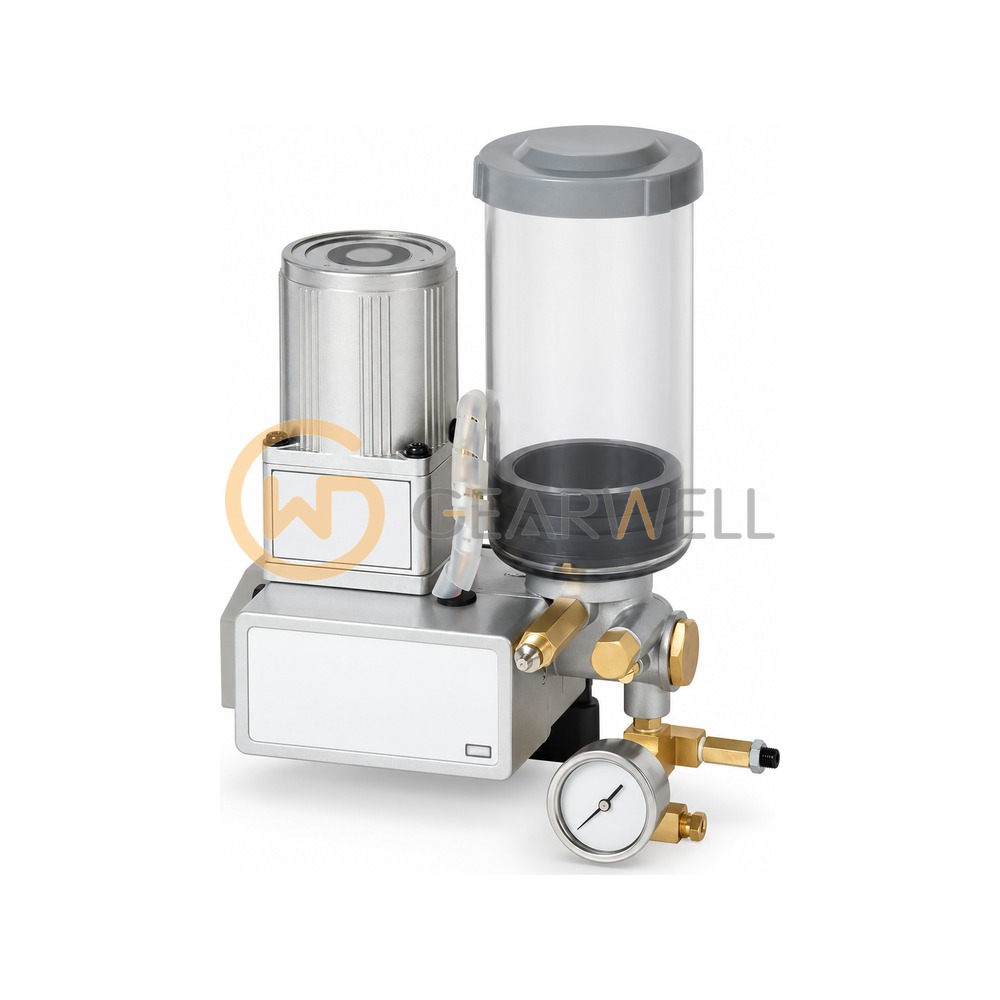

CHENYING KSC-30 Resistance Type Grease Electric Lubricator 600cc
- Brand
- CHENYING
- Model
- KSC-30
- GEARWELL SKU
- GWP-000011920
- Category
- Lubrication Parts
Key specifications
- Hertz
- 50/60Hz Compatible / --
- N.W. (kg)
- 3.68
- Series
- KSC Resistance Type Grease Electric Lubricator
- Width (mm)
- 135
- Height (mm)
- 288
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsTechnical reference
| Product name | CHENYING KSC-30 Resistance Type Grease Electric Lubricator 600cc |
|---|---|
| Brand | CHENYING |
| Model | KSC-30 |
| Category | Lubrication Parts |
| Hertz | 50/60Hz Compatible / -- |
| N.W. (kg) | 3.68 |
| Series | KSC Resistance Type Grease Electric Lubricator |
| Width (mm) | 135 |
| Height (mm) | 288 |
| Length (mm) | 220 |
| AC110V, AC220V | DC24V / M = Motor |
| Tank Capacity | 600cc |
| Discharge Bore | Ø4, Ø6, Ø8, PT1/8 |
| Voltage options | AC110V / AC220V / DC24V (specify on order) |
| Suitable Viscosity | Grease, NLGI 000-0 |
| Max. Discharge Volume | 15cc/min |
| Magnetic Level Switch | Optional (NC or NO Contact) |
| Discharge Bore options | φ4 / φ6 / φ4 W/Pressure Gauge / φ6 W/Pressure Gauge / φ8 / φ8 W/Pressure Gauge / PT1/8 / PT1/8 W/Pressure Gauge (specify on order) |
| Fixed Hole Distance (mm) | 65 |
| Max. Operating Pressure | 150kgf/c㎡ |
| Optional special requests | Add a NC Contact Magnetic Level Switch / Add a NO Contact Magnetic Level Switch |
