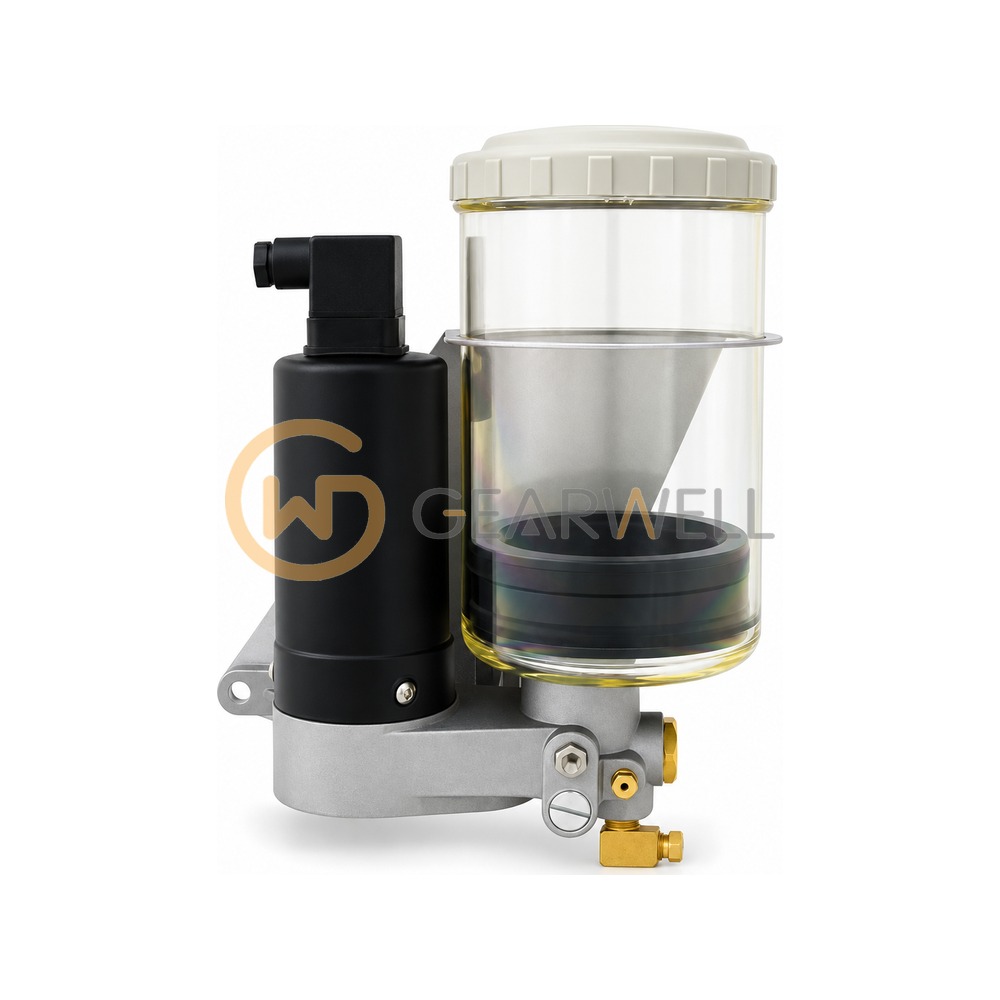

CHENYING KGA-40 Resistance Type Grease Electric Lubricator 800cc
- Brand
- CHENYING
- Model
- KGA-40
- GEARWELL SKU
- GWP-000011909
- Category
- Lubrication Parts
Key specifications
- Ampere
- 2.1A
- Series
- KGA Resistance Type Grease Electric Lubricator
- Voltage
- DC24V
- Motor Power
- 35±3W
- Tank Capacity
- 800cc
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsTechnical reference
| Product name | CHENYING KGA-40 Resistance Type Grease Electric Lubricator 800cc |
|---|---|
| Brand | CHENYING |
| Model | KGA-40 |
| Category | Lubrication Parts |
| Ampere | 2.1A |
| Series | KGA Resistance Type Grease Electric Lubricator |
| Voltage | DC24V |
| Motor Power | 35±3W |
| Tank Capacity | 800cc |
| Discharge Bore | Ø6, Ø8 |
| Suitable Viscosity | Grease, NLGI 000-0 |
| Max. Discharge Volume | 16cc/min |
| Discharge Bore options | φ6 x PT1/4 / φ8 x PT1/4 (specify on order) |
| Max. Operating Pressure | 150kgf/c㎡ |
| Optional special requests | Add a NC Contact Magnetic Level Switch / Add a NO Contact Magnetic Level Switch |
