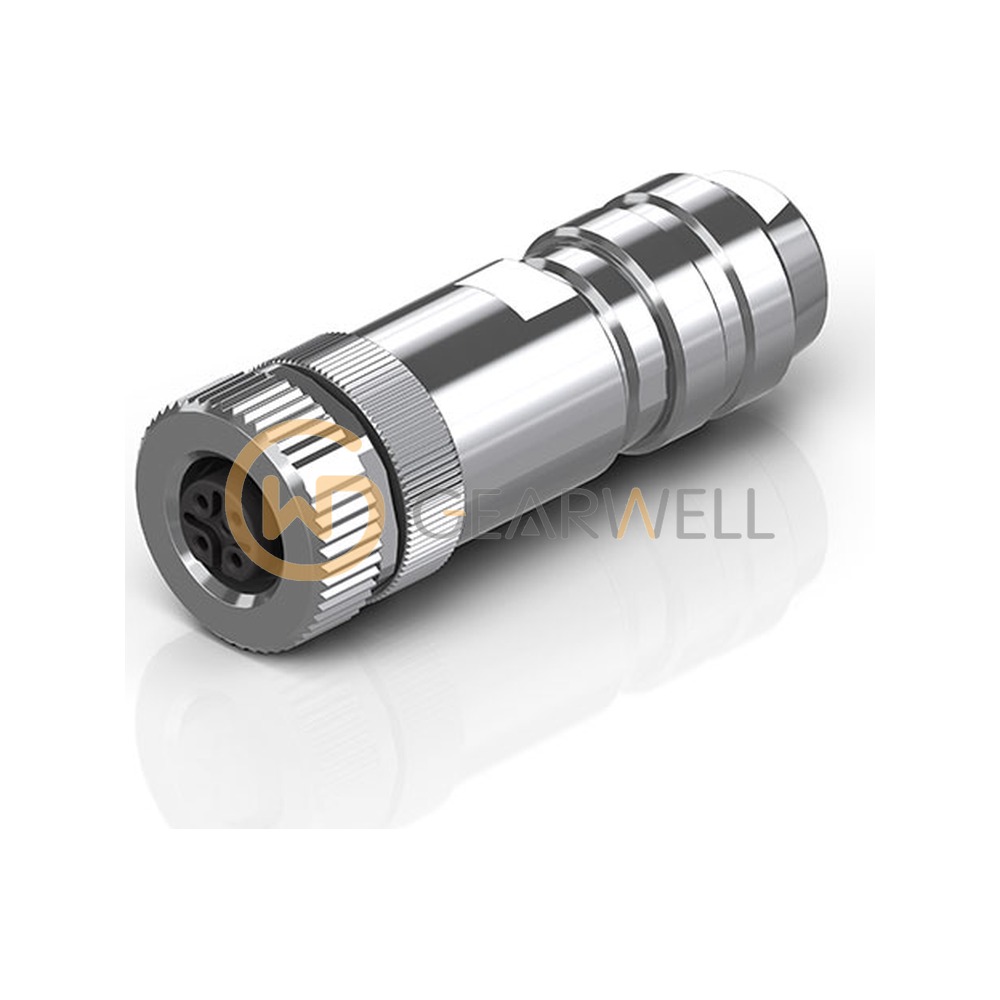

BECKHOFF ZS1000-0620 M12 Field-Assembly Socket B-Coded PROFIBUS
- Brand
- BECKHOFF
- Model
- ZS1000-0620
- GEARWELL SKU
- GWP-000011727
- Category
- Terminals, Cables & Connectors
Key specifications
- Shielding
- yes
- Connector type
- socket, female, straight
- Positions / coding
- 5-pin, B-coded
- Wire termination
- screw connection
- Installation size
- M12
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsProduct overview
Beckhoff ZS1000-0620 is a shielded, field-assembly M12 socket, 5-pin B-coded, for PROFIBUS, Modbus and RS485 cables. It has screw terminals for wires up to 0.75 mm² and cable diameters of 6.0 to 8.0 mm. Check the full order number when requesting a quote.
Technical reference
| Product name | BECKHOFF ZS1000-0620 M12 Field-Assembly Socket B-Coded PROFIBUS |
|---|---|
| Brand | BECKHOFF |
| Model | ZS1000-0620 |
| Category | Terminals, Cables & Connectors |
| Shielding | yes |
| Connector type | socket, female, straight |
| Positions / coding | 5-pin, B-coded |
| Wire termination | screw connection |
| Installation size | M12 |
| Cable outer diameter | 6.0...8.0 mm |
| Rated current / voltage | 4 A / 60 V |
