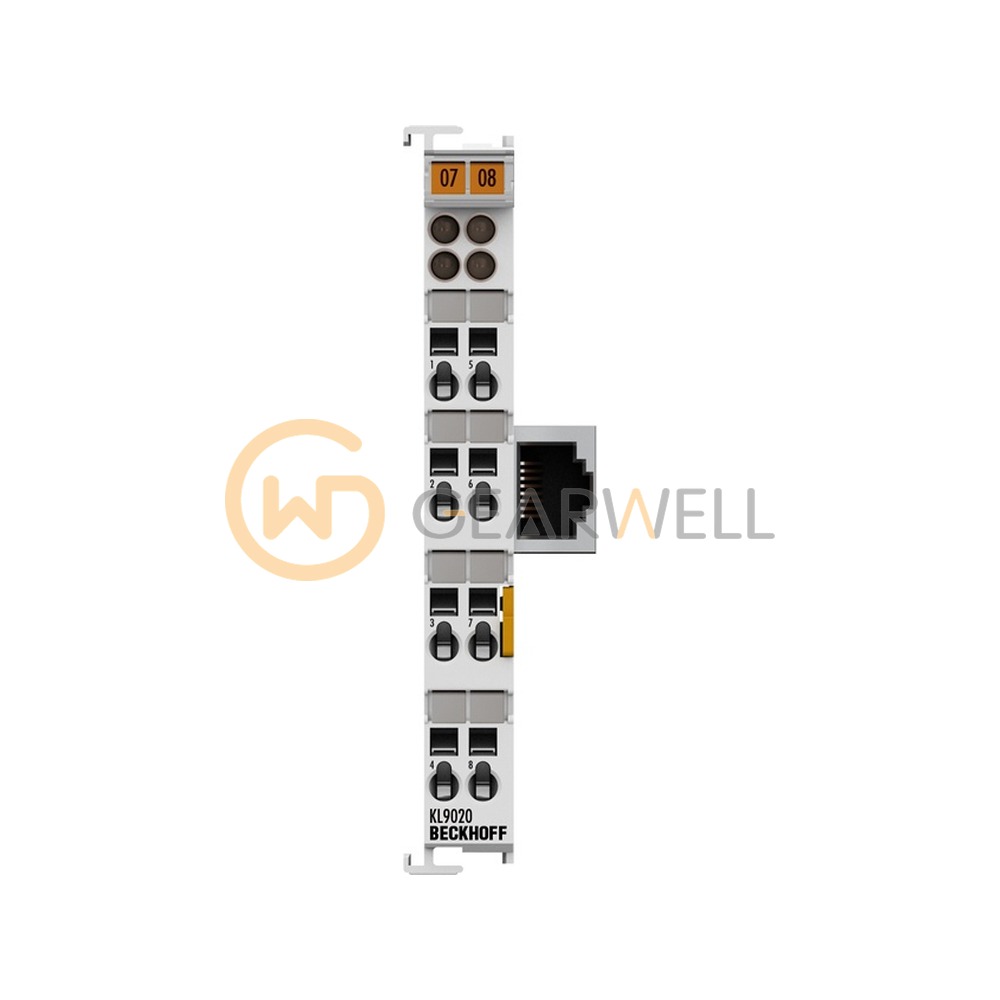

BECKHOFF KL9020 Terminal Bus Extension, End Terminal
- Brand
- BECKHOFF
- Model
- KL9020
- GEARWELL SKU
- GWP-000008287
- Category
- PLCs & I/O
Key specifications
- Weight
- approx. 45 g
- Bus interface
- 1 x RJ45 socket
- Power contacts
- max. 24 V DC/max. 10 A
- Electrical isolation
- 500 V (power contact/supply voltage/K-bus)
- Current consumption K-bus
- typ. 70 mA
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsProduct overview
Beckhoff KL9020 is a K-bus extension end terminal with an RJ45 socket, used to continue a Bus Terminal station via KL9050 extension couplers up to 5 m away (up to 31 KL9050). Check the full order number, including any suffix, on the terminal when requesting a quote.
Technical reference
| Product name | BECKHOFF KL9020 Terminal Bus Extension, End Terminal |
|---|---|
| Brand | BECKHOFF |
| Model | KL9020 |
| Category | PLCs & I/O |
| Weight | approx. 45 g |
| Bus interface | 1 x RJ45 socket |
| Power contacts | max. 24 V DC/max. 10 A |
| Electrical isolation | 500 V (power contact/supply voltage/K-bus) |
| Current consumption K-bus | typ. 70 mA |
| Distance between stations | max. 5 m between KL9020 and KL9050 |
| Max. number of bytes fieldbus | Bus Coupler dependency |
| Type/number of peripheral signals | Bus Coupler dependency |
