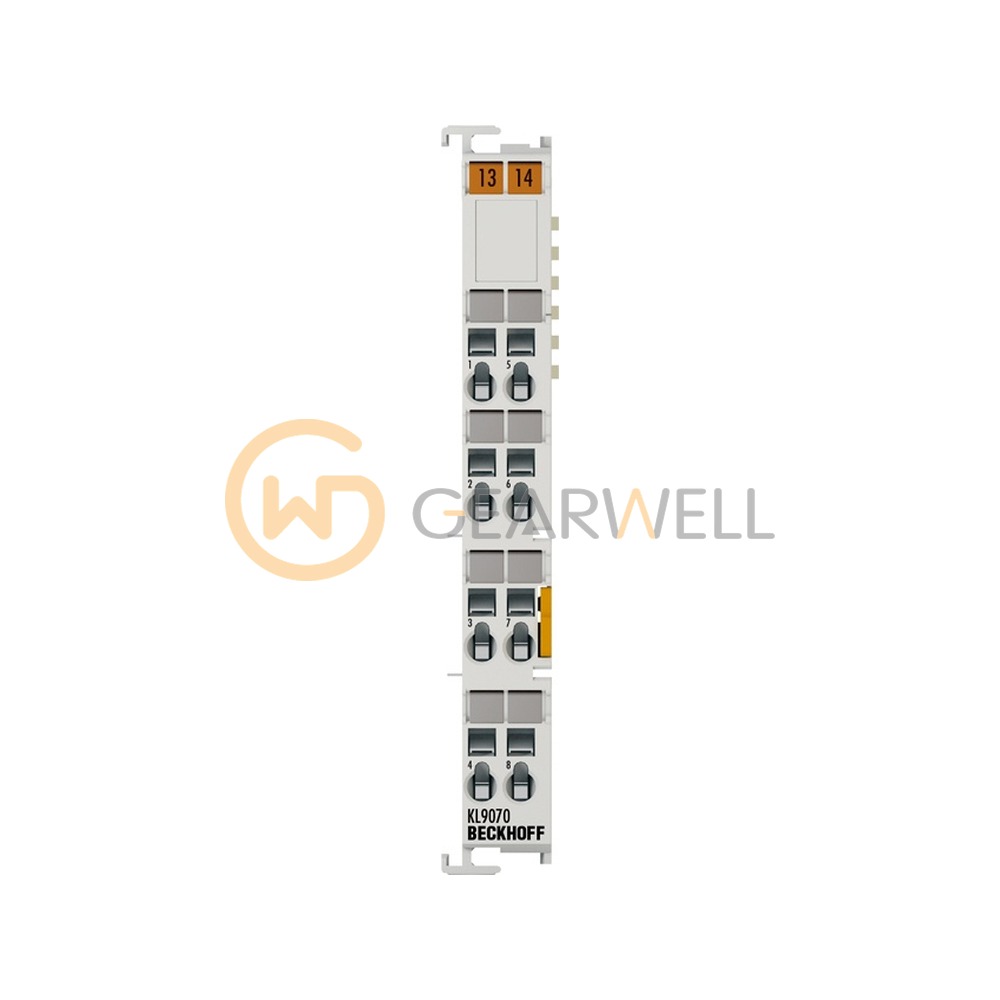

BECKHOFF KL9070 Shield Terminal
- Brand
- BECKHOFF
- Model
- KL9070
- GEARWELL SKU
- GWP-000008289
- Category
- PLCs & I/O
Key specifications
- Current load
- ≤ 10 A
- Nominal voltage
- ≤ 60 V
- Shield connection
- 8 x
- Electrical isolation
- yes
- K-bus, looped through
- yes
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsProduct overview
Beckhoff KL9070 is a shield terminal for Bus Terminal stations with 8 shield connections, which dissipates EMC interference to the DIN rail via large copper surfaces. It is rated up to 60 V and 10 A. Check the full order number, including any suffix, on the terminal when requesting a quote.
Technical reference
| Product name | BECKHOFF KL9070 Shield Terminal |
|---|---|
| Brand | BECKHOFF |
| Model | KL9070 |
| Category | PLCs & I/O |
| Current load | ≤ 10 A |
| Nominal voltage | ≤ 60 V |
| Shield connection | 8 x |
| Electrical isolation | yes |
| K-bus, looped through | yes |
| Bit width in the process image | 0 |
| Electrical connection to DIN rail | yes |
| Connection facility to additional power contact | no |
