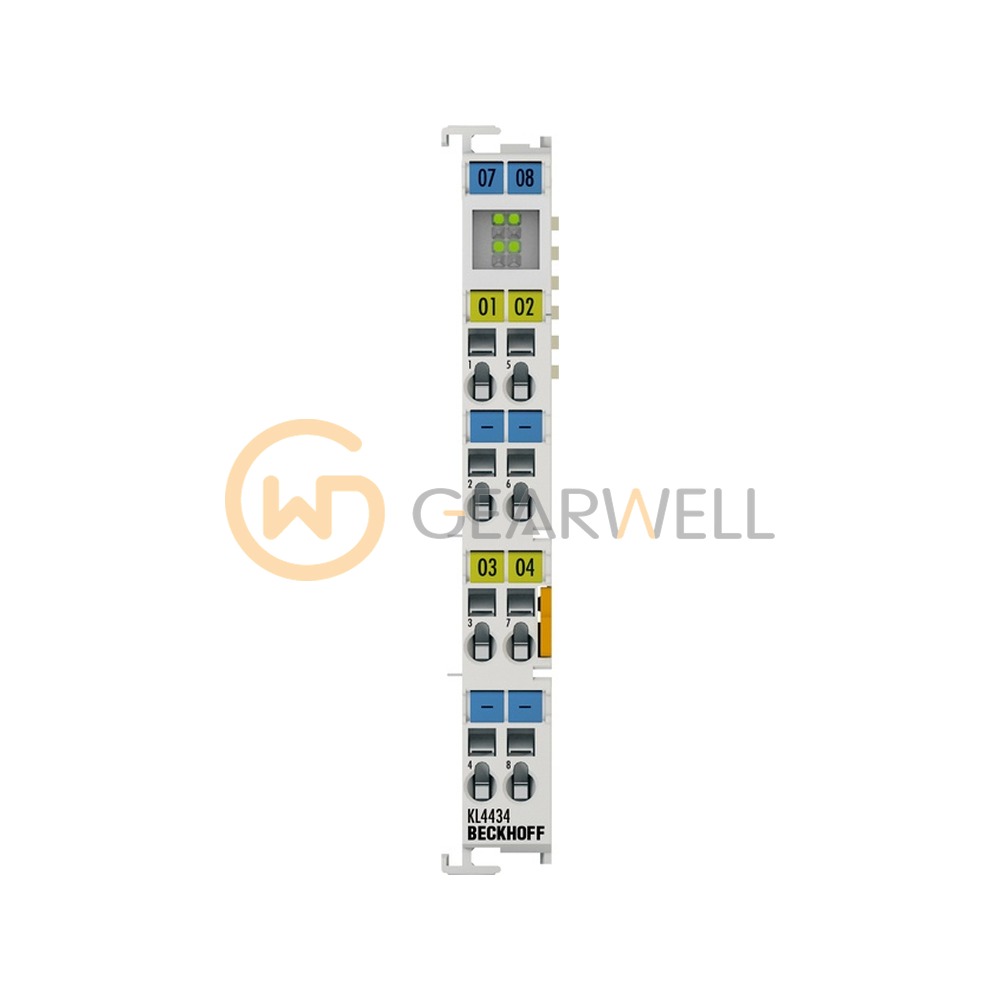

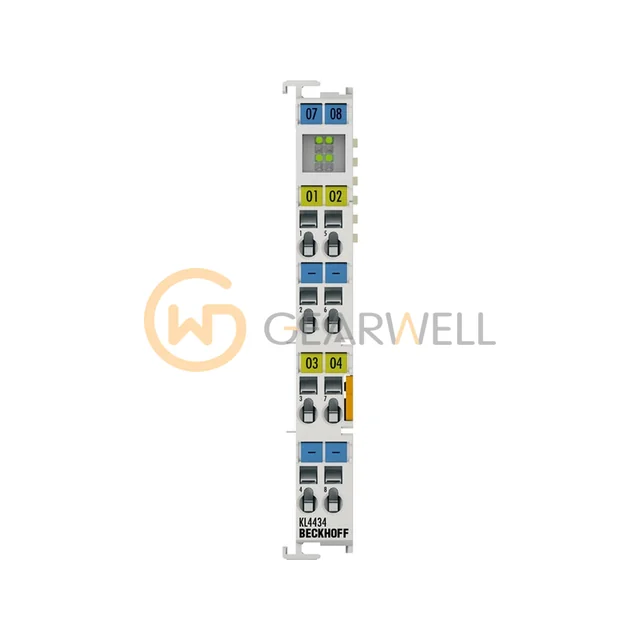

BECKHOFF KL4434 4-Channel Analog Output Bus Terminal
- Brand
- BECKHOFF
- Model
- KL4434
- GEARWELL SKU
- GWP-000008277
- Category
- PLCs & I/O
Key specifications
- Load
- > 5 kΩ (short-circuit proof)
- Resolution
- 12 bit
- Technology
- single-ended
- Output error
- < ±0.1% (relative to end value)
- Conversion time
- ~ 4 ms
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsProduct overview
Beckhoff KL4434 is a 4-channel analog output Bus Terminal (K-bus) for -10 to +10 V signals, with 12-bit resolution and an output error below ±0.1 % of the end value. Conversion takes about 4 ms, and outputs are short-circuit proof for loads above 5 kΩ. Check the full order number, including any suffix, on the terminal when requesting a quote.
Technical reference
| Product name | BECKHOFF KL4434 4-Channel Analog Output Bus Terminal |
|---|---|
| Brand | BECKHOFF |
| Model | KL4434 |
| Category | PLCs & I/O |
| Load | > 5 kΩ (short-circuit proof) |
| Resolution | 12 bit |
| Technology | single-ended |
| Output error | < ±0.1% (relative to end value) |
| Conversion time | ~ 4 ms |
| Number of outputs | 4 |
| Electrical isolation | 500 V (K-bus/signal voltage) |
| Current consumption power contacts | load only |
