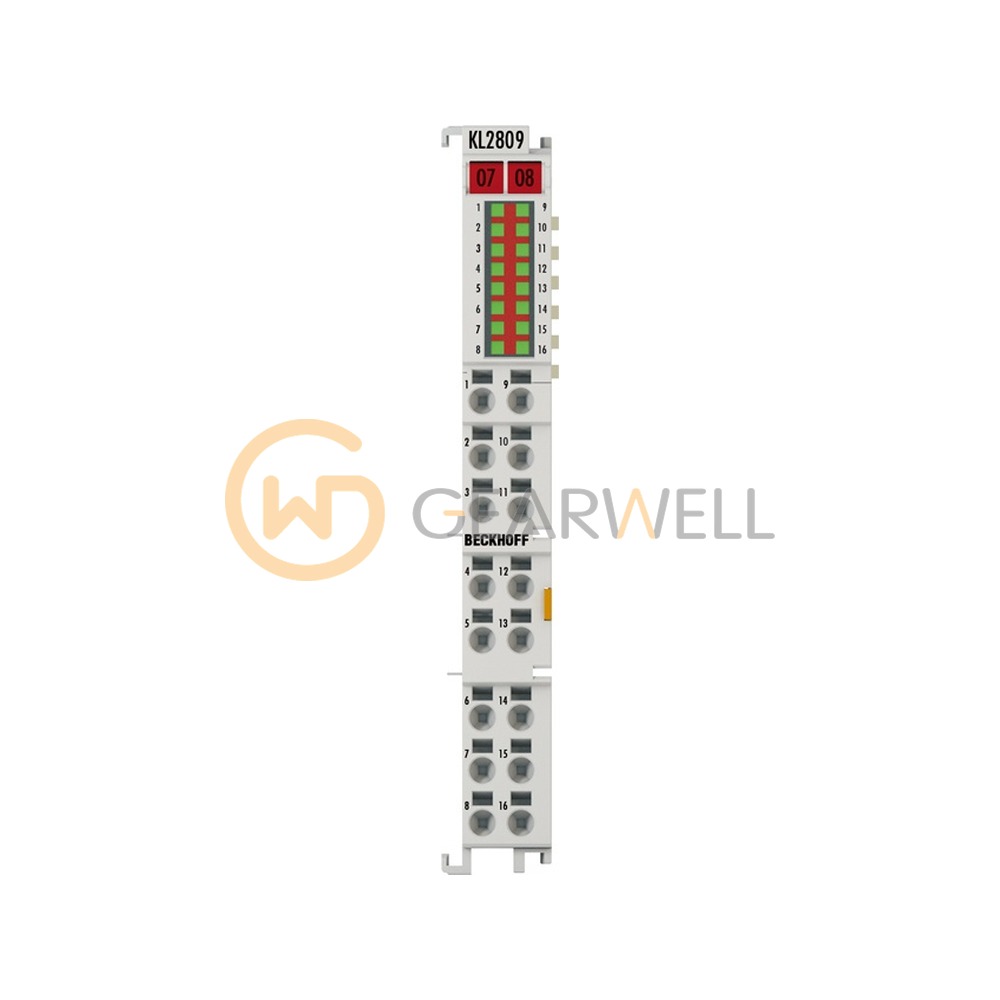

BECKHOFF KL2809 16-Channel Digital Output Bus Terminal
- Brand
- BECKHOFF
- Model
- KL2809
- GEARWELL SKU
- GWP-000008199
- Category
- PLCs & I/O
Key specifications
- Load type
- resistive, inductive, lamp load
- Nominal voltage
- 24 V DC (-15%/+20%)
- Number of outputs
- 16
- Max. output current
- 0.5 A (short-circuit proof) per channel
- Switching-off energy
- < 150 mJ/channel
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsProduct overview
Beckhoff KL2809 is a 16-channel digital output Bus Terminal (K-bus), switching 24 V DC loads at up to 0.5 A per channel with 1-wire connection. Outputs are short-circuit proof. Check the full order number, including any suffix, on the terminal when requesting a quote.
Technical reference
| Product name | BECKHOFF KL2809 16-Channel Digital Output Bus Terminal |
|---|---|
| Brand | BECKHOFF |
| Model | KL2809 |
| Category | PLCs & I/O |
| Load type | resistive, inductive, lamp load |
| Nominal voltage | 24 V DC (-15%/+20%) |
| Number of outputs | 16 |
| Max. output current | 0.5 A (short-circuit proof) per channel |
| Switching-off energy | < 150 mJ/channel |
| Connection technology | 1-wire |
| Short-circuit current | < 2 A |
| Reverse polarity protection | yes |
