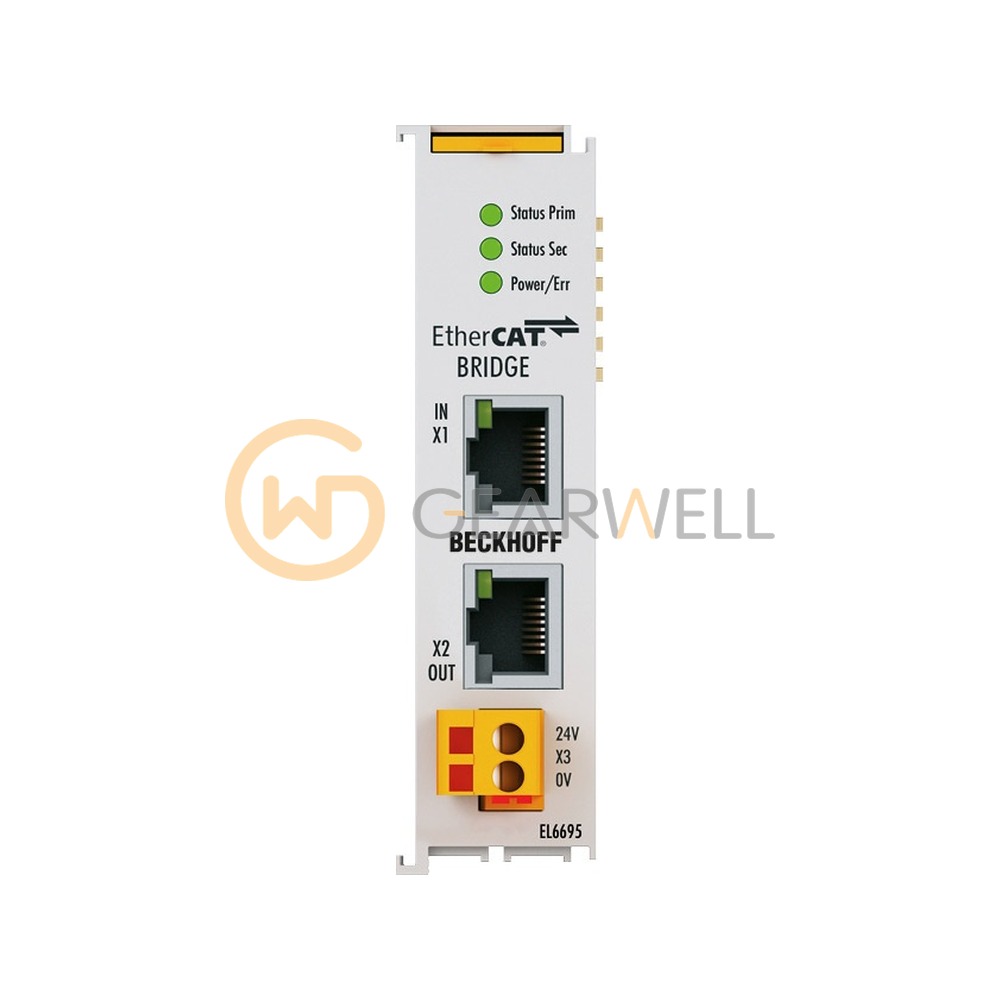

BECKHOFF EL6695 EtherCAT Bridge Terminal
- Brand
- BECKHOFF
- Model
- EL6695
- GEARWELL SKU
- GWP-000008105
- Category
- PLCs & I/O
Key specifications
- Weight
- approx. 75 g
- Function
- EtherCAT distributed clock synchronization, data exchange
- Cable length
- 100 m 100BASE-TX, secondary port
- Power supply
- primary: via the E-bus, secondary: via connector, 24 V
- Number of ports
- 2 x EtherCAT input/output
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsProduct overview
Beckhoff EL6695 is an EtherCAT bridge terminal for data exchange and distributed clock synchronization between two EtherCAT networks. The primary side is powered from the E-bus; the secondary side has 2 RJ45 ports and its own 24 V supply. Check the full order number, including any suffix, on the terminal when requesting a quote.
Technical reference
| Product name | BECKHOFF EL6695 EtherCAT Bridge Terminal |
|---|---|
| Brand | BECKHOFF |
| Model | EL6695 |
| Category | PLCs & I/O |
| Weight | approx. 75 g |
| Function | EtherCAT distributed clock synchronization, data exchange |
| Cable length | 100 m 100BASE-TX, secondary port |
| Power supply | primary: via the E-bus, secondary: via connector, 24 V |
| Number of ports | 2 x EtherCAT input/output |
| Current consumption | primary: E-bus 400 mA; secondary: 70 mA/24 V |
| Electrical isolation | 500 V (E-bus/secondary side) |
| Hardware diagnostics | status LEDs |
