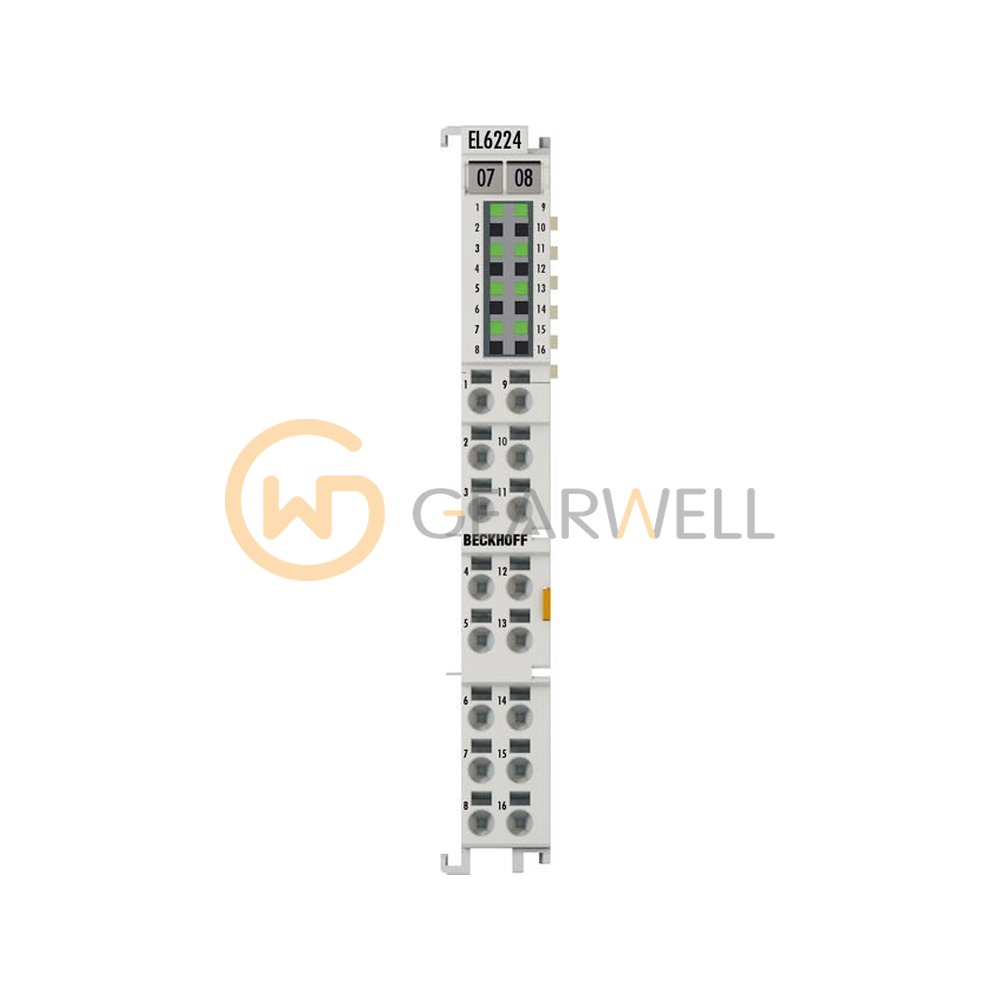

BECKHOFF EL6224 EtherCAT 4-Channel IO-Link Master Terminal
- Brand
- BECKHOFF
- Model
- EL6224
- GEARWELL SKU
- GWP-000008101
- Category
- PLCs & I/O
Key specifications
- Connection
- 3-wire
- Technology
- IO-Link input/output
- Cable length
- max. 20 m
- Power supply
- via E-bus and power contacts
- Field voltage
- 24 V DC via power contacts
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsProduct overview
Beckhoff EL6224 is a 4-channel IO-Link master terminal for EtherCAT, for 3-wire IO-Link devices at 4.8, 38.4 or 230.4 kbaud with cable lengths up to 20 m. Each port supplies up to 500 mA to its device, and every channel can be parameterized in TwinCAT. Check the full order number, including any suffix, on the terminal when requesting a quote.
Technical reference
| Product name | BECKHOFF EL6224 EtherCAT 4-Channel IO-Link Master Terminal |
|---|---|
| Brand | BECKHOFF |
| Model | EL6224 |
| Category | PLCs & I/O |
| Connection | 3-wire |
| Technology | IO-Link input/output |
| Cable length | max. 20 m |
| Power supply | via E-bus and power contacts |
| Field voltage | 24 V DC via power contacts |
| Transmission rate | 4.8 kbaud, 38.4 kbaud and 230.4 kbaud |
| IO-Link interfaces | 4 |
| Electrical isolation | 500 V (E-bus/signal voltage) |
