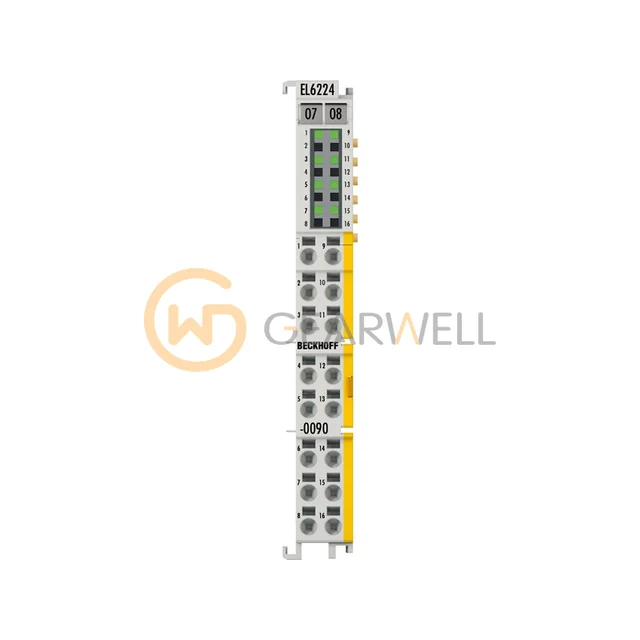

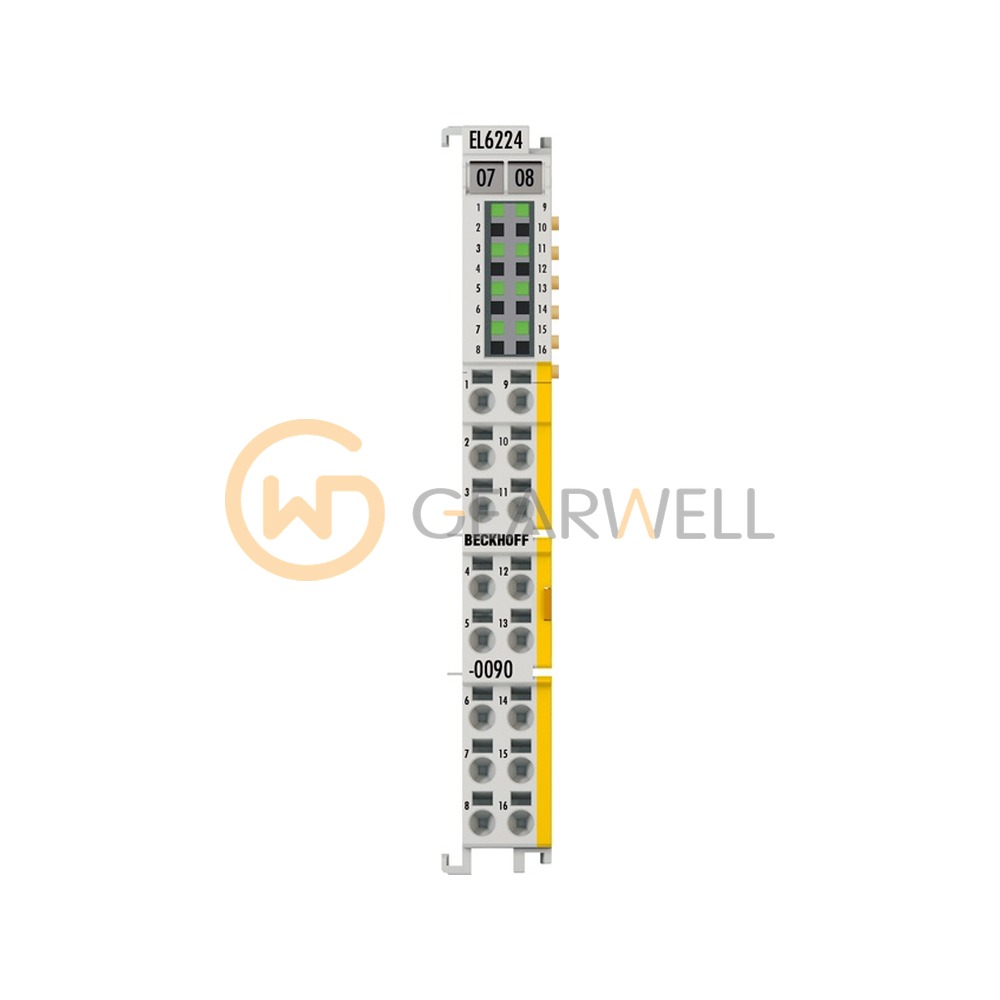

BECKHOFF EL6224-0090 EtherCAT 4-Channel IO-Link Master Terminal
- Brand
- BECKHOFF
- Model
- EL6224-0090
- GEARWELL SKU
- GWP-000008102
- Category
- PLCs & I/O
Key specifications
- Connection
- 3-wire
- Technology
- IO-Link input/output
- Cable length
- max. 20 m
- Power supply
- via E-bus and power contacts
- Field voltage
- 24 V DC via power contacts
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsProduct overview
Beckhoff EL6224-0090 is the TwinSAFE SC version of the EL6224 4-channel IO-Link master terminal for EtherCAT. It connects 3-wire IO-Link devices at 4.8, 38.4 or 230.4 kbaud, with up to 500 mA supply per device. Check the full order number, including any suffix, on the terminal when requesting a quote.
Technical reference
| Product name | BECKHOFF EL6224-0090 EtherCAT 4-Channel IO-Link Master Terminal |
|---|---|
| Brand | BECKHOFF |
| Model | EL6224-0090 |
| Category | PLCs & I/O |
| Connection | 3-wire |
| Technology | IO-Link input/output |
| Cable length | max. 20 m |
| Power supply | via E-bus and power contacts |
| Field voltage | 24 V DC via power contacts |
| Transmission rate | 4.8 kbaud, 38.4 kbaud and 230.4 kbaud |
| IO-Link interfaces | 4 |
| Electrical isolation | 500 V (E-bus/signal voltage) |
