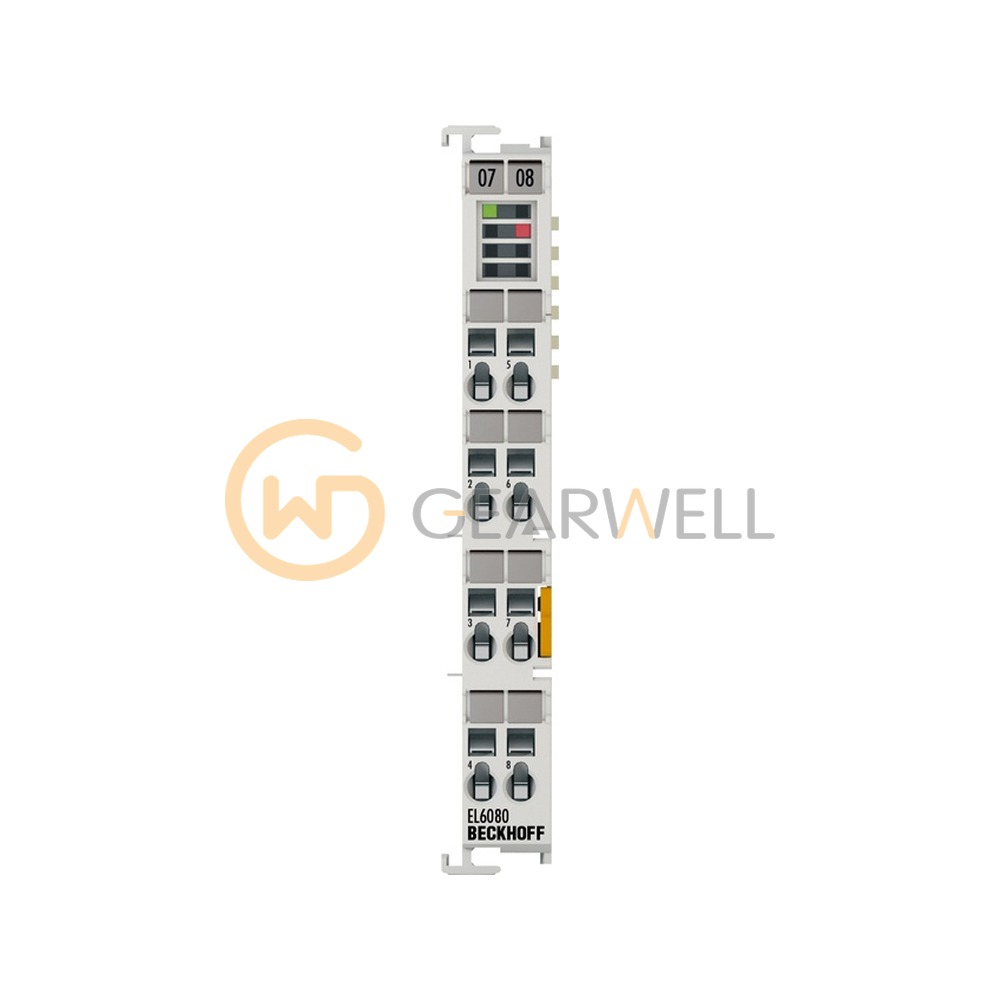

BECKHOFF EL6080 EtherCAT 1-Channel NOVRAM Memory Terminal
- Brand
- BECKHOFF
- Model
- EL6080
- GEARWELL SKU
- GWP-000008100
- Category
- PLCs & I/O
Key specifications
- Memory
- 128 kbyte NOVRAM
- Weight
- approx. 50 g
- Technology
- EtherCAT memory terminal
- Number of write/read
- arbitrary
- Operating temperature
- -25…+60 °C
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsProduct overview
Beckhoff EL6080 is an EtherCAT memory terminal with 128 kbyte of non-volatile memory (NOVRAM) for storing parameters and recipes, with no limit on write/read cycles. Up to 1,280 bytes can be accessed cyclically. Check the full order number, including any suffix, on the terminal when requesting a quote.
Technical reference
| Product name | BECKHOFF EL6080 EtherCAT 1-Channel NOVRAM Memory Terminal |
|---|---|
| Brand | BECKHOFF |
| Model | EL6080 |
| Category | PLCs & I/O |
| Memory | 128 kbyte NOVRAM |
| Weight | approx. 50 g |
| Technology | EtherCAT memory terminal |
| Number of write/read | arbitrary |
| Operating temperature | -25…+60 °C |
| Current consumption E-bus | typ. 130 mA |
| Max. usable memory, cyclic access | 1280 byte |
| Max. usable memory, acyclic access | up to 128 kbyte in max. 8190 byte sized objects, depending on variable structure |
