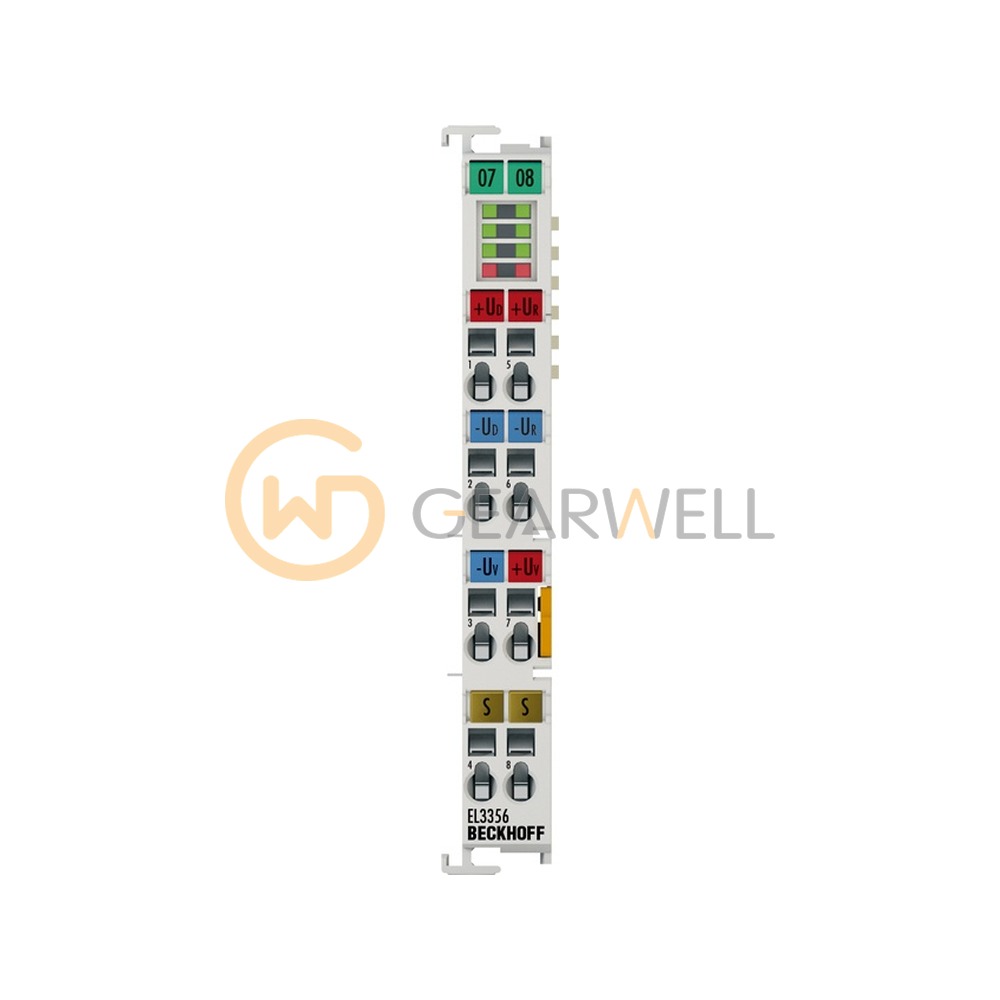

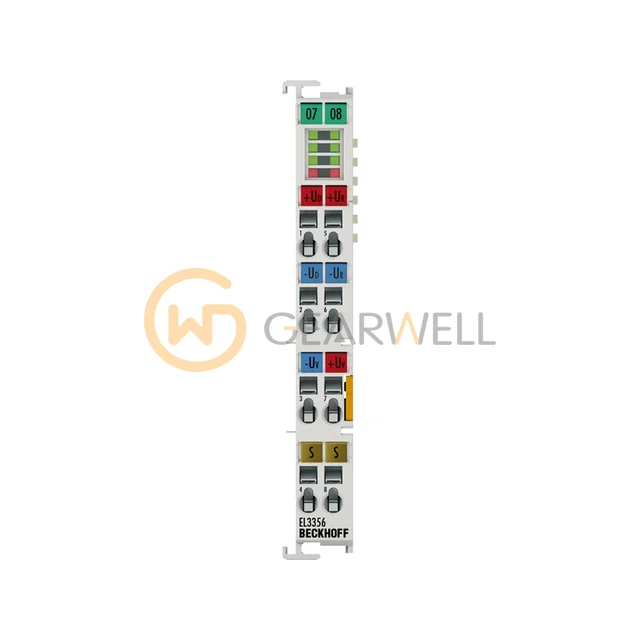

BECKHOFF EL3356 EtherCAT 1-Channel Analog Input Terminal
- Brand
- BECKHOFF
- Model
- EL3356
- GEARWELL SKU
- GWP-000008014
- Category
- PLCs & I/O
Key specifications
- Power supply
- via the E-bus
- Conversion rate
- 100…4 samples/s (10…250 ms conversion time)
- Number of inputs
- 2, for 1 resistor bridge in full bridge technology
- Internal resistance
- > 200 kΩ (U REF ), > 1 MΩ (U D )
- Measuring range U D
- max. ±27 mV
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsProduct overview
Beckhoff EL3356 is an EtherCAT terminal for one resistor bridge or load cell in full-bridge technology, measuring the bridge voltage up to ±27 mV and the reference voltage up to ±13.8 V. It offers 16-bit resolution, 4 to 100 samples/s, self-calibration and dynamic filters. Check the full order number, including any suffix, on the terminal when requesting a quote.
Technical reference
| Product name | BECKHOFF EL3356 EtherCAT 1-Channel Analog Input Terminal |
|---|---|
| Brand | BECKHOFF |
| Model | EL3356 |
| Category | PLCs & I/O |
| Power supply | via the E-bus |
| Conversion rate | 100…4 samples/s (10…250 ms conversion time) |
| Number of inputs | 2, for 1 resistor bridge in full bridge technology |
| Internal resistance | > 200 kΩ (U REF ), > 1 MΩ (U D ) |
| Measuring range U D | max. ±27 mV |
| Measuring range U REF | max. ±13.8 V |
| Supported nominal sensitivity | all, parameter resolution: 0.01 µV/V; recommended: 0.5…4 mV/V |
| Input filter cut-off frequency | 10 kHz low pass (-3 dB) |
