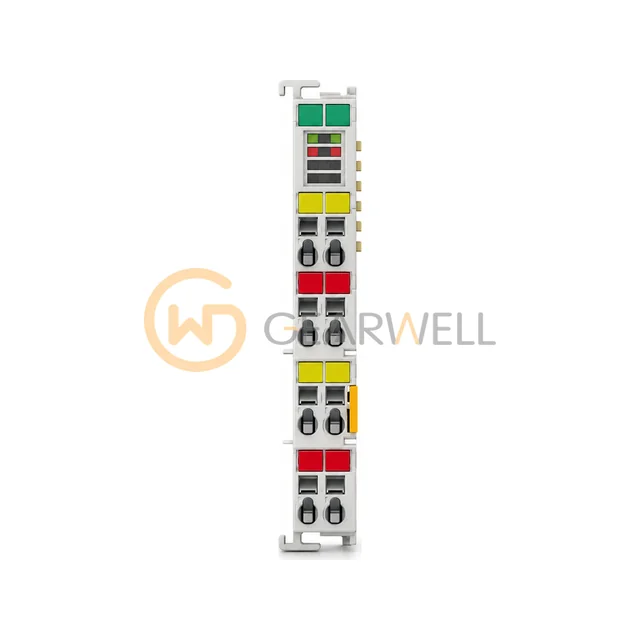

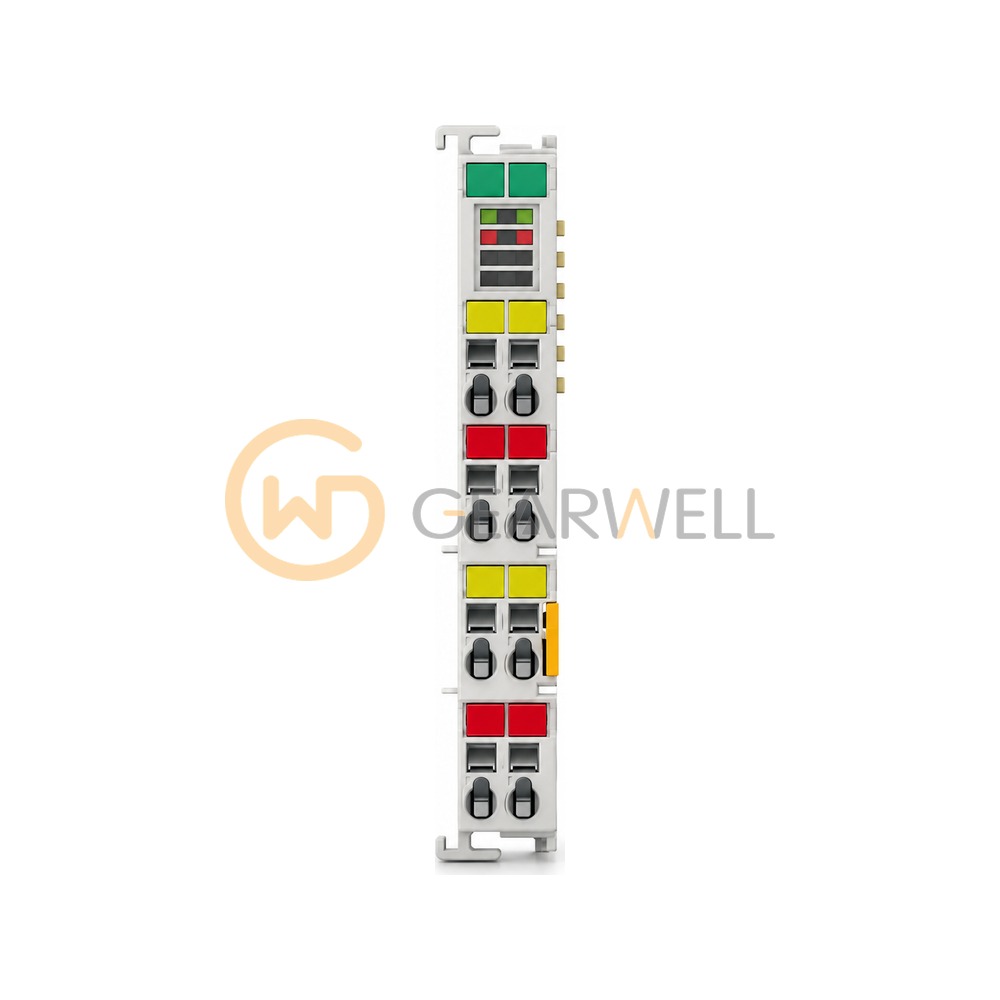

BECKHOFF EL3202-0020 EtherCAT Terminal 2-Channel RTD Input
- Brand
- BECKHOFF
- Model
- EL3202-0020
- GEARWELL SKU
- GWP-000015317
- Category
- PLCs & I/O
Key specifications
- Resolution
- 0.01 °C per digit
- Calibration
- factory calibrated, with calibration certificate
- Sensor types
- Pt100, Pt200, Pt500, Pt1000, Ni100, Ni120, Ni1000, resistance, KTY
- Number of inputs
- 2
- Connection technology
- 4-wire
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsTechnical reference
| Product name | BECKHOFF EL3202-0020 EtherCAT Terminal 2-Channel RTD Input |
|---|---|
| Brand | BECKHOFF |
| Model | EL3202-0020 |
| Category | PLCs & I/O |
| Resolution | 0.01 °C per digit |
| Calibration | factory calibrated, with calibration certificate |
| Sensor types | Pt100, Pt200, Pt500, Pt1000, Ni100, Ni120, Ni1000, resistance, KTY |
| Number of inputs | 2 |
| Connection technology | 4-wire |
| Measurement uncertainty | < ±0.1 °C at 40 °C ambient, 4-wire, Pt100 (-200...+320 °C) |
| Current consumption E-bus | typ. 190 mA |
