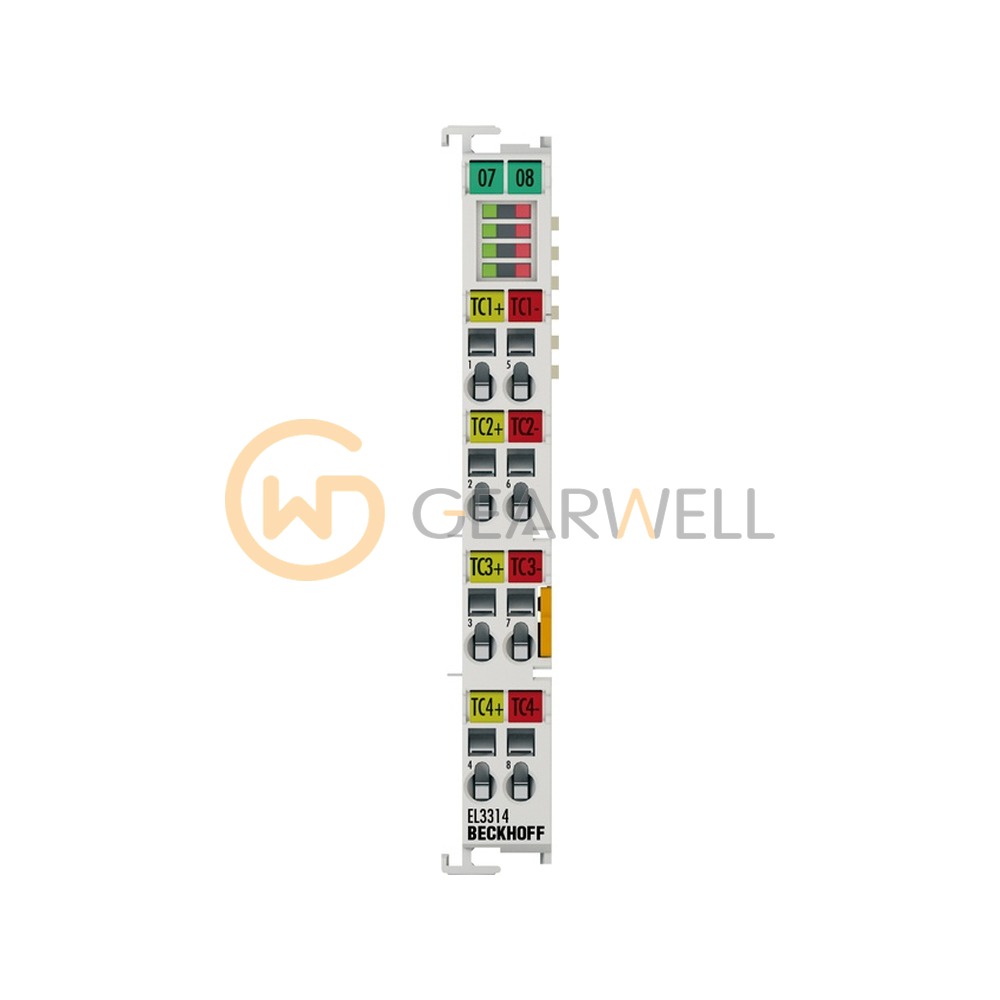

BECKHOFF EL3314 EtherCAT 4-Channel Analog Input Terminal
- Brand
- BECKHOFF
- Model
- EL3314
- GEARWELL SKU
- GWP-000007135
- Category
- PLCs & I/O
Key specifications
- Resolution
- 16 bit, representation adjustable: 0.1/0.01°C or 1/2/4 µV per digit
- Power supply
- via the E-bus
- Number of inputs
- 4
- Voltage measurement
- ±30/±60/±75 mV
- Connection technology
- 2-wire
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsProduct overview
Beckhoff EL3314 is a 4-channel thermocouple input terminal for EtherCAT for types B, C, E, J, K, L, N, R, S, T and U (type K by default), with 16-bit resolution. It can also measure millivolt signals in ±30, ±60 and ±75 mV ranges. Check the full order number, including any suffix, on the terminal when requesting a quote.
Technical reference
| Product name | BECKHOFF EL3314 EtherCAT 4-Channel Analog Input Terminal |
|---|---|
| Brand | BECKHOFF |
| Model | EL3314 |
| Category | PLCs & I/O |
| Resolution | 16 bit, representation adjustable: 0.1/0.01°C or 1/2/4 µV per digit |
| Power supply | via the E-bus |
| Number of inputs | 4 |
| Voltage measurement | ±30/±60/±75 mV |
| Connection technology | 2-wire |
| Input filter cut-off frequency | typ. 1 kHz |
| Temperature measurement (thermocouple) | type B, C, E, J, K, L, N, R, S, T, U (default setting: type K) |
| Measurement uncertainty (voltage measurement) | at ±75 mV, 23°C ambient temperature: < ±0.14% (relative to full scale value) |
