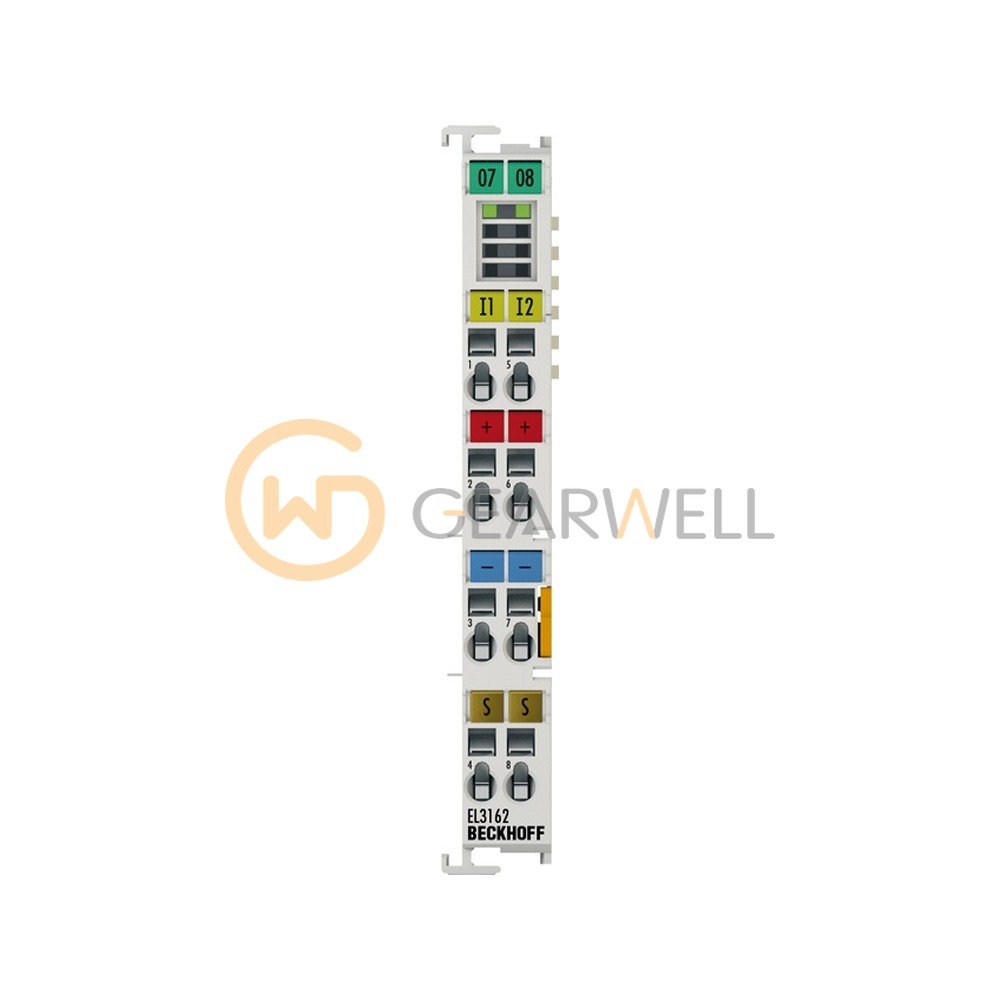

BECKHOFF EL3162 EtherCAT 2-Channel Analog Input Terminal
- Brand
- BECKHOFF
- Model
- EL3162
- GEARWELL SKU
- GWP-000008008
- Category
- PLCs & I/O
Key specifications
- Resolution
- 16 bit (incl. sign)
- Power supply
- via the E-bus
- Conversion time
- ~ 50 µs
- Number of inputs
- 2 (single-ended)
- Dielectric strength
- max. 30 V
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsProduct overview
Beckhoff EL3162 is a 2-channel analog input terminal for EtherCAT for 0 to 10 V single-ended signals, with 16-bit resolution and an error below ±0.3 % of full scale. Conversion takes about 50 µs, distributed clocks are supported, and FIR/IIR filters and limit value monitoring can be activated. Check the full order number, including any suffix, on the terminal when requesting a quote.
Technical reference
| Product name | BECKHOFF EL3162 EtherCAT 2-Channel Analog Input Terminal |
|---|---|
| Brand | BECKHOFF |
| Model | EL3162 |
| Category | PLCs & I/O |
| Resolution | 16 bit (incl. sign) |
| Power supply | via the E-bus |
| Conversion time | ~ 50 µs |
| Number of inputs | 2 (single-ended) |
| Dielectric strength | max. 30 V |
| Internal resistance | > 200 kΩ |
| Measurement error/uncertainty | < ±0.3% (relative to full scale value) |
| Input filter cut-off frequency | 5 kHz |
