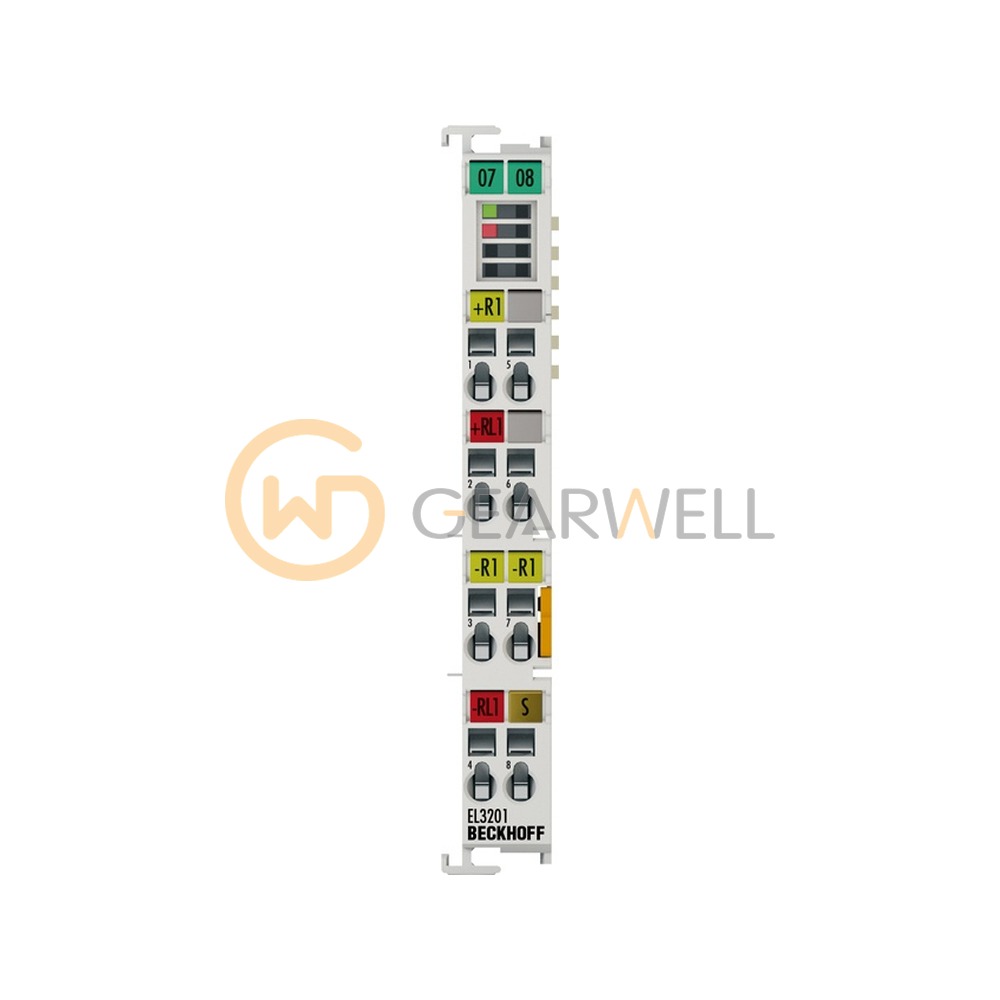

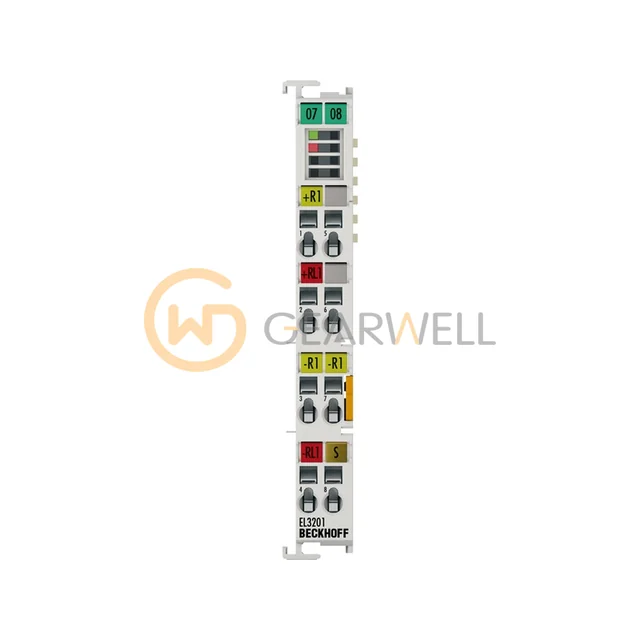

BECKHOFF EL3201 EtherCAT 1-Channel Analog Input Terminal
- Brand
- BECKHOFF
- Model
- EL3201
- GEARWELL SKU
- GWP-000008009
- Category
- PLCs & I/O
Key specifications
- Resolution
- 0.1°C per digit
- Power supply
- via the E-bus
- Conversion time
- approx. 24 ms default setting, 4…500 ms configurable
- Number of inputs
- 1
- Measuring current
- < 0.5 mA (load-dependent)
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsProduct overview
Beckhoff EL3201 is a 1-channel RTD input terminal for EtherCAT for Pt sensors (-200 to +850 °C) and Ni sensors (-60 to +250 °C), with 0.1 °C resolution and an error below ±0.5 °C for Pt sensors. The sensor can be connected in 2-, 3- or 4-wire technology. Check the full order number, including any suffix, on the terminal when requesting a quote.
Technical reference
| Product name | BECKHOFF EL3201 EtherCAT 1-Channel Analog Input Terminal |
|---|---|
| Brand | BECKHOFF |
| Model | EL3201 |
| Category | PLCs & I/O |
| Resolution | 0.1°C per digit |
| Power supply | via the E-bus |
| Conversion time | approx. 24 ms default setting, 4…500 ms configurable |
| Number of inputs | 1 |
| Measuring current | < 0.5 mA (load-dependent) |
| Temperature range | -200…+850°C (Pt sensors); -60…+250°C (Ni sensors) |
| Connection technology | 2-, 3-, 4-wire (default: 2-wire) |
| Input filter cut-off frequency | typ. 1 kHz |
