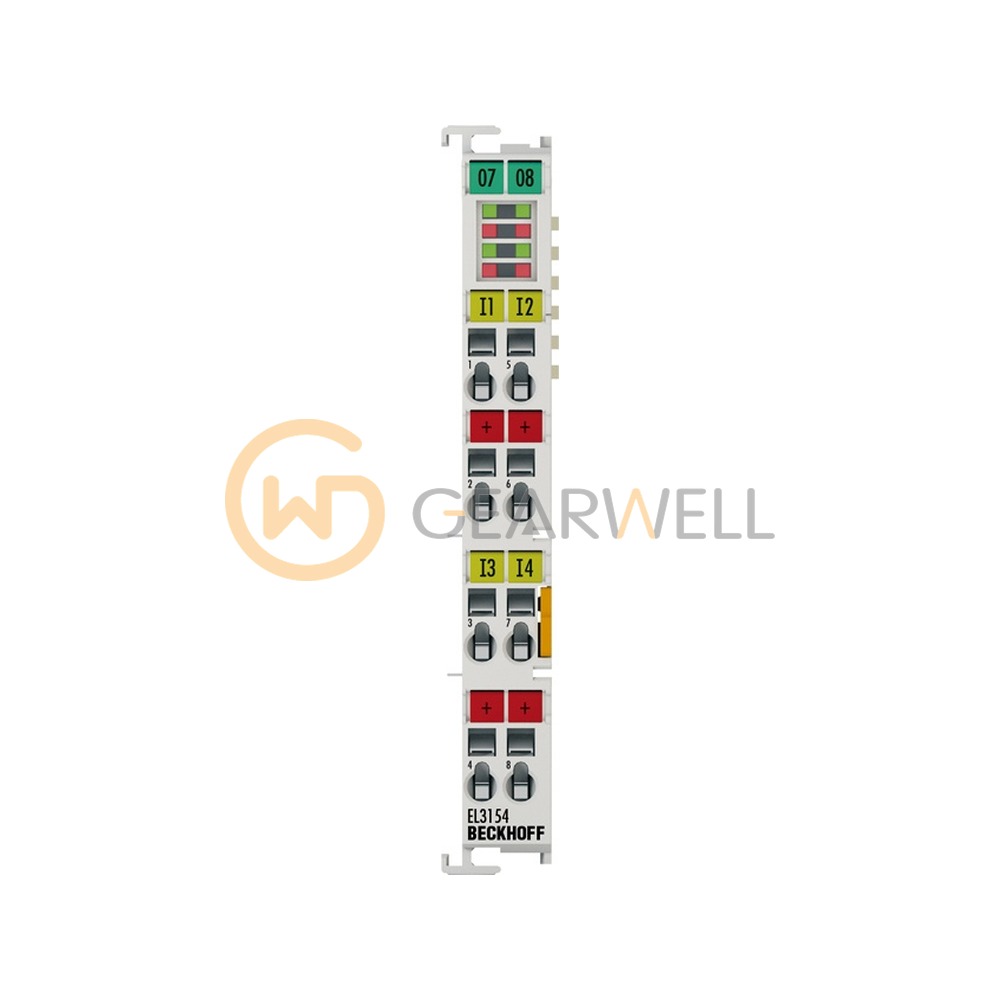

BECKHOFF EL3154 EtherCAT 4-Channel Analog Input Terminal
- Brand
- BECKHOFF
- Model
- EL3154
- GEARWELL SKU
- GWP-000008006
- Category
- PLCs & I/O
Key specifications
- Resolution
- 16 bit (incl. sign)
- Signal current
- 4…20 mA
- Conversion time
- ~ 100 µs
- Number of inputs
- 4 (single-ended)
- Dielectric strength
- max. 30 V
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsProduct overview
Beckhoff EL3154 is a 4-channel analog input terminal for EtherCAT for 4 to 20 mA single-ended signals, with 16-bit resolution and an error below ±0.3 % of full scale. Conversion takes about 100 µs, distributed clocks are supported, and FIR/IIR filters and limit value monitoring can be activated. Check the full order number, including any suffix, on the terminal when requesting a quote.
Technical reference
| Product name | BECKHOFF EL3154 EtherCAT 4-Channel Analog Input Terminal |
|---|---|
| Brand | BECKHOFF |
| Model | EL3154 |
| Category | PLCs & I/O |
| Resolution | 16 bit (incl. sign) |
| Signal current | 4…20 mA |
| Conversion time | ~ 100 µs |
| Number of inputs | 4 (single-ended) |
| Dielectric strength | max. 30 V |
| Internal resistance | typ. 85 Ω + diode voltage |
| Measurement error/uncertainty | < ±0.3% (relative to full scale value) |
| Input filter cut-off frequency | 5 kHz |
