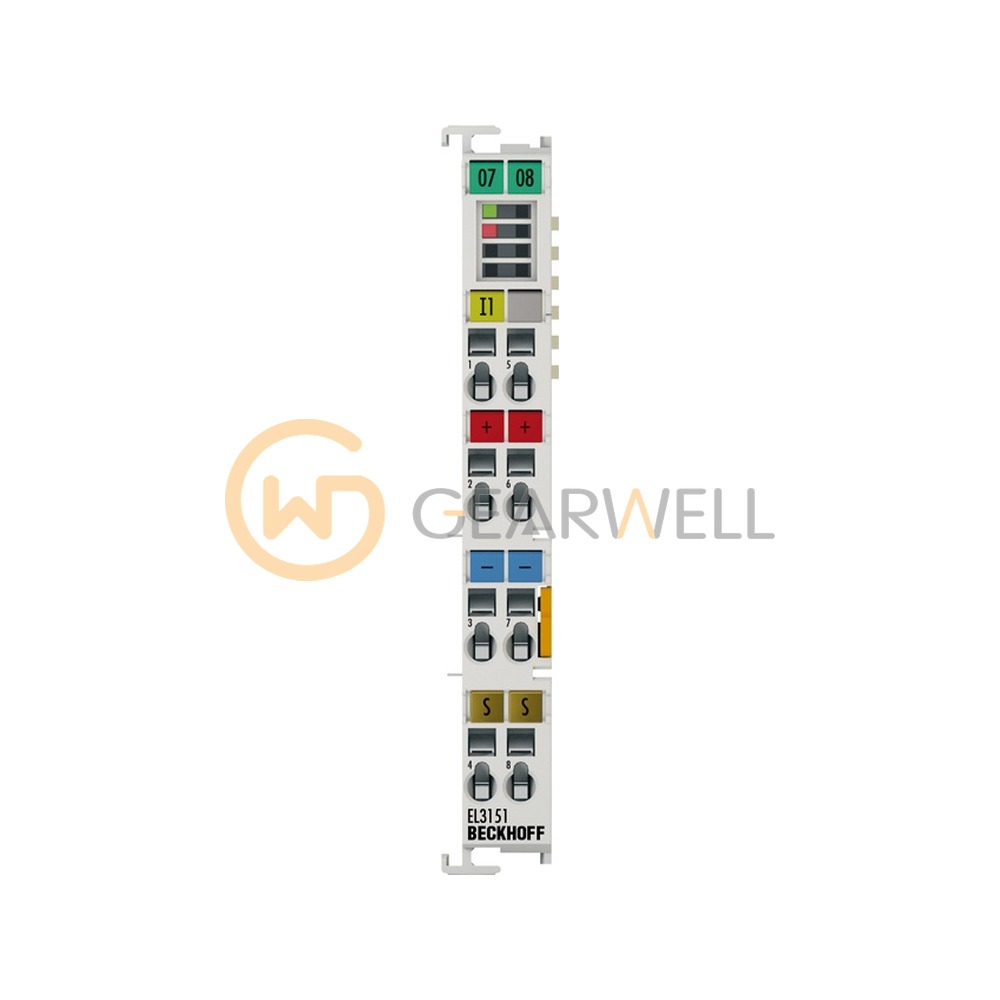

BECKHOFF EL3151 EtherCAT 1-Channel Analog Input Terminal
- Brand
- BECKHOFF
- Model
- EL3151
- GEARWELL SKU
- GWP-000008004
- Category
- PLCs & I/O
Key specifications
- Resolution
- 16 bit (incl. sign)
- Power supply
- via the E-bus
- Signal current
- 4…20 mA
- Conversion time
- ~ 40 µs
- Number of inputs
- 1 (single-ended)
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsProduct overview
Beckhoff EL3151 is a 1-channel analog input terminal for EtherCAT for 4 to 20 mA single-ended signals, with 16-bit resolution and an error below ±0.3 % of full scale. Conversion takes about 40 µs, distributed clocks are supported, and FIR/IIR filters and limit value monitoring can be activated. Check the full order number, including any suffix, on the terminal when requesting a quote.
Technical reference
| Product name | BECKHOFF EL3151 EtherCAT 1-Channel Analog Input Terminal |
|---|---|
| Brand | BECKHOFF |
| Model | EL3151 |
| Category | PLCs & I/O |
| Resolution | 16 bit (incl. sign) |
| Power supply | via the E-bus |
| Signal current | 4…20 mA |
| Conversion time | ~ 40 µs |
| Number of inputs | 1 (single-ended) |
| Dielectric strength | max. 30 V |
| Internal resistance | typ. 85 Ω + diode voltage |
| Input filter cut-off frequency | 5 kHz |
