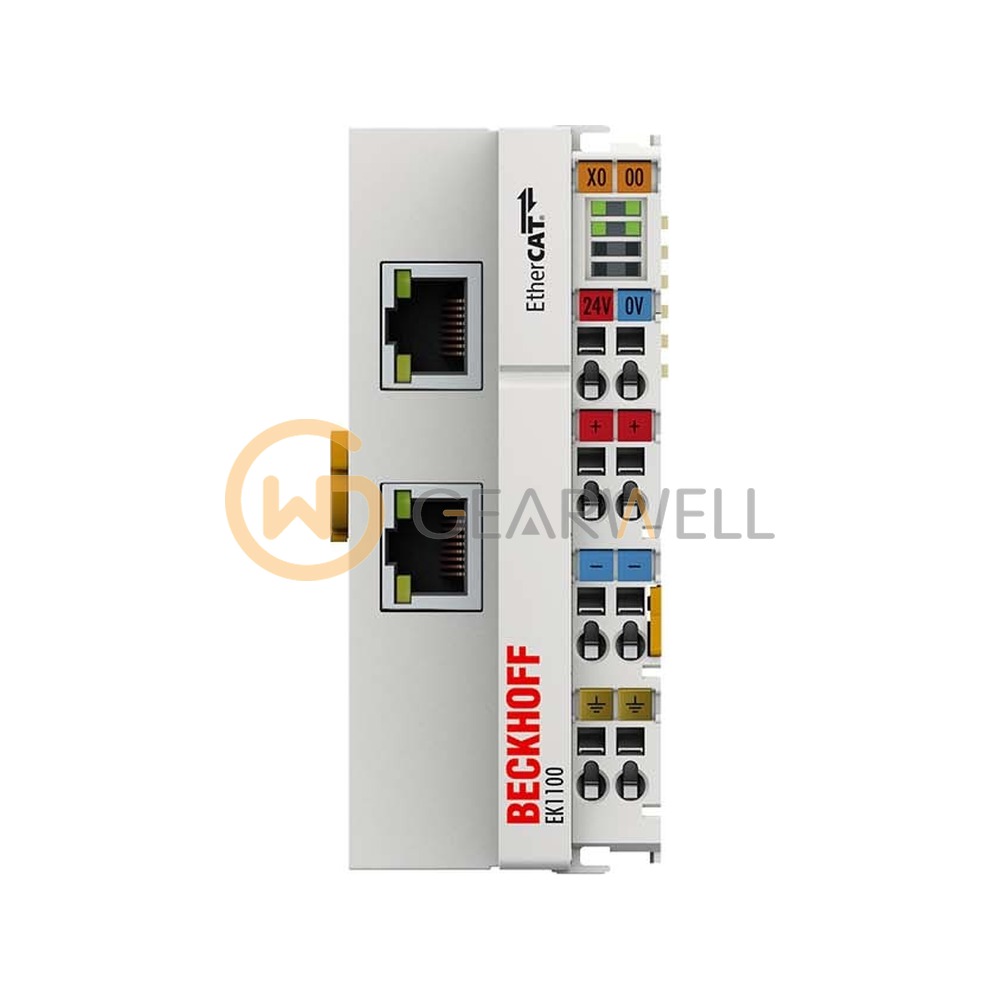

BECKHOFF EK1100 EtherCAT Coupler
- Brand
- BECKHOFF
- Model
- EK1100
- GEARWELL SKU
- GWP-000007896
- Category
- PLCs & I/O
Key specifications
- Protocol
- EtherCAT
- Power supply
- 24 V DC (-15%/+20%)
- Bus interface
- 2 x RJ45
- Propagation delay
- approx. 1 µs
- Transmission rate
- 100 Mbit/s
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsProduct overview
Beckhoff EK1100 is the EtherCAT Coupler that connects a station of EtherCAT Terminals (ELxxxx) to a 100BASE-TX EtherCAT network via 2 x RJ45. It is powered from 24 V DC, supplies up to 2,000 mA to the E-bus and passes up to 10 A through the power contacts. Check the full order number, including any suffix, on the module when requesting a quote.
Technical reference
| Product name | BECKHOFF EK1100 EtherCAT Coupler |
|---|---|
| Brand | BECKHOFF |
| Model | EK1100 |
| Category | PLCs & I/O |
| Protocol | EtherCAT |
| Power supply | 24 V DC (-15%/+20%) |
| Bus interface | 2 x RJ45 |
| Propagation delay | approx. 1 µs |
| Transmission rate | 100 Mbit/s |
| Transmission medium | Ethernet/EtherCAT cable (min. Cat.5), shielded |
| Distance between stations | max. 100 m (100BASE-TX) |
| Number of EtherCAT Terminals | up to 65,534 |
