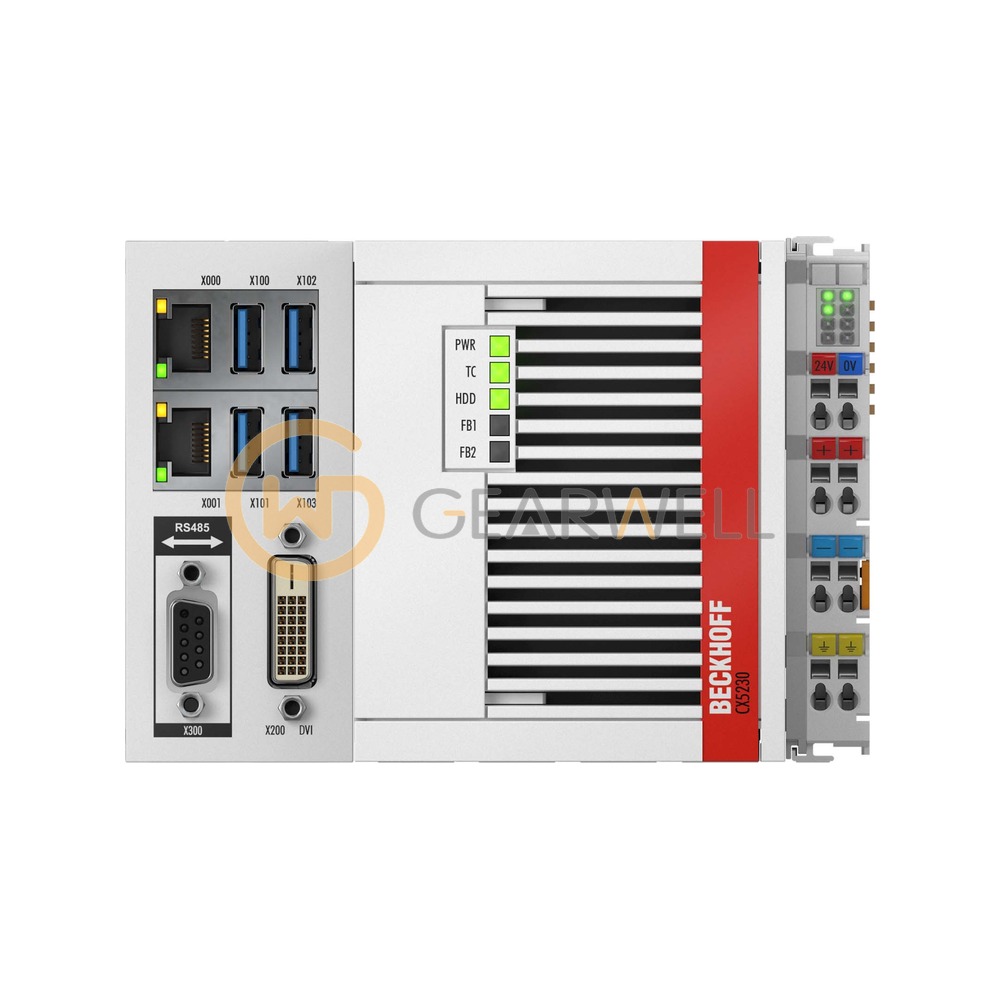

BECKHOFF CX5230 CX5200 Embedded PC
- Brand
- BECKHOFF
- Model
- CX5230
- GEARWELL SKU
- GWP-000011722
- Category
- PLCs & I/O
Key specifications
- Processor
- Intel Atom x5-E3930, 1.3 GHz, 2 cores
- Interfaces
- 2 x RJ45 10/100/1000 Mbit/s, 1 x DVI-D, 4 x USB 3.1, 1 x optional interface
- Main memory
- 4 GB DDR4 RAM
- 1-second UPS
- integrated (1 MB on CFast card)
- Power supply
- 24 V DC (-15%/+20%), electrically isolated
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsProduct overview
Beckhoff CX5230 is a DIN-rail Embedded PC with a 2-core Intel Atom x5-E3930 at 1.3 GHz and 4 GB DDR4 RAM, running TwinCAT 3. It has 2 x Gigabit RJ45, DVI-D and 4 x USB 3.0, an integrated 1-second UPS, and connects to E-bus or K-bus terminals directly. Check the full order number, including the operating system and software options, on the unit when requesting a quote.
Technical reference
| Product name | BECKHOFF CX5230 CX5200 Embedded PC |
|---|---|
| Brand | BECKHOFF |
| Model | CX5230 |
| Category | PLCs & I/O |
| Processor | Intel Atom x5-E3930, 1.3 GHz, 2 cores |
| Interfaces | 2 x RJ45 10/100/1000 Mbit/s, 1 x DVI-D, 4 x USB 3.1, 1 x optional interface |
| Main memory | 4 GB DDR4 RAM |
| 1-second UPS | integrated (1 MB on CFast card) |
| Power supply | 24 V DC (-15%/+20%), electrically isolated |
| Dimensions (W x H x D) | 142 x 100 x 92 mm |
| Max. power consumption | 16 W |
| Operating temperature | -25...+60 °C |
| Operating system / runtime options | CX5230-0100 / -0170 / -0175 / -0185 / -0190 / -0195 (specify on order) |
